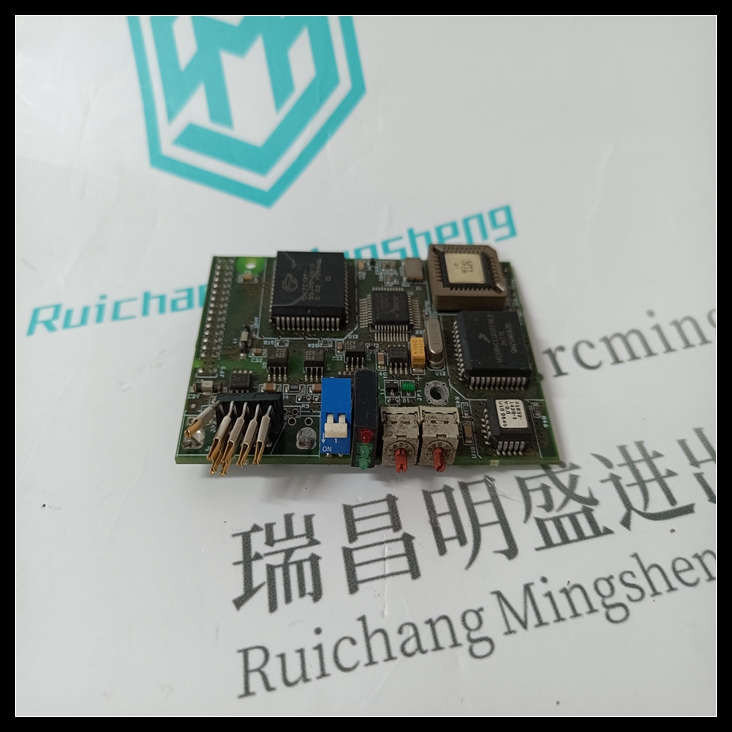

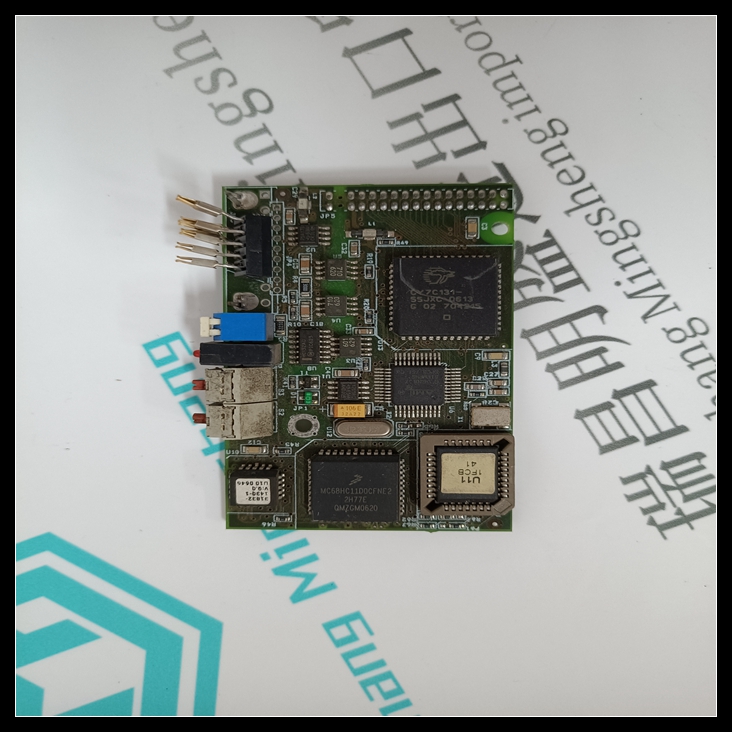

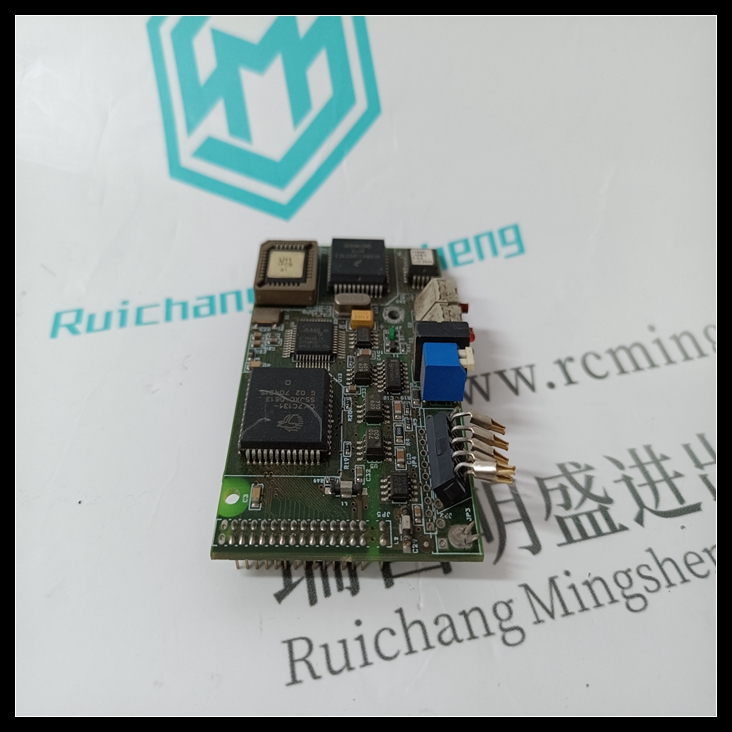

ANYBUS ABDT-PDP模塊,ABDT-PDP卡件
輸入/輸出接線板可安裝在任何方向；首選的垂直方向ABDT-PDP 3183203131
接線端子位于左側，面板安裝腳位于右，如下所示。首選的水平方向是接線端子位于
底部和頂部的安裝腳。
此圖顯示了總體
輸入/輸出端子尺寸塊和位置
面板安裝螺釘
.31英寸
.79厘米
3.25英寸
8.26厘米
端子打開時的位置
左側便于布線
現場控制接線板必須安裝在35mm x 7.5mm DIN導軌上，該導軌成為
接地系統的組成部分。ANYBUS ABDT-PDP模塊DIN導軌表面必須導電。這個
DIN導軌不得涂漆。
DIN導軌應安裝在面板上，以增加抗振性。
安裝在接線板上和安裝在
35mm x 7.5mm DIN導軌為4.0英寸（10.16厘米）。
The I/O Terminal Block can be installed in any orientation; the preferred vertical orientation for
easier wiring installation is with the wiring terminals on the left and the panel-mounting feet on the
right as shown below. The preferred horizontal orientation is with the wiring terminals at the
bottom and the mounting feet at the top.
This diagram shows overall
dimensions of I/O Terminal
Block, and locations for
panel-mounting screws
.31 in
.79cm
3.25in
8.26cm
position with terminals on
left for easier wiring
Field Control terminal blocks must be installed on a 35mm x 7.5mm DIN rail, which becomes an
integral part of the grounding system. The DIN rail finish must be electrically conductive. The
DIN rail must not be painted.
The DIN rail should be mounted on a panel for added vibration resistance.
The overall depth of Field Control modules when mounted on terminal blocks and installed on a
35mm x 7.5mm DIN rail is 4.0 inches (10.16 cm).
