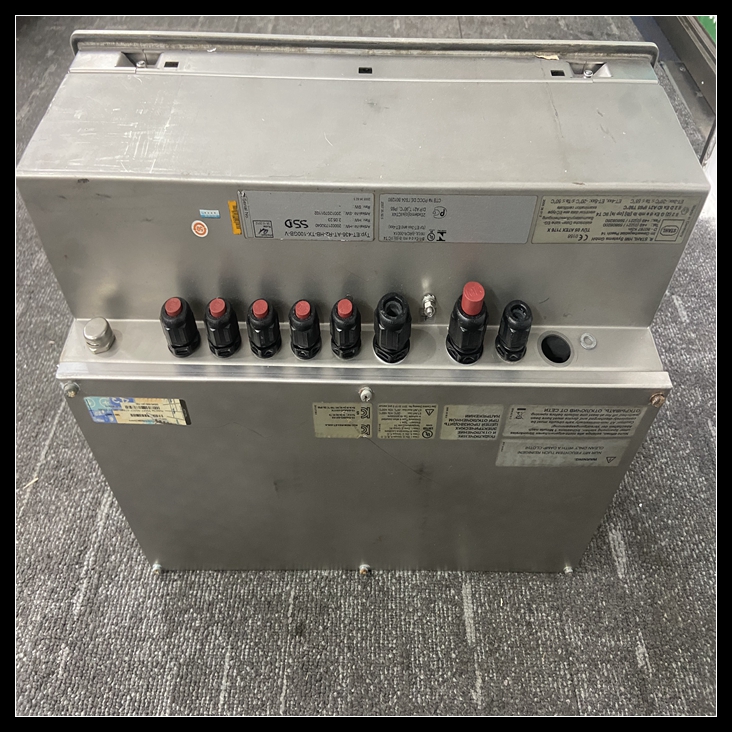

STAHL ET-436-AT-R2-HB-TX-100GB-V機器人模塊
連接到A端子（上圖中標記為NC）是可選的。他們可能是
如下頁所示使用。
帶箱式端子的接線板每個模塊有25個端子，每個端子ET-436-AT-R2-HB-TX-100GB-V顯示屏
可容納一個AWG#14（平均橫截面2.1mm2）到AWG#22（平均橫截面0.36mm2
截面）導線，或兩根AWG#18（平均0.86mm2橫截面）以下的導線。當外部
使用跳線，導線容量從AWG#14（2.10mm2）減小到AWG#16
（1.32mm2）。
帶安全柵端子的輸入/輸出接線板每個模塊有18個端子。每個終端
可容納一條或兩根AWG#14（平均橫截面2.1mm2）以下的電線。
帶連接器的輸入/輸出接線板每個模塊有一個20針公接頭。這個
配對接頭為Amp零件號178289–8。AMP D–3000中的任何鍍錫觸點
該系列可與連接器一起使用（Amp零件號1–175217–5用于高接觸力
20–24號（0.20–0.56mm2）電線插座），1–175218–5用于高接觸力
16-20規格（0.56-1.42mm2）的插座。STAHL ET-436-AT-R2-HB-TX-100GB-V顯示屏
Connection to the A terminals (marked NC in the diagram above) is optional. They can be
used as shown on the next page.
The Terminal Block with box terminals has 25 terminals for each module, each of which
accommodates one AWG #14 (avg 2.1mm2 cross section) to AWG #22 (avg 0.36mm2 cross
section) wire, or two wires up to AWG #18 (avg. 0.86mm2 cross section). When an external
jumper is used, the wire capacity is reduced from AWG #14 (2.10mm2) to AWG #16
(1.32mm2).
The I/O Terminal Block with barrier terminals has 18 terminals per module. Each terminal
can accommodate one or two wires up to AWG #14 (avg 2.1mm2 cross section).
The I/O Terminal Block with Connectors has one 20-pin male connector per module. The
mating connector is Amp part number 178289–8. Any tin-plated contact in the AMP D–3000
series can be used with the connector (Amp part number 1–175217–5 for high contact force
receptacle for 20–24 gauge (0.20–0.56mm2) wires), 1–175218–5 for high contact force
receptacle for 16–20 gauge (0.56–1.42mm2)).
