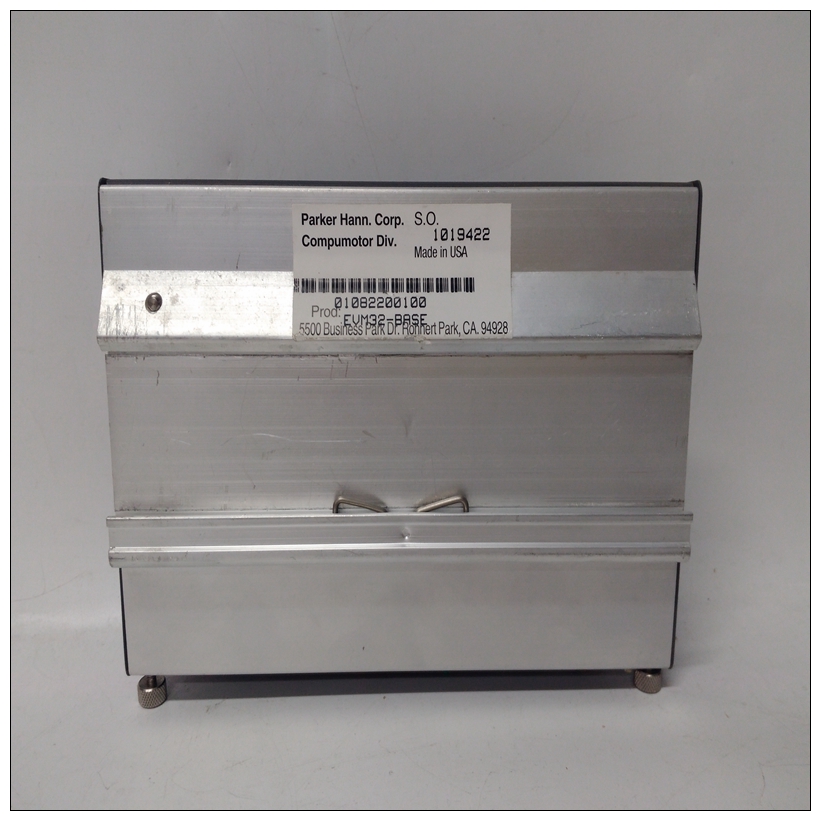

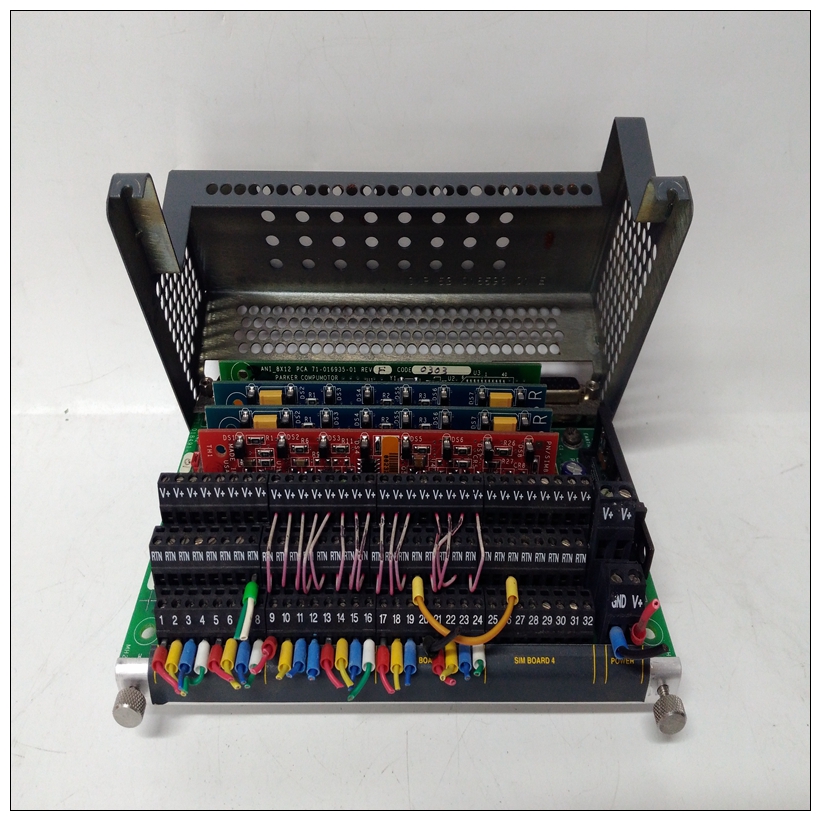

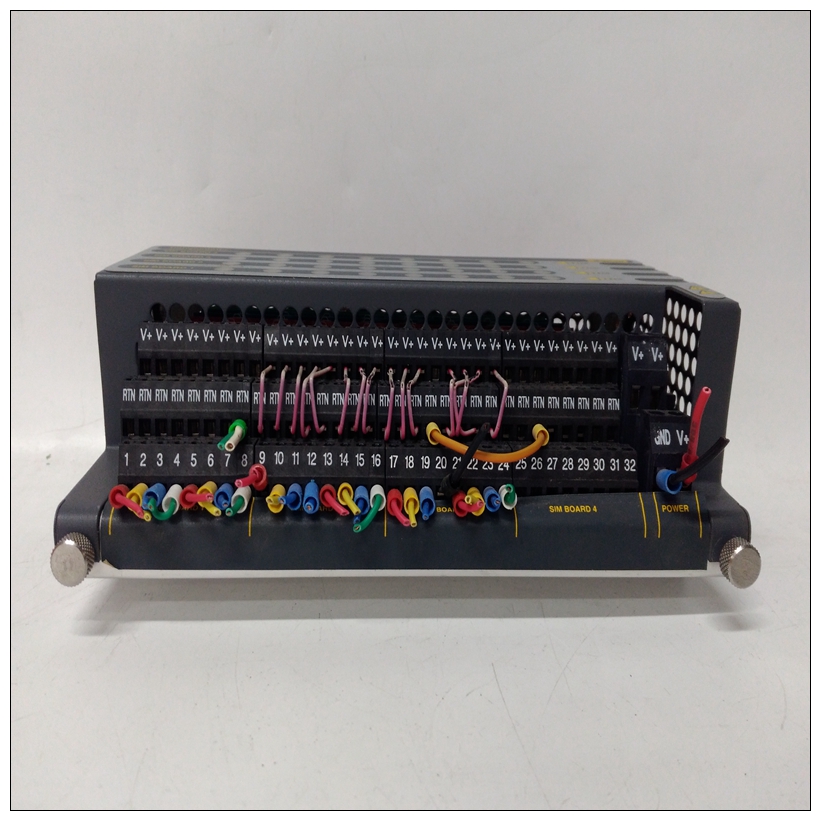

PARKER EVM32-BASE伺服模塊,EVM32-BASE使用流程
通過PlantScape Control Builder配置
如果您使用的是PlantScape系統，請執行以下步驟來配置
SST-PB3-CLX-RLL掃描儀：
1、導航至“程序”>“PlantScape”，打開PlantScape Control Builder工程工具>控件生成器。
2、關閉顯示的其中一個項目窗口。
3、選擇CPM塊。
4、從“工具”菜單中選擇“加載內容”選項。
5、選擇繼續按鈕。
PARKER EVM32-BASE伺服模塊6、選擇項目窗口底部的監控選項卡。
7、選擇CEE。
8、從操作菜單中，選擇激活。從子菜單中，選擇此CEE及其10M和CM選項。
10、在“更改狀態”對話框中選擇“是”。此過程使處理器處于運行狀態模式和SST-PB3-CLX-RLL掃描儀聯機和運行模式。有關詳細信息
有關信息，請參閱霍尼韋爾的PlantScape PROFIBUS實施指南。SST PROFIBUS配置工具窗口由一個主視圖或網絡視圖和兩個
窗格：PROFIBUS設備窗格（設備庫）和在線瀏覽窗格（DP視圖）。
這兩個都是浮動窗格；拖放它們以將其移動到網絡視圖。
Configuring Through PlantScape Control Builder
If you are using the PlantScape System, perform the following steps to configure the
SST-PB3-CLX-RLL scanner:
1. Open the PlantScape Control Builder by navigating to Programs > PlantScape
Engineering Tools > Control Builder.
2. Close one of the project windows that displays.
3. Select CPM block.
4. Select the Load with Contents option from the Tools menu.
5. Select the Continue button.
6. Select the Monitoring tab located on the bottom of the Project window.
7. Select CEE.
8. From the Operate menu, select Activate.
9. From the sub-menu, select the This CEE and its 10M and CM's option.
10. Select YES in the Change State dialog box. This procedure places the processor in Run
mode and the SST-PB3-CLX-RLL scanner online and in Run mode. For detailed
information, refer to Honeywell's PlantScape PROFIBUS Implementation guide.The SST PROFIBUS Configuration Tool window consists of a main or Network view and two
panes: the PROFIBUS Devices pane (Device Library) and the Online Browse pane (DP view).
Both of these are floating panes; drag and drop them to move them anywhere inside the
Network view.
