需要參數/配置
在參數化正確完成之前，這將一直存在。您可能正在使用GSD文件不正確，或者您沒有將從屬和模塊參數設置為正確的值。
通過選擇Ext.Prms檢查從機和模塊參數。從/模塊下的選項卡屬性。
靜態診斷使用RSLogix 5000樣本檢查掃描儀狀態區域中的從屬診斷數據
梯形圖邏輯，其中已包含檢索此的邏輯。寫入xx05（xx=站號）

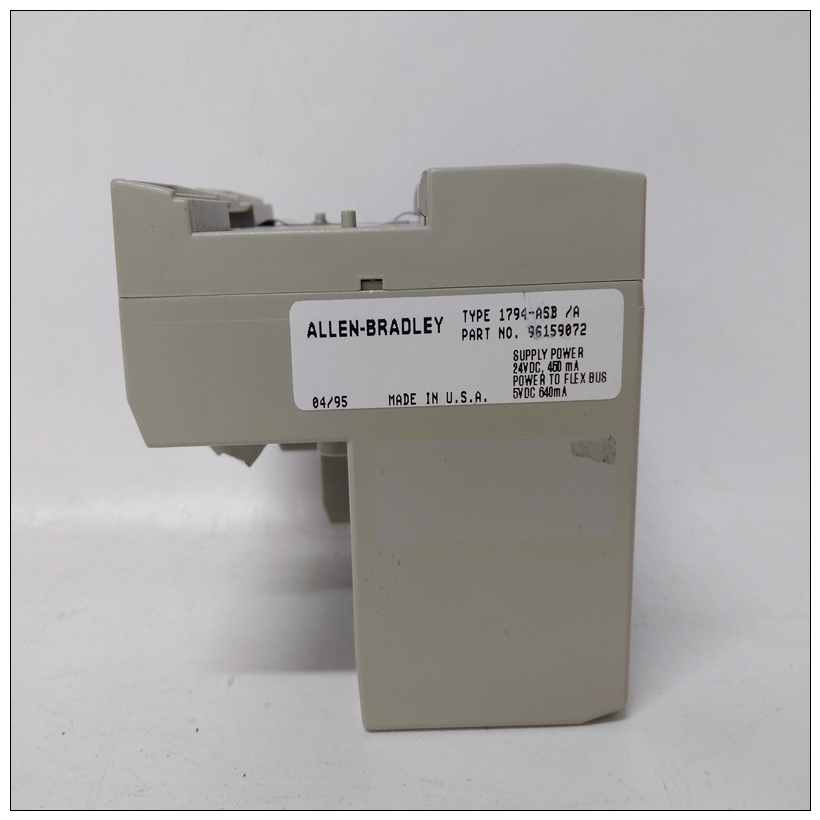

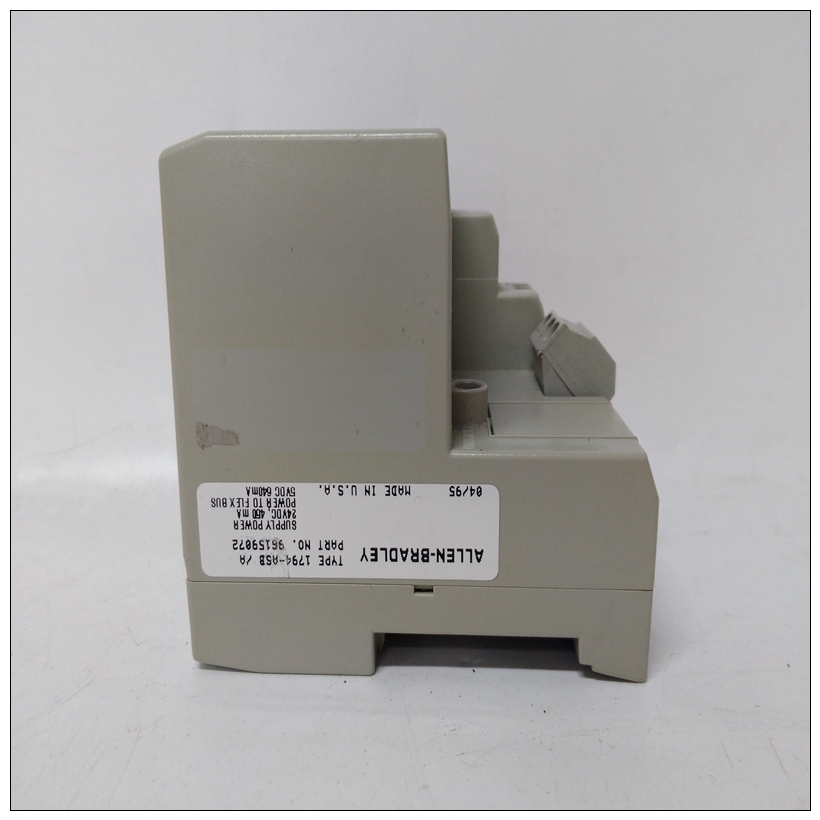

1794-ASB模塊到CMD參數寄存器（Local:Slot:O.Data[1]，AOP標記Local:Slot:O.ModuleControl）。
CMD\u參數）。從診斷顯示，從本地：插槽：S.Data[59]，AOP標記開始SlaveStatus1。
DP從機組這是正常的，由從機設置。
監察人這是正常的，應在從機狀態正常時設置。
Ext Diags溢出從從機返回的診斷數據多于其GSD文件中指定的數據。
您可能使用了錯誤的GSD文件。
Param/Config Required
This remains present until the parameterization has completed properly. You may be using the
incorrect GSD file or you haven't set the slave and module parameters to the correct values.
Check the slave and module parameters by selecting the Ext. Prms. tab under the slave/module’s
properties.
Static Diagnostics
Check your slave diagnostic data in the scanner status area using the RSLogix 5000 sample
Ladder Logic, which already includes the logic to retrieve this. Write xx05 (xx = station number)
to the CMD Argument register (Local:Slot:O.Data [1], AOP tag Local:Slot:O.ModuleControl.
CMD_Argument). The slave diagnostics display, starting at Local:Slot:S.Data [59], AOP tag
SlaveStatus1.
DP Slave Set
This is OK and is set by the slave.
WatchDog
This is OK and should be set when the slave status is OK.
Ext Diags Overflow
More Diagnostic data is being returned from the slave than what is specified in its GSD file.
You may be using an incorrect GSD file.
