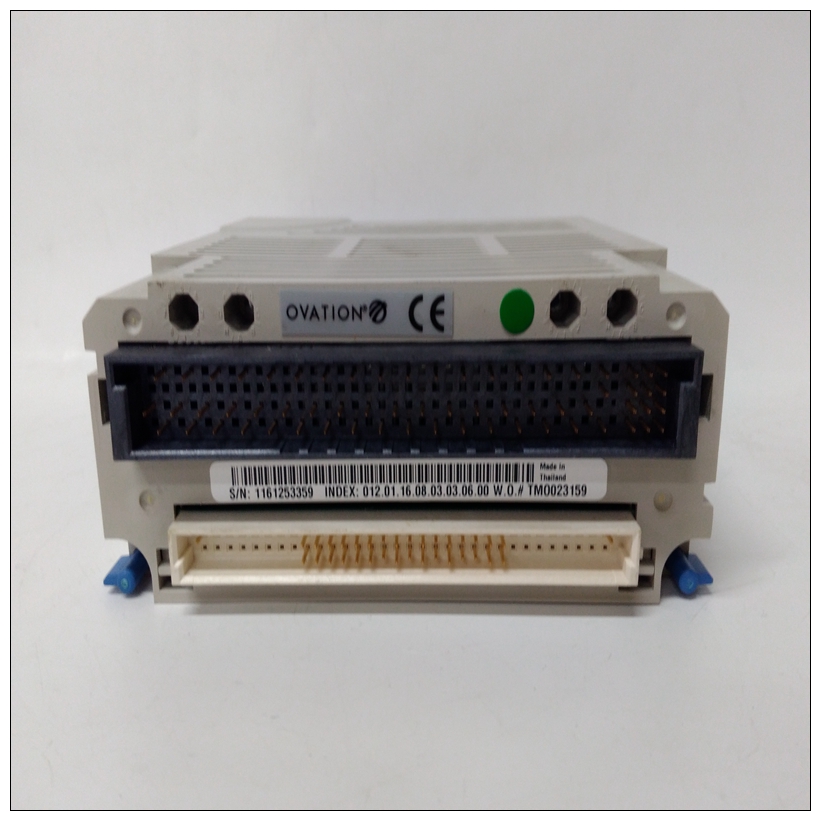

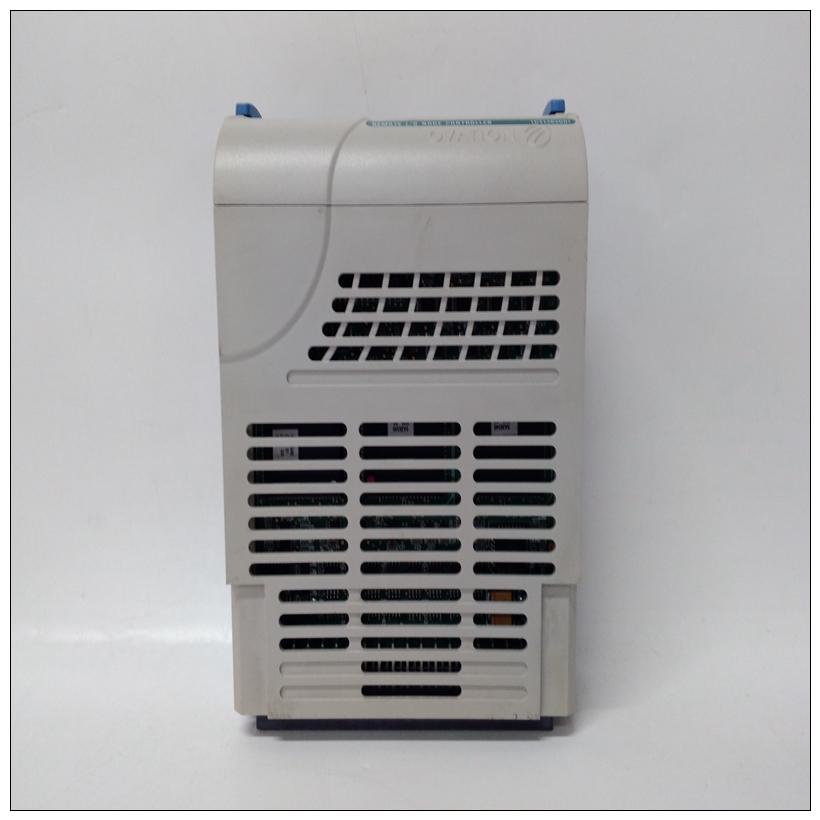

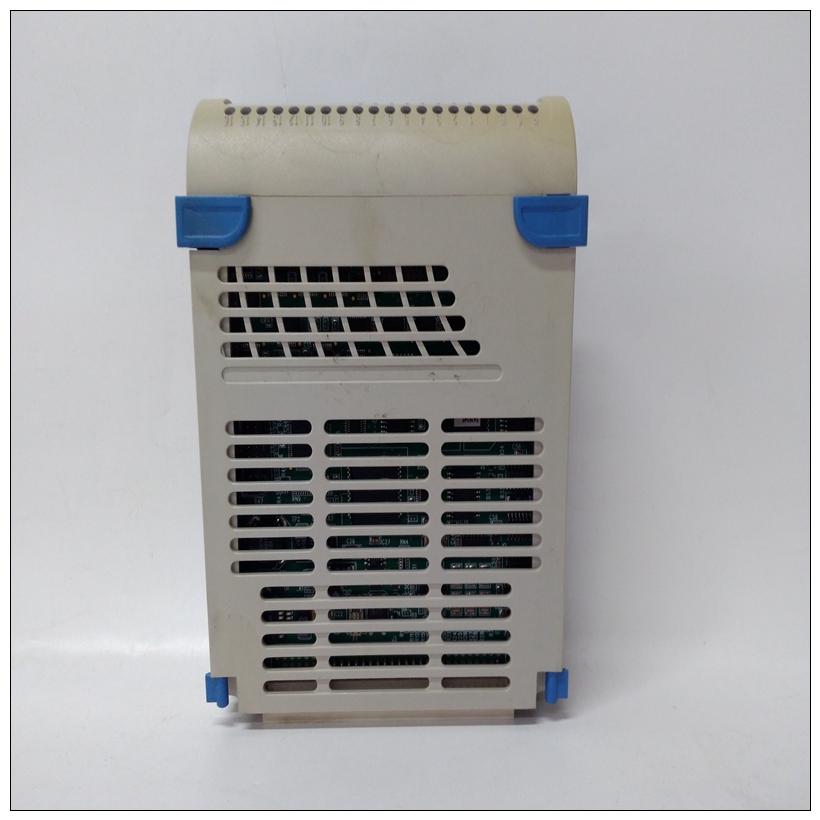

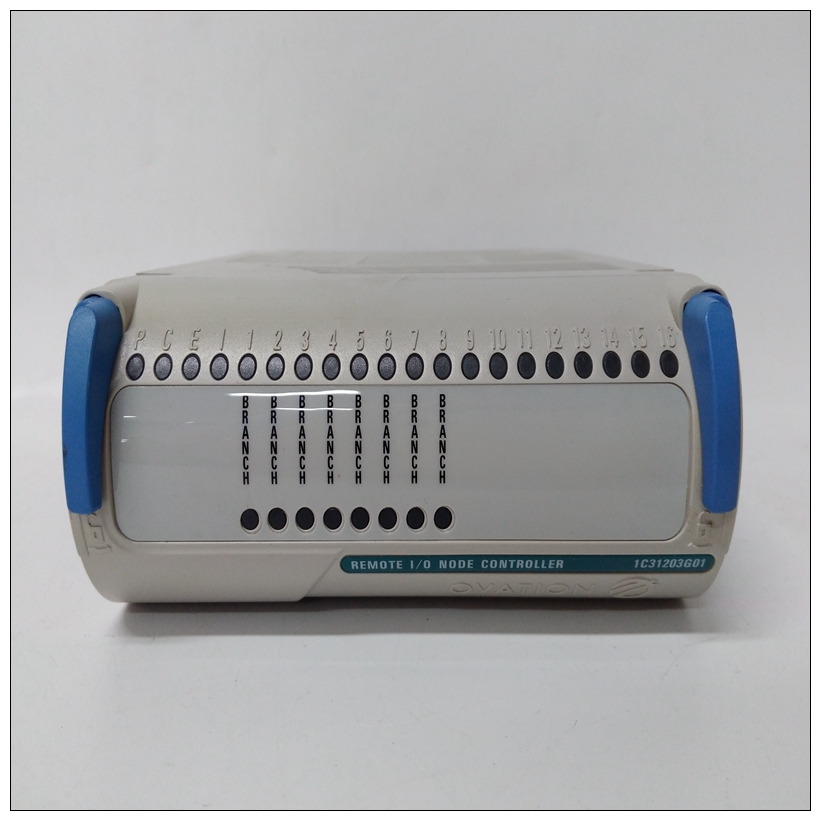

1C31203G01電源模塊,1C31203G01使用配置教程
安裝系統的方式對其功能、準確性和可靠性有更大的影響比你想象的要多。安裝越精確，測量系統就越好。
通過按照本章中的說明，您將滿足正確的機械和電氣安裝。
該設備是一種精密儀器，雖然用于惡劣的操作條件，必須小心處理。
1C31203G01電源模塊2.2安全說明
開始任何安裝之前，請閱讀并遵循第1章中給出的安全說明工作但是，如果更嚴格，應以當?shù)胤ㄒ?guī)為準。推薦布線稱重傳感器和電子裝置之間的電纜和電氣連接必須按照連接圖3BSE028140D0065仔細執行（參見您的稱重傳感器類型的附錄）或根據訂單特定文檔。在接線盒和張力電子設備之間，必須布線信號和勵磁在單獨的電纜中。例如：用于勵磁和屏蔽的2×2.5 mm2電纜稱重傳感器信號用2×2×0.5 mm2雙絞線芯電纜。
1C31203G01使用配置教程?用于兩個以上張力電子設備同步的電纜必須經過屏蔽或扭曲一對
?張力電子設備和儀表或工藝設備之間的信號電纜，必須是屏蔽的0.5 mm2電纜。
?電纜屏蔽必須連接到銅接地棒。屏幕連接最大值長度為50 mm。
?輸入電源的保護接地導體必須連接到機柜中的銅接地棒。
The way you install your system has more influence on its functionality, accuracy and reliability
than you might think. The more accurate the installation, the better the measurement system. By
following the instructions in this chapter, you will fulfill the most important requirements for
proper mechanical and electrical installation.
The equipment is a precision instrument which, although intended for severe operating
conditions, must be handled with care.
2.2 Safety Instructions
Read and follow the safety instructions given in Chapter 1 , before starting any installation
work. However, local statutory regulations, if stricter, are to take precedence. Recommended Cabling
The cabling between the load cells and the electronic unit and electrical connections must be
carefully carried out in accordance with connection diagram 3BSE028140D0065 (See the
appendix for your type of load cell) or according to order-specific documentation. Between the junction box and the tension electronics, signal and excitation must be routed
in separate cables. For example: a 2 × 2.5 mm2 cable for the excitation and a shielded
2 × 2 × 0.5 mm2 cable with twisted pair cores for the load cell signals.
? Cable for synchronization of two of more tension electronics must be screened or a twisted
pair.
? The signal cable between the tension electronics and instruments, or process equipment,
must be a screened 0.5 mm2 cable.
? Cable screens must be connected to the copper earth bar. The screen connection maximum
length is 50 mm.
? The protective earth conductor of the incoming mains supply must be connected to the
copper earth bar in the cubicle.
