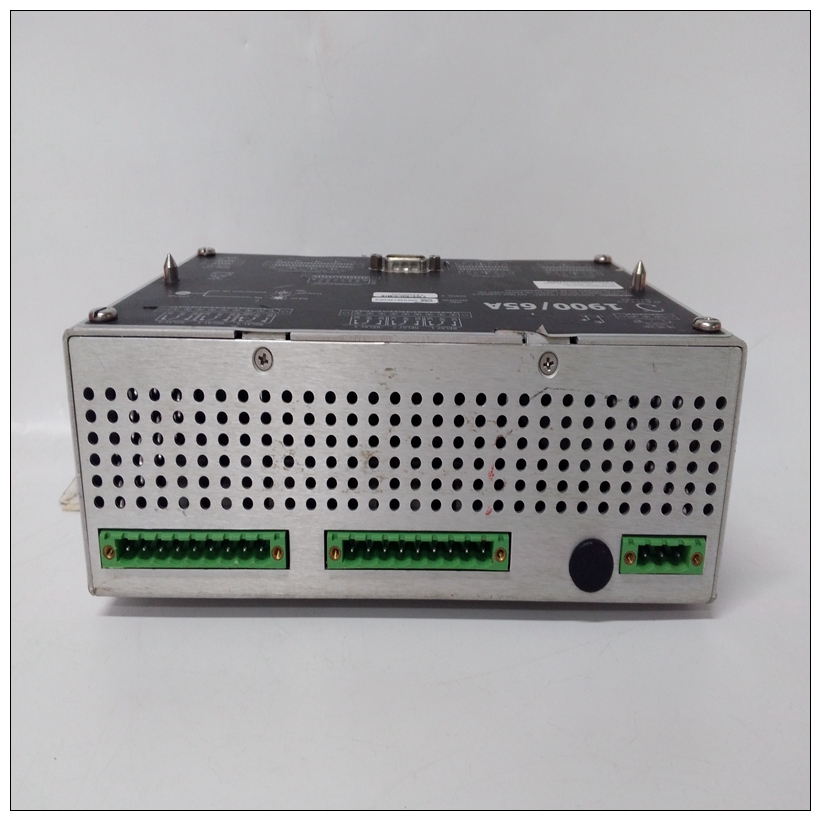

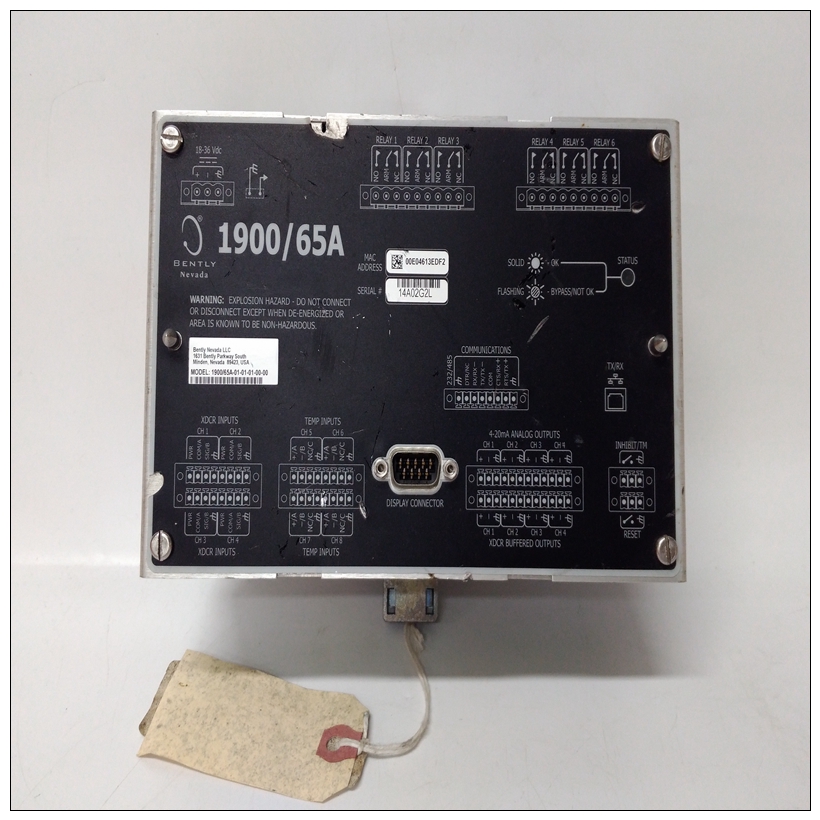

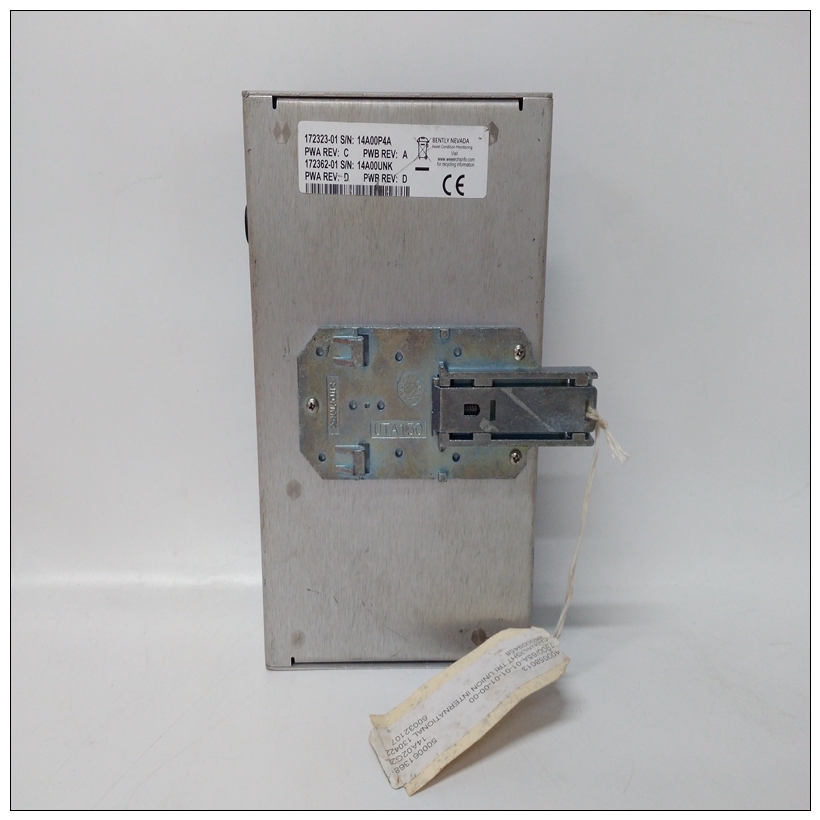

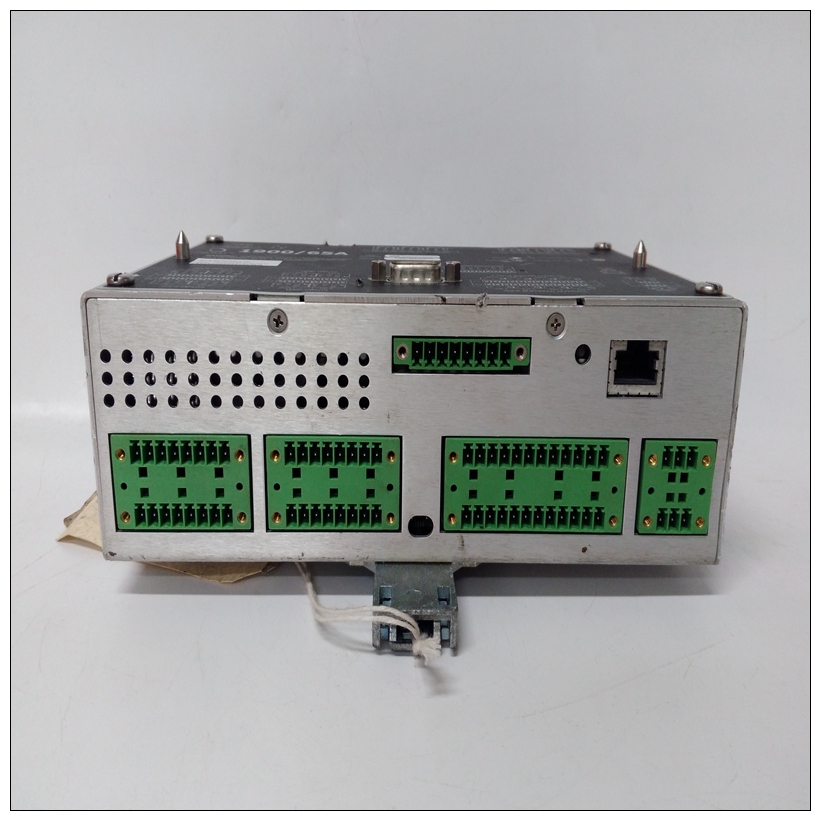

BENTLY 1900/65A-01-01-01-00-00監測器模塊
標準輥（兩個稱重傳感器）
當標準輥（兩個稱重傳感器）連接到張力電子設備：?網絡張力
顯示稱重傳感器A和稱重傳感器B測得的腹板總張力?張力A顯示由稱重傳感器A測量的腹板張力部分
?張力B顯示由稱重傳感器B測量的腹板張力部分
?張力差A(yù)-B顯示張力A和張力B之間的差異
BENTLY 1900/65A-01-01-01-00-00監測器模塊4.7.1.2單側A或單側B測量（一個稱重傳感器）僅連接一個稱重傳感器（單側測量）時，顯示以下菜單
至張力電子設備：?網絡張力腹板張力顯示為單面測量。腹板張力是由連接的稱重傳感器測量的張力乘以2。
4.7.2錯誤和警告信息錯誤是指導致張力電子設備工作不正常的故障。
警告可能會影響測量的準確性。
出現警告或錯誤時，將在上顯示警告或錯誤消息操作員面板和“狀態”指示從綠色變?yōu)榧t色。
按下時，信息從顯示屏上消失。
如果激活警告或錯誤消息的問題已消失“狀態”指示變?yōu)榫G色。
如果錯誤或警告仍然存在，“狀態”指示為紅色。使用到最后一步菜單，從中可以讀取錯誤或警告消息。
有關錯誤和警告消息的處理，請參閱第6章故障跟蹤
Standard Roll (two load cells)
The following menus are available when a standard roll (two load cells) is connected to the
tension electronics:
?
WebTension
Shows the total web tension measured by load cell A and load cell B
?
Tension A
Shows the part of web tension measured by load cell A
?
Tension B
Shows the part of web tension measured by load cell B
?
TensionDiff A-B
Shows the difference between Tension A and Tension B
4.7.1.2 Single Side A or Single Side B measurement (one load cell)
The following menu is shown when only one load cell (single side measurement) is connected
to the tension electronics:
?
WebTension
Web Tension is displayed for single side measurement.
Web tension is the tension measured by the connected load cell multiplied by 2.
4.7.2 Error and Warning Messages
An ERROR is something that causes the tension electronics to function incorrectly.
A WARNING is something that might affect the accuracy of the measurement.
When a warning or an error occurs, a warning or an error message is displayed on the
Operator Panel and the “Status” indication turns from green to red.
When is pressed the message disappears from the display.
If the problem that activated the warning or error message has disappeared the
“Status” indication turns to green.
If the error or warning remains the “Status” indication is red. Use the
to step to the last
menu, where you can read the error or warning message.
For handling Error and Warning messages, see Chapter 6 Fault-tracing
