1.產 品 資 料 介 紹：
中文資料：
GE Multilin 269PLUS-DO-311 是一款先進的電機管理繼電器，專為電力系統中的電機保護和管理設計。它集成了多種功能，提供全面的電機保護、監控和控制。以下是該繼電器的詳細信息：
產品概述
- 型號：269PLUS-DO-311
- 產品類型：電機管理繼電器
主要特點
- 綜合電機保護：提供全面的電機保護功能，包括過載保護、堵轉保護、熱保護、欠壓保護、過壓保護等。
- 實時監控：能夠?qū)崟r監控電機的運行狀態和性能，包括電流、電壓、功率因數等參數。
- 高精度測量：提供高精度的測量和保護功能，確保電機的安全和高效運行。
- 用戶界面：配備直觀的圖形用戶界面（GUI），便于用戶配置、操作和監控。
- 通信能力：支持多種通信協議，如Modbus、DNP3、IEC 61850等，方便與其他設備和系統集成。
技術規格
- 型號：269PLUS-DO-311
- 保護功能：
- 過載保護：檢測并響應電機負載超出設定值的情況。
- 堵轉保護：防止電機在堵轉狀態下運行，減少損壞風險。
- 熱保護：監測電機的溫度，防止過熱。
- 欠壓保護：防止電機在欠壓條件下運行，避免損壞。
- 過壓保護：防止電機在過壓條件下運行，確保系統穩定。
- 數據采集：支持電流、電壓、功率因數等參數的實時采集和分析。
- 顯示與界面：配備高分辨率顯示屏和用戶友好的操作界面。
- 通訊接口：支持多種通信協議，如Modbus、DNP3、IEC 61850等。
- 環境溫度：通常適應0°C到50°C的工作溫度范圍。
- 安裝方式：支持面板安裝或DIN導軌安裝。
應用領域
- 電機保護：用于保護電力系統中的電機，確保其安全運行。
- 工業自動化：在工業自動化系統中提供電機保護和管理功能。
- 建筑電力管理：適用于建筑物內的電機保護和控制，防止設備損壞。
安裝與維護
- 安裝：設備通常通過面板或DIN導軌安裝，具體方式請參考產品手冊。
- 維護：設計簡潔，便于日常維護和檢查。建議定期檢查設備狀態和連接線，確保正常運行。
優勢
- 高性能保護：提供全面的電機保護功能，確保電機的安全和高效運行。
- 靈活性：支持多種保護功能和配置選項，適應不同的電機應用需求。
- 兼容性：支持多種通信協議，便于與其他設備和系統集成。
- 用戶友好：配備直觀的界面和功能，簡化了操作和配置過程。
總結
GE Multilin 269PLUS-DO-311 電機管理繼電器是一款高性能、功能全面的設備，專為電機保護和管理設計。其綜合的保護功能、高精度測量和強大的通信能力使其成為電力系統和工業自動化應用中的理想選擇。
英文資料：
GE Multilin 269PLUS-DO-311 is an advanced motor management relay designed specifically for motor protection and management in power systems. It integrates multiple functions, providing comprehensive motor protection, monitoring, and control. The following is the detailed information of the relay:
Product Overview
Model: 269PLUS-DO-311
Product Type: Motor Management Relay
main features
Comprehensive motor protection: Provides comprehensive motor protection functions, including overload protection, locked rotor protection, thermal protection, undervoltage protection, overvoltage protection, etc.
Real time monitoring: It can monitor the operating status and performance of the motor in real time, including parameters such as current, voltage, power factor, etc.
High precision measurement: Provides high-precision measurement and protection functions to ensure the safe and efficient operation of the motor.
User Interface: Equipped with an intuitive graphical user interface (GUI) for easy user configuration, operation, and monitoring.
Communication capability: Supports multiple communication protocols such as Modbus, DNP3, IEC 61850, etc., making it easy to integrate with other devices and systems.
technical specifications
Model: 269PLUS-DO-311
Protection function:
Overload protection: detects and responds to situations where the motor load exceeds the set value.
Locking protection: prevents the motor from running in a locked state, reducing the risk of damage.
Thermal protection: Monitor the temperature of the motor to prevent overheating.
Undervoltage protection: prevents the motor from operating under undervoltage conditions and avoids damage.
Overvoltage protection: prevents the motor from operating under overvoltage conditions, ensuring system stability.
Data collection: supports real-time collection and analysis of parameters such as current, voltage, and power factor.
Display and Interface: Equipped with a high-resolution display screen and user-friendly interface.
Communication interface: Supports multiple communication protocols, such as Modbus, DNP3, IEC 61850, etc.
Environmental temperature: typically suitable for a working temperature range of 0 ° C to 50 ° C.
Installation method: Supports panel installation or DIN rail installation.
application area
Motor protection: used to protect motors in the power system and ensure their safe operation.
Industrial automation: Provide motor protection and management functions in industrial automation systems.
Building power management: applicable to motor protection and control inside buildings to prevent equipment damage.
Installation and maintenance
Installation: The device is usually installed through a panel or DIN rail. Please refer to the product manual for specific instructions.
Maintenance: The design is simple and easy to maintain and inspect on a daily basis. It is recommended to regularly check the equipment status and connection wires to ensure normal operation.
advantage
High performance protection: Provides comprehensive motor protection functions to ensure the safe and efficient operation of the motor.
Flexibility: Supports multiple protection functions and configuration options to adapt to different motor application requirements.
Compatibility: Supports multiple communication protocols for easy integration with other devices and systems.
User friendly: Equipped with an intuitive interface and features, it simplifies the operation and configuration process.
summary
The GE Multilin 269PLUS-DO-311 motor management relay is a high-performance, comprehensive device designed specifically for motor protection and management. Its comprehensive protection function, high-precision measurement, and powerful communication capability make it an ideal choice for power systems and industrial automation applications.

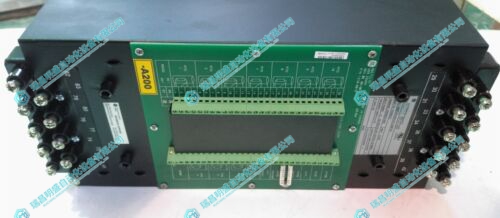

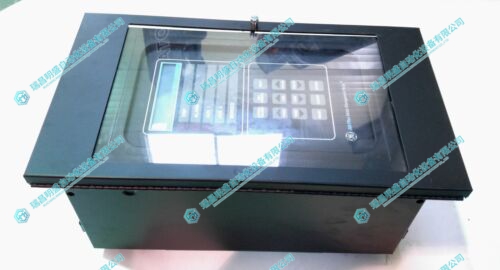

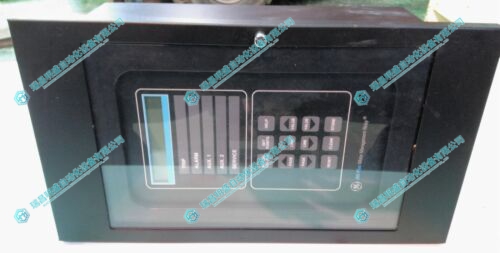

2.產 品 展 示
