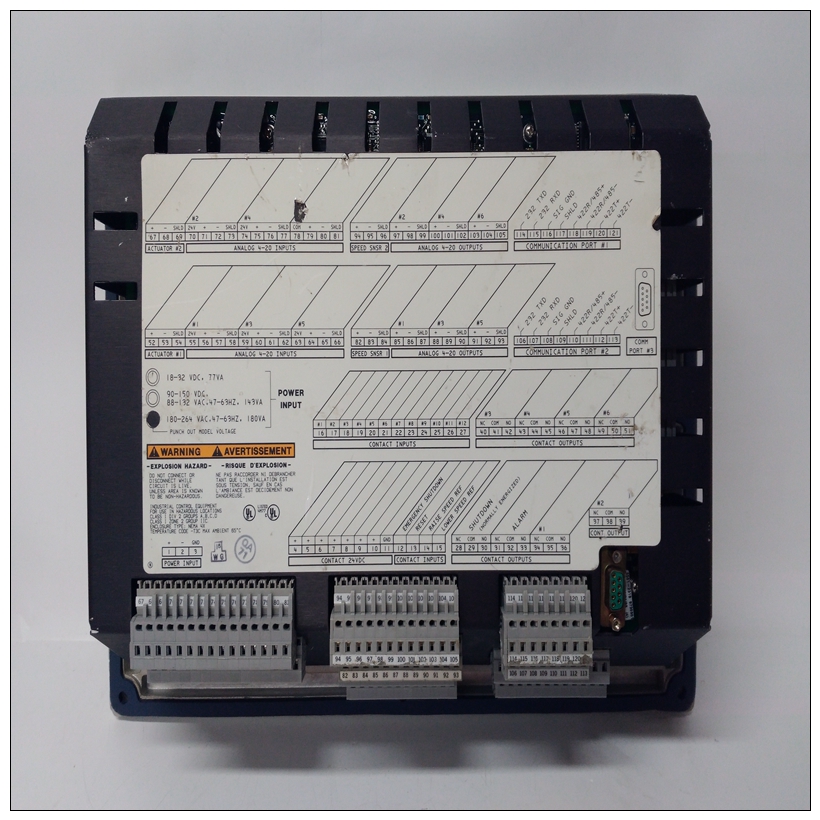

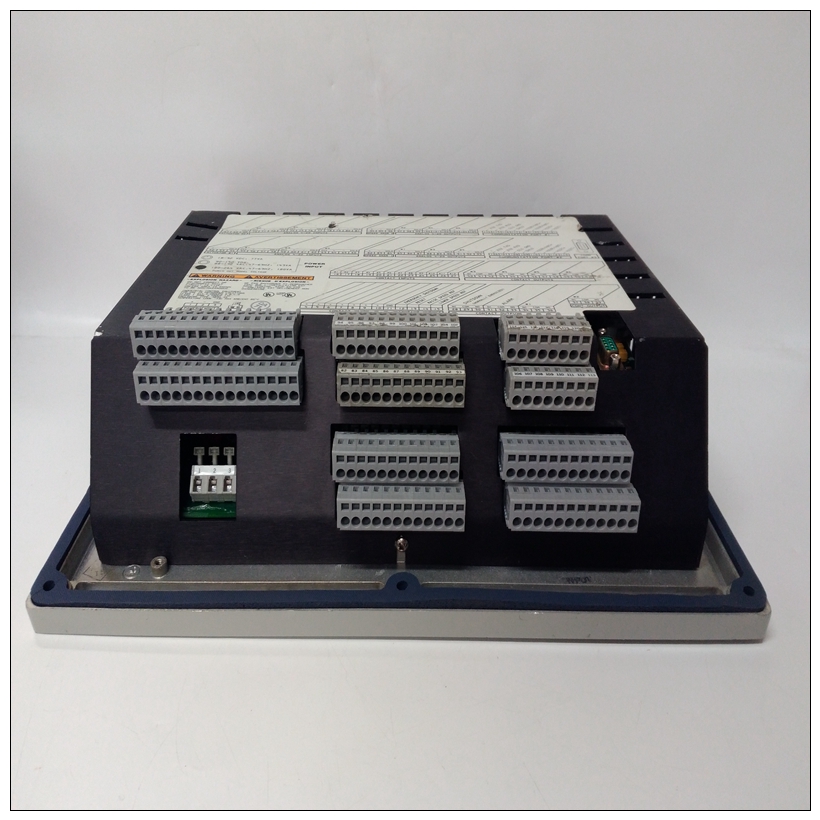

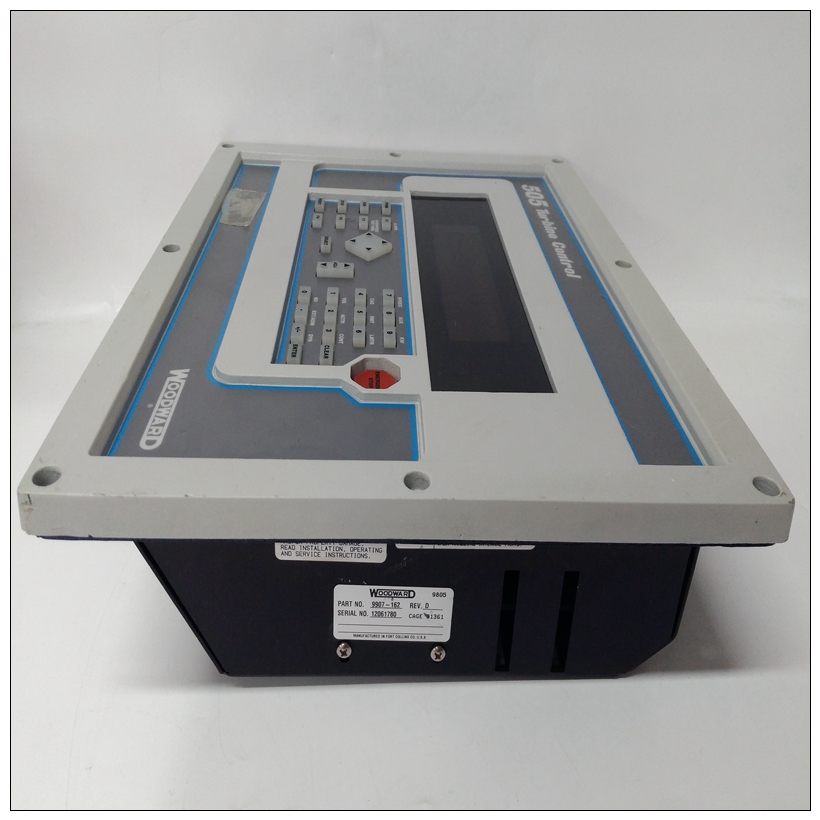

WOODWARD 9907-162調速器,9907-162使用尺寸
如果本節中的跳線和雙列直插式開關設置為功能代碼為55的操作：
1、配置具有功能的多功能處理器代碼55。有關詳細信息，請參閱功能代碼應用手冊有關如何配置功能代碼55的信息。
2、調整解調器增益，校準LVDT變換器，并調整PID控制器增益。有關詳細信息，請參閱第4節解釋如何使用功能進行自動（僅解調器增益）或手動校準和調諧的程序代碼55。
WOODWARD 9907-162調速器功能代碼150配置如果跳線和雙列直插式開關已設置為運行功能代碼150：
1、有關配置說明的信息，請參閱功能代碼應用手冊。
2、使用功能代碼150配置處理器模塊，規范S1和S2。
3、將其余規格保留為默認值。它們需要在模塊校準過程中進行修改。參考附錄B校準LVDT變壓器并使用功能代碼150調整PID控制器增益。
If the jumpers and dipswitches in this section are set up for
operation with function code 55:
1. Configure the multi-function processor with function
code 55. Refer to the Function Code Application Manual for
information on how to configure function code 55.
2. Tune the demodulator gain, calibrate the LVDT trans
former, and tune the PID controller gain. Refer to Section 4 for
procedures explaining how to do either automatic (demodula
tor gain only) or manual calibration and tuning using function
code 55.
FUNCTION CODE 150 CONFIGURATION
If the jumpers and dipswitches have been set up for operation
with function code 150:
1. Refer to the Function Code Application Manual for infor
mation on configuration instructions.
2. Configure the processor module with function code 150,
specifications S1 and S2.
3. Leave the remaining specifications at their default values.
They require modification during the module calibration proce
dure. Refer to Appendix B to calibrate the LVDT transformer
and tune the PID controller gain using function code 150.
