MULTILIN 12P0-0009-A2中央控制器模塊
1.產 品 資 料 介 紹：
中文資料：
MULTILIN 12P0-0009-A2 中央控制器模塊是 GE Multilin 系列中的一個重要組件，用于電力系統中的中央控制和管理。它通常用于變電站、配電網絡和工業電力系統中，以提供集中控制、數據處理和系統集成功能。以下是該中央控制器模塊的詳細信息：
主要功能和特點
中央控制功能
- 集成管理：作為中央控制器，12P0-0009-A2 模塊負責系統的集中管理和協調。它可以集成多個保護、控制和監測設備，形成一個統一的控制平臺。
- 系統協調：協調不同設備和系統之間的操作，確保系統運行的協調性和可靠性。
數據處理與監測
- 實時數據處理：處理來自各種輸入設備的數據，包括電流、電壓、功率等，提供實時的系統狀態信息。
- 事件記錄：記錄系統事件、故障信息和操作日志，為故障排查和系統分析提供數據支持。
- 數據分析：進行數據分析和處理，提供系統性能報告和趨勢分析，幫助優化系統運行。
保護與控制
- 保護功能：支持多種保護功能，如過流、過壓、欠壓、接地故障等，提供對系統的全面保護。
- 自動控制：實現自動化控制功能，如自動重合閘、故障隔離等，提升系統的可靠性和穩定性。
通信接口
- 多種通信協議：支持 Modbus、DNP3、IEC 61850 等多種通信協議，確保與其他系統和設備的兼容性。
- 接口選項：配備以太網、RS-232 和 RS-485 等接口，方便與外部設備進行數據交換和通信。
用戶界面與配置
- 顯示屏：通常配備 LCD 顯示屏，用于顯示系統狀態、參數設置和警報信息。
- 配置工具：提供圖形化配置工具，簡化系統設置和管理，支持用戶進行參數調整和系統配置。
高可靠性和環境適應性
- 工業級設計：符合工業級標準，能夠在各種嚴苛環境條件下穩定運行。
- 寬溫范圍運行：適應不同環境條件的溫度范圍，確保系統的長期穩定性和可靠性。
應用領域
變電站
- 集中控制：用于變電站的集中控制和管理，協調變電站內的各個設備和系統。
- 系統監控：實時監控變電站的運行狀態，確保系統的安全和穩定運行。
配電系統
- 系統集成：集成配電系統中的各種設備，實現集中管理和控制。
- 負荷管理：監測和管理配電系統的負荷情況，優化系統性能和運行效率。
工業電力系統
- 設備控制：集中控制工業電力系統中的關鍵設備，提升系統的自動化水平。
- 數據分析：進行數據分析和報告，幫助優化系統運行和維護。
總結
MULTILIN 12P0-0009-A2 中央控制器模塊是一個功能強大的控制和管理組件，提供集中控制、數據處理、保護和控制功能。其高性能的控制能力、靈活的通信選項和高可靠性設計使其在變電站、配電系統和工業電力系統中具有廣泛的應用價值。
英文資料：
The MULTILIN 12P0-0009-A2 central controller module is an important component in the GE Multilin series, used for central control and management in power systems. It is commonly used in substations, distribution networks, and industrial power systems to provide centralized control, data processing, and system integration functions. The following is the detailed information of the central controller module:
Main functions and features
Central control function
Integrated management: As the central controller, the 12P0-0009-A2 module is responsible for centralized management and coordination of the system. It can integrate multiple protection, control, and monitoring devices to form a unified control platform.
System coordination: Coordinate the operations between different devices and systems to ensure the coordination and reliability of system operation.
Data processing and monitoring
Real time data processing: Processing data from various input devices, including current, voltage, power, etc., to provide real-time system status information.
Event recording: Record system events, fault information, and operation logs to provide data support for troubleshooting and system analysis.
Data analysis: Conduct data analysis and processing, provide system performance reports and trend analysis, and help optimize system operation.
Protection and Control
Protection function: Supports multiple protection functions, such as overcurrent, overvoltage, undervoltage, ground fault, etc., providing comprehensive protection for the system.
Automatic control: Implement automated control functions such as automatic reclosing, fault isolation, etc., to enhance the reliability and stability of the system.
communication interface
Multiple communication protocols: Supports Modbus, DNP3, IEC 61850 and other communication protocols to ensure compatibility with other systems and devices.
Interface options: Equipped with Ethernet, RS-232, RS-485 and other interfaces for convenient data exchange and communication with external devices.
User Interface and Configuration
Display screen: usually equipped with an LCD display screen, used to display system status, parameter settings, and alarm information.
Configuration tool: Provides graphical configuration tools to simplify system settings and management, supporting users to adjust parameters and configure the system.
High reliability and environmental adaptability
Industrial grade design: Complies with industrial grade standards and can operate stably under various harsh environmental conditions.
Wide temperature range operation: Adapt to temperature ranges of different environmental conditions to ensure the long-term stability and reliability of the system.
application area
transformer substation
Centralized control: used for centralized control and management of substations, coordinating various equipment and systems within the substation.
System monitoring: Real time monitoring of the operation status of the substation to ensure the safe and stable operation of the system.
Distribution system
System integration: Integrate various devices in the power distribution system to achieve centralized management and control.
Load management: Monitor and manage the load situation of the distribution system, optimize system performance and operational efficiency.
Industrial power system
Equipment control: Centralize the control of key equipment in industrial power systems to enhance the automation level of the system.
Data analysis: Conduct data analysis and reporting to help optimize system operation and maintenance.
summary
The MULTILIN 12P0-0009-A2 central controller module is a powerful control and management component that provides centralized control, data processing, protection, and control functions. Its high-performance control capability, flexible communication options, and high reliability design make it widely applicable in substations, distribution systems, and industrial power systems.

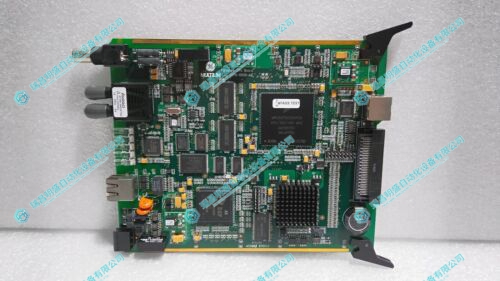

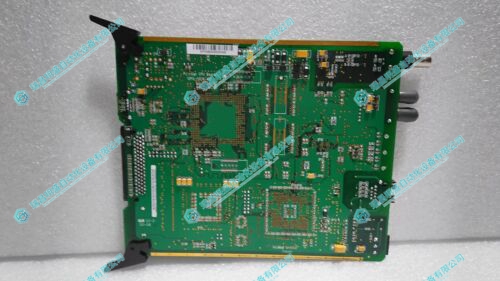

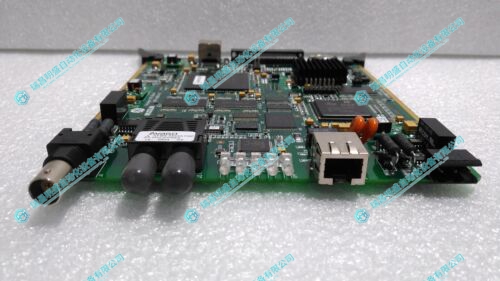

2.產 品 展 示
