Bentley 3500/22M 138607-01瞬態數據接口模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：
Bently Nevada 3500/22M 138607-01 瞬態數據接口模塊是 Bently Nevada 3500 系列機械保護和狀態監測系統中的關鍵組件之一，專門用于收集和傳輸瞬態事件和動態數據。以下是該瞬態數據接口模塊的主要特點、功能和應用領域：
主要特點：
- 高性能數據采集：設計用于捕獲和處理高頻瞬態事件和動態數據，提供精確的狀態監測。
- 實時數據傳輸：能夠?qū)?shí)時數據傳輸?shù)缴衔粰C(jī)或數據存儲設備，確保數據的及時性和準確性。
- 模塊化設計：便于與3500系列其他模塊集成，支持靈活配置和擴展。
- 狀態指示：配備LED指示燈，顯示模塊狀態和活動，便于實時監控和故障診斷。
- 兼容性：與3500系列系統完全兼容，確保無縫集成和一致的系統性能。
功能：
- 瞬態事件捕捉：捕捉和記錄旋轉機械設備運行過程中發生的瞬態事件，如振動、沖擊和其他動態信號。
- 數據傳輸：通過標準通信接口將數據傳輸?shù)缴衔粰C(jī)、數據采集系統或遠程監控系統，便于實時分析和存儲。
- 數據處理：實時處理采集的數據，提供高分辨率和高精度的數據輸出，支持復雜的分析和診斷。
- 系統集成：與3500系列系統中的其他監測和保護模塊無縫集成，提供全面的機械設備監控解決方案。
- 報警和通知：設置報警閾值和條件，當檢測到異常情況時，及時發出報警通知，幫助預防潛在故障。
應用領域：
- 發電廠：監測和記錄發電設備如汽輪機和發電機的瞬態事件，確保設備安全運行和及時維護。
- 石油和天然氣：用于監測和保護壓縮機、泵和其他旋轉設備，檢測瞬態事件以預防設備故障和生產中斷。
- 化工廠：監測化工生產過程中關鍵設備的動態行為，確保過程穩定和產品質量。
- 冶金和采礦：用于監測大型旋轉機械設備的瞬態事件，確保設備的安全性和可靠性。
- 海上平臺：監測海上石油平臺和鉆井設備的瞬態事件，保障海上作業的連續性和安全性。
英文資料：
The Bently Nevada 3500/22M 138607-01 Transient Data Interface Module is one of the key components in the Bently Nevada 3500 series mechanical protection and condition monitoring system, specifically designed to collect and transmit transient events and dynamic data. The following are the main features, functions, and application areas of the transient data interface module:
Main features:
High performance data acquisition: designed to capture and process high-frequency transient events and dynamic data, providing accurate state monitoring.
Real time data transmission: It can transmit real-time data to the upper computer or data storage device, ensuring the timeliness and accuracy of the data.
Modular design: easy to integrate with other modules in the 3500 series, supporting flexible configuration and expansion.
Status indication: Equipped with LED indicator lights to display module status and activity, facilitating real-time monitoring and fault diagnosis.
Compatibility: Fully compatible with 3500 series systems, ensuring seamless integration and consistent system performance.
Function:
Transient event capture: Capture and record transient events that occur during the operation of rotating mechanical equipment, such as vibration, impact, and other dynamic signals.
Data transmission: Data is transmitted to the upper computer, data acquisition system, or remote monitoring system through standard communication interfaces for real-time analysis and storage.
Data processing: Real time processing of collected data, providing high-resolution and high-precision data output, supporting complex analysis and diagnosis.
System Integration: Seamless integration with other monitoring and protection modules in the 3500 series system, providing a comprehensive mechanical equipment monitoring solution.
Alarm and notification: Set alarm thresholds and conditions, and promptly issue alarm notifications when abnormal situations are detected to help prevent potential faults.
Application areas:
Power plant: Monitor and record transient events of power generation equipment such as turbines and generators to ensure safe operation and timely maintenance of the equipment.
Oil and gas: used for monitoring and protecting compressors, pumps, and other rotating equipment, detecting transient events to prevent equipment failures and production interruptions.
Chemical plant: Monitor the dynamic behavior of key equipment in the chemical production process to ensure process stability and product quality.
Metallurgy and mining: used to monitor transient events of large rotating machinery equipment, ensuring the safety and reliability of the equipment.
Offshore platforms: Monitor transient events of offshore oil platforms and drilling equipment to ensure the continuity and safety of offshore operations.

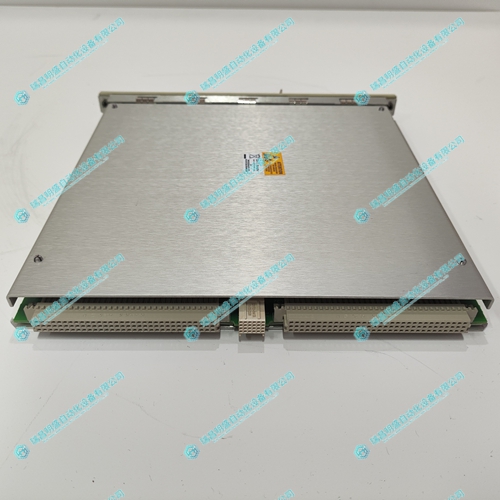

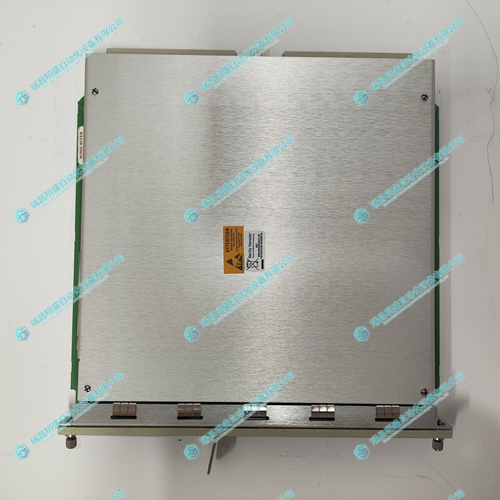

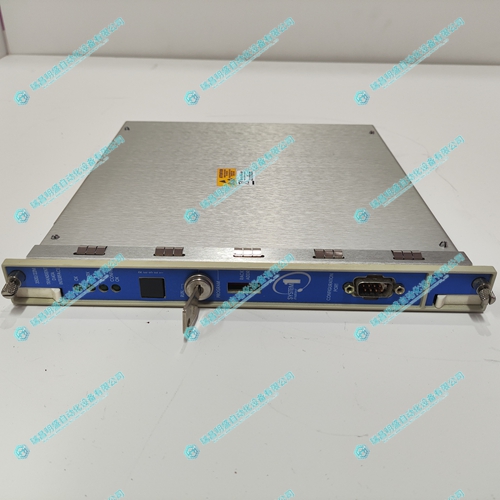

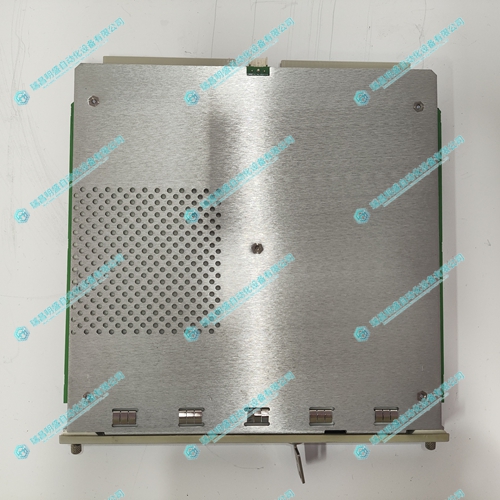

2.產 品 展 示
