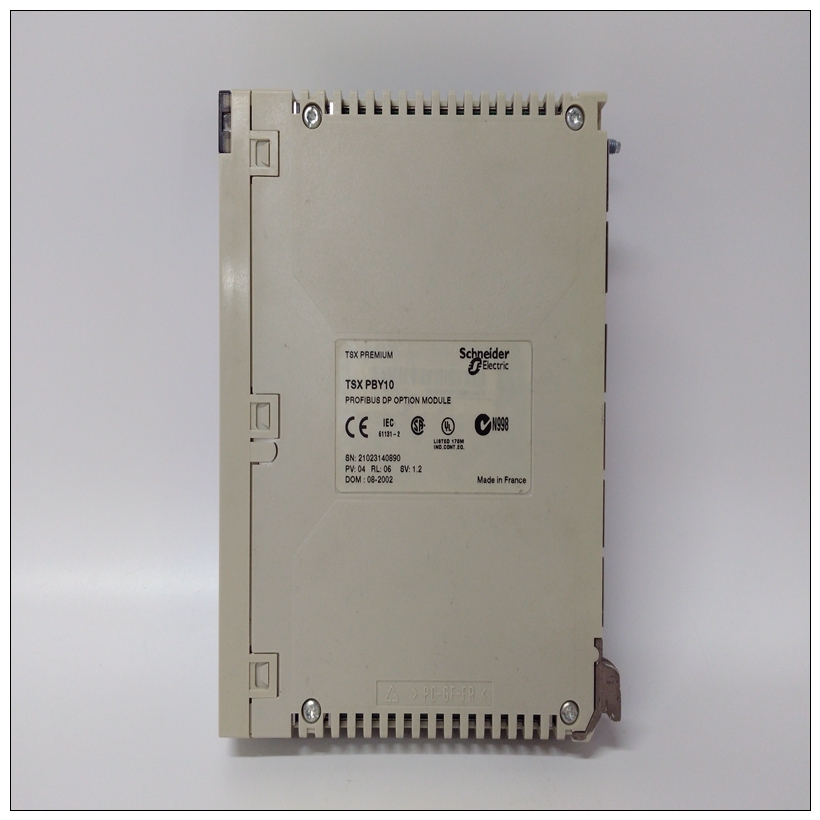

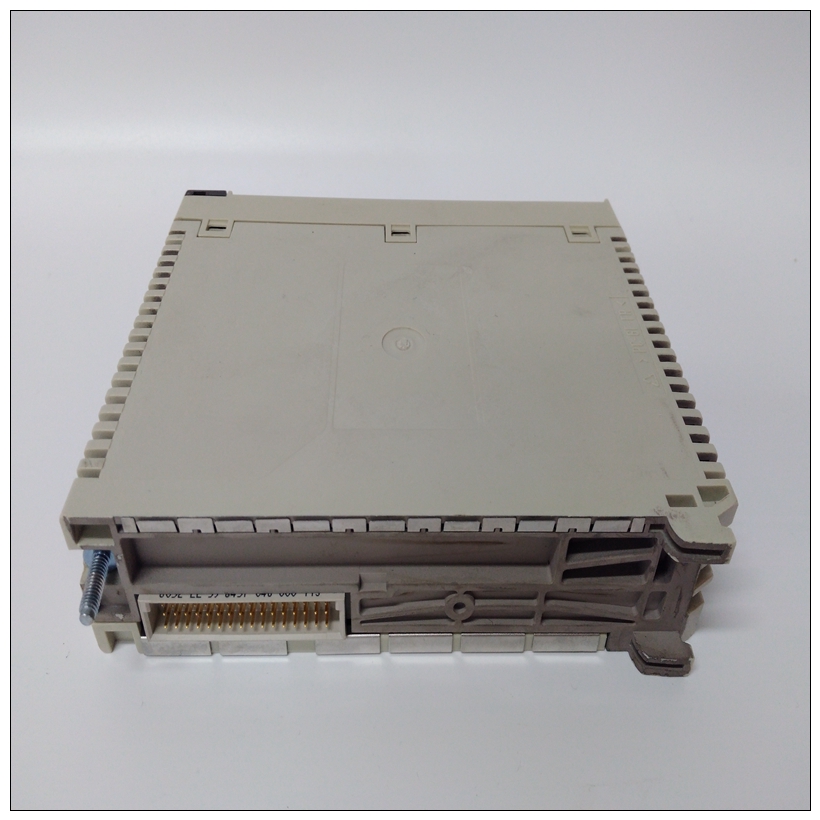

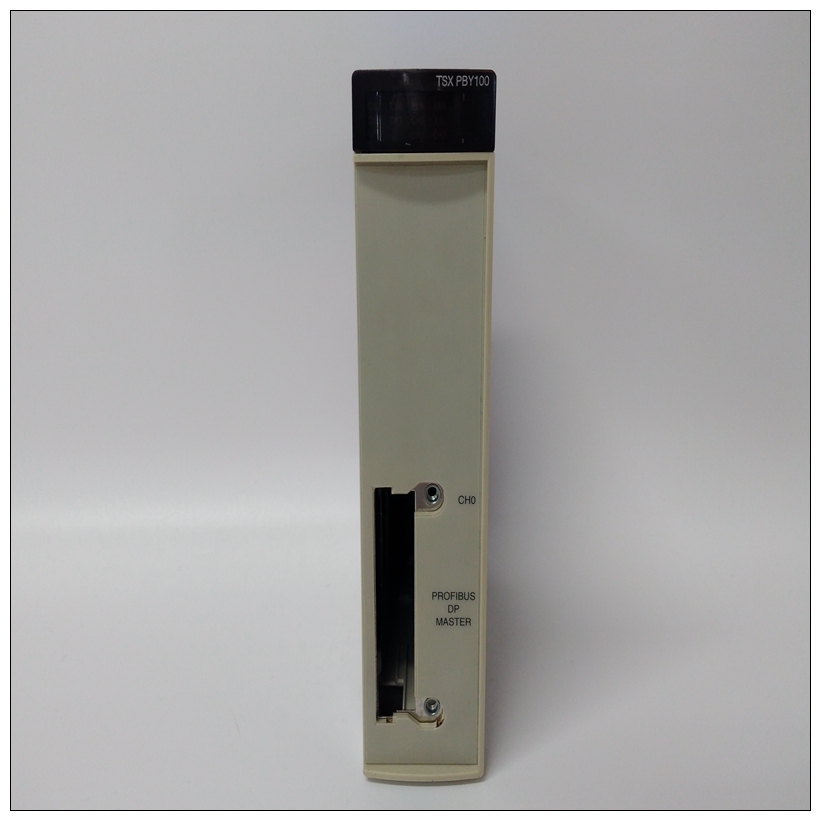

TSXPBY100模塊備件,TSXPBY100使用配置說明
Profibus測量范圍和負載分配可根據用戶進行調整偏好。Profibus測量范圍Profibus測量范圍（正常操作期間估計的腹板張力）是一個參數由用戶輸入。用戶更改測量范圍值后，更換稱重傳感器標稱負載不影響Profibus比例。定義了最低有效位的值作為負荷分配。負荷分配負荷分配是Profibus上使用的分辨率。負荷分配值為由PFEA113計算，取決于設定的測量范圍。
TSXPBY100模塊備件測量范圍在2001-5000范圍內劃分為有限的幾個部分。負荷分割值=一個分割，僅包含一個有效數字（1、2或5）。Profibus可以處理最大–32768到+32767（216）個分區。示例1：a、 Profibus測量范圍（由用戶設置）=15 500 N（正常操作期間估計的腹板張力）b、 由PFEA113計算的負荷分配=5 N（Profibus上最低有效位的值）c、 Profibus測量范圍/負載分配=15500/5=3100（測量范圍分為3100個部分）示例2：如果示例1中的負載分配5 N不夠，則可以調整負載分配。這可以通過將Miscellaneous（其他）菜單中的MeasurengRange設置為（減少）來實現提供足夠負載分配（分辨率）的值。a、 測量范圍=9000 N（新的較低測量范圍設置）b、 由PFEA113計算的新負荷分配=2 N（Profibus上最低有效位的新值）在PFEA113中設置為9000 N時，Profibus測量范圍為0–15500 N（分為7750分區）仍然可以使用，現在負載分區（分辨率）為2 N。通常，無需將測量范圍設置為低于估計腹板的1/3正常操作期間的張力。對于給定的負荷分配，可通過Profibus傳輸?shù)淖畲笾禐椋酣C最大值=負載分區x 32767User Defined Scaling
The Profibus Measuring Range and Load Division can be adjusted according to user
preferences.
Profibus Measuring Range
Profibus Measuring Range (estimated web tension during normal operation) is a parameter
entered by the user. After the user has changed the Measuring Range value, changing Load cell
nominal load does not affect the Profibus scaling. The value of the least significant bit is defined
as Load Division.
Load Division
Load Division is the resolution that will be used on Profibus. The Load Division value is
calculated by PFEA113 and depends on the set measuring range.
The measuring range is divided into a limited number of divisions in the range 2001 - 5000.
The Load Division value = one division, contains only one significant digit (1, 2 or 5).
The Profibus can handle max. –32768 to +32767 (216) divisions.
Example 1:
a. Profibus Measuring Range (set by user) = 15 500 N
(estimated web tension during normal operation)
b. Load Division calculated by PFEA113 = 5 N
(value of least significant bit on Profibus)
c. Profibus Measuring Range/Load Division = 15500/5 = 3100
(the measuring range is divided into 3100 divisions)
Example 2:
If the Load Division, 5 N, in Example 1 is not sufficient, the Load Division can be adjusted.
This can be done by setting (decreasing) MeasuringRange in the Miscellaneous Menu to a
value that gives a sufficient Load Division (resolution).
a. Measuring Range = 9000 N
(New, lower measuring rangesetting)
b. New Load Division calculated by PFEA113 = 2 N
(New value of least significant bit on Profibus)
With the setting 9000 N in PFEA113 , the Profibus measuring range 0 – 15500 N (divided into
7750 divisions) can still be used, now with the Load Division (resolution) 2 N.
Normally, there is no need to set the measuring range lower than 1/3 of the estimated web
tension during normal operation.
The max. value that can be transmitted via Profibus, for a given Load Division, is:
– Max. value = Load Division x 32767
