531X305NTBAJG1 驅動控制端子板 PDF資料
1.產 品 資 料 介 紹：
中文資料：
531X305NTBAJG1 是 驅動控制端子板（Drive Control Terminal Board），用于通用電氣（GE）驅動控制系統中。它是工業驅動系統的重要組件，提供接口和連接功能，用于將信號傳遞到系統的不同部分。該端子板通過提供接線端子來連接外部設備和控制電路，使驅動系統能精確控制電動機的操作。
主要特點：
- 型號: 531X305NTBAJG1
- 用途: 主要用于驅動控制系統中的信號傳輸和連接，提供與外部設備的接口。
- 電氣接口: 提供多個接線端子，方便連接外部傳感器、控制設備、輸入輸出信號等。
- 安裝方便: 該端子板通常設計為模塊化結構，易于集成到現有系統中，并支持快速安裝。
- 可靠性高: 設計用于工業環境，能夠在惡劣的工作條件下提供穩定的性能，并具有較高的抗干擾能力。
- 適配性強: 兼容多種GE驅動系統和控制模塊，使其適用于各種不同的控制需求。
應用場景：
- 工業電機控制: 廣泛應用于各種工業領域的電機控制系統，如制造業、礦業、能源和水處理等場合。
- 驅動系統連接: 在驅動控制系統中，作為信號和電力傳輸?shù)暮诵倪B接板，幫助控制器與其他外圍設備進行通信。
- 自動化系統: 適用于自動化生產線中的驅動控制和反饋信號管理，確保系統按照預定邏輯精確運行。
特點總結：
- 多通道接線端子: 允許同時連接多個信號線纜，提供了靈活的信號傳輸功能。
- 工業級設計: 該端子板專為工業環境設計，具有抗電磁干擾能力，確保信號傳輸?shù)目煽啃浴?/li>
- 模塊化安裝: 易于與驅動系統和其他控制模塊集成，支持快速更換和系統升級。
- 通用性強: 兼容多種GE驅動系統，適用于各種驅動控制應用。
英文資料：
531X305NTBAJG1 is a Drive Control Terminal Board used in General Electric (GE) drive control systems. It is an important component of industrial drive systems, providing interfaces and connection functions for transmitting signals to different parts of the system. This terminal board provides wiring terminals to connect external devices and control circuits, enabling the drive system to accurately control the operation of the motor.
Main features:
Model: 531X305NTBAJG1
Purpose: Mainly used for signal transmission and connection in drive control systems, providing interfaces with external devices.
Electrical interface: Provides multiple wiring terminals for easy connection of external sensors, control devices, input/output signals, etc.
Easy to install: This terminal board is typically designed with a modular structure, making it easy to integrate into existing systems and supporting quick installation.
High reliability: Designed for industrial environments, it can provide stable performance under harsh working conditions and has high anti-interference ability.
Strong adaptability: compatible with multiple GE drive systems and control modules, making it suitable for various control needs.
Application scenarios:
Industrial motor control: widely used in motor control systems in various industrial fields, such as manufacturing, mining, energy, and water treatment.
Drive system connection: In the drive control system, it serves as the core connection board for signal and power transmission, helping the controller communicate with other peripheral devices.
Automation system: suitable for drive control and feedback signal management in automated production lines, ensuring precise operation of the system according to predetermined logic.
Summary of Characteristics:
Multi channel wiring terminal: allows multiple signal cables to be connected simultaneously, providing flexible signal transmission functionality.
Industrial grade design: This terminal board is designed specifically for industrial environments and has the ability to resist electromagnetic interference, ensuring the reliability of signal transmission.
Modular installation: easy to integrate with driver systems and other control modules, supports quick replacement and system upgrades.
Strong universality: compatible with multiple GE drive systems, suitable for various drive control applications.

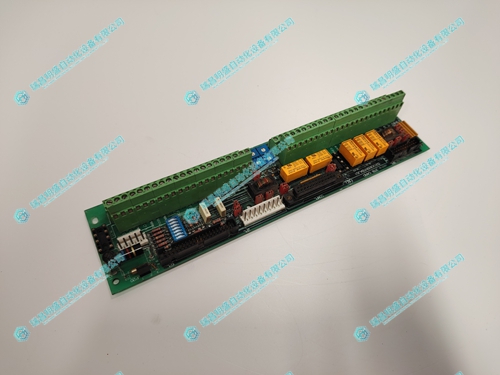

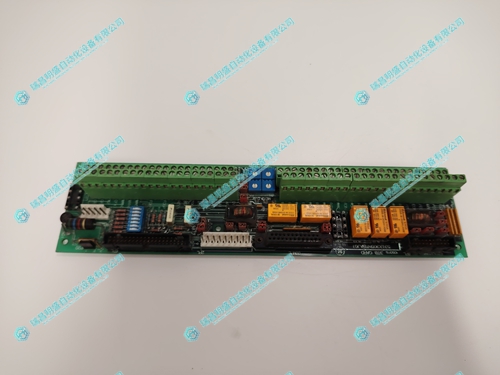

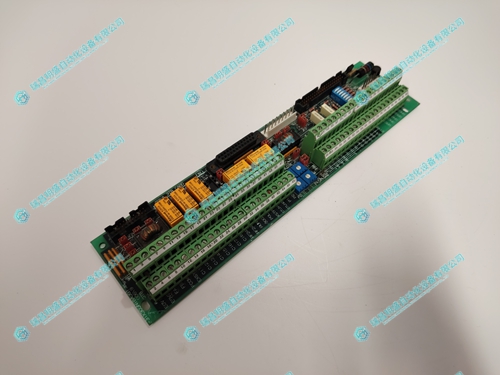

2.產 品 展 示
