Honeywell 51204156-175 數字輸出模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：
Honeywell 51204156-175 數字輸出模塊簡介
1. 概述Honeywell 51204156-175 數字輸出模塊是專為工業自動化系統設計的高性能模塊，通常用于與控制系統或分布式控制系統 (DCS) 集成。它能夠?qū)?lái)自控制器的數字信號轉換為外部設備的開關信號，用于控制諸如電磁閥、繼電器、指示燈和其他開關設備的操作。
2. 主要功能
- 數字信號輸出：將控制器產生的數字信號發送到外部設備，用于控制開關設備的運行狀態（如開/關操作）。
- 高速響應：該模塊具備快速響應能力，能夠在短時間內準確執行開關指令，確保工業設備的實時控制。
- 多通道輸出：模塊支持多個數字輸出通道，允許同時控制多臺設備或執行多種操作。
- 高可靠性：采用工業級設計，能夠在惡劣的工作環境下穩定運行，具有較強的抗干擾能力。
3. 技術特點
- 多通道配置：支持多達 16 個或更多的數字輸出通道，具體配置視具體型號而定。
- 輸出信號類型：通常為開關信號（開/關），用于控制外部設備的通斷操作。
- 絕緣保護：每個通道具有電氣隔離，防止信號之間的干擾，并確保系統的安全性和可靠性。
- LED 指示燈：每個輸出通道配有指示燈，用于實時顯示通道狀態（如輸出通道的開關狀態）。
4. 技術規格
- 型號：51204156-175
- 輸出通道：通常為 16 路或更多（視具體型號而定）
- 輸出電壓：24V DC（常見），也支持其他電壓范圍（依具體型號而定）
- 電流容量：典型值為每通道 0.5A 或更高
- 隔離電壓：各通道之間具備高電壓隔離（通常為 1500V AC 以上）
- 響應時間：典型響應時間小于 1ms
- 工作溫度范圍：-40°C 到 +70°C，適合嚴苛的工業環境
- 尺寸：標準尺寸，便于安裝在控制系統機架內
英文資料：
Introduction to Honeywell 51204156-175 Digital Output Module
1. Overview Honeywell 51204156-175 digital output module is a high-performance module designed specifically for industrial automation systems, typically used for integration with control systems or distributed control systems (DCS). It can convert digital signals from the controller into switch signals for external devices, which are used to control the operation of devices such as solenoid valves, relays, indicator lights, and other switch devices.
2. Main functions
Digital signal output: Send the digital signal generated by the controller to external devices for controlling the operating status of switch devices (such as on/off operations).
High speed response: This module has the ability to respond quickly and accurately execute switch instructions in a short period of time, ensuring real-time control of industrial equipment.
Multi channel output: The module supports multiple digital output channels, allowing for simultaneous control of multiple devices or execution of multiple operations.
High reliability: Adopting industrial grade design, it can operate stably in harsh working environments and has strong anti-interference ability.
3. Technical features
Multi channel configuration: Supports up to 16 or more digital output channels, depending on the specific model.
Output signal type: usually a switch signal (on/off), used to control the on/off operation of external devices.
Insulation protection: Each channel has electrical isolation to prevent interference between signals and ensure the safety and reliability of the system.
LED indicator light: Each output channel is equipped with an indicator light for real-time display of channel status (such as the on/off status of the output channel).
4. Technical specifications
Model: 51204156-175
Output channels: typically 16 or more (depending on the specific model)
Output voltage: 24V DC (common), also supports other voltage ranges (depending on the specific model)
Current capacity: Typical value is 0.5A or higher per channel
Isolation voltage: Each channel has high voltage isolation (usually above 1500V AC) between them
Response time: Typical response time is less than 1ms
Operating temperature range: -40 ° C to+70 ° C, suitable for harsh industrial environments
Size: Standard size, easy to install in the control system rack

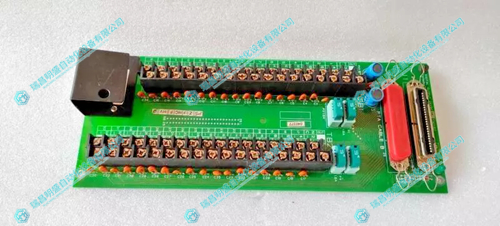

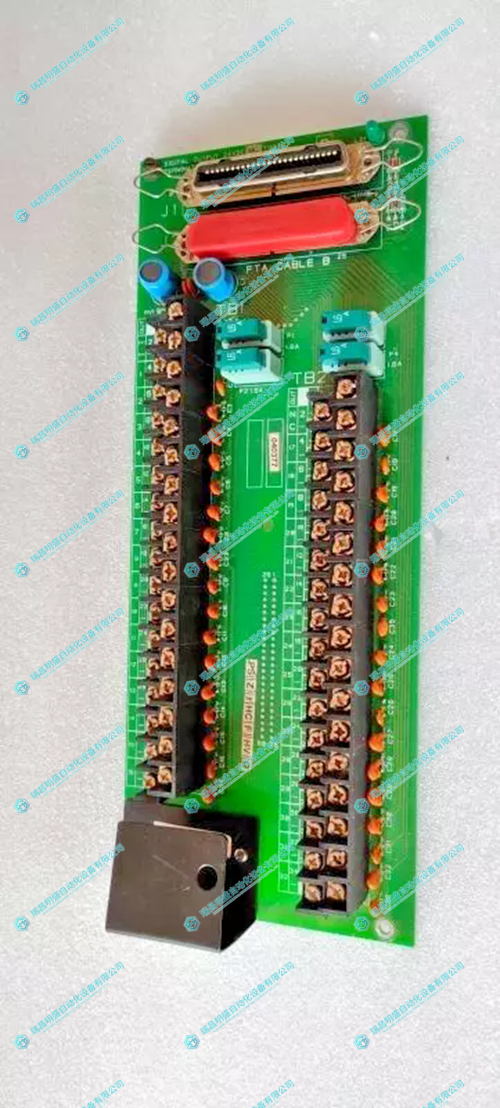

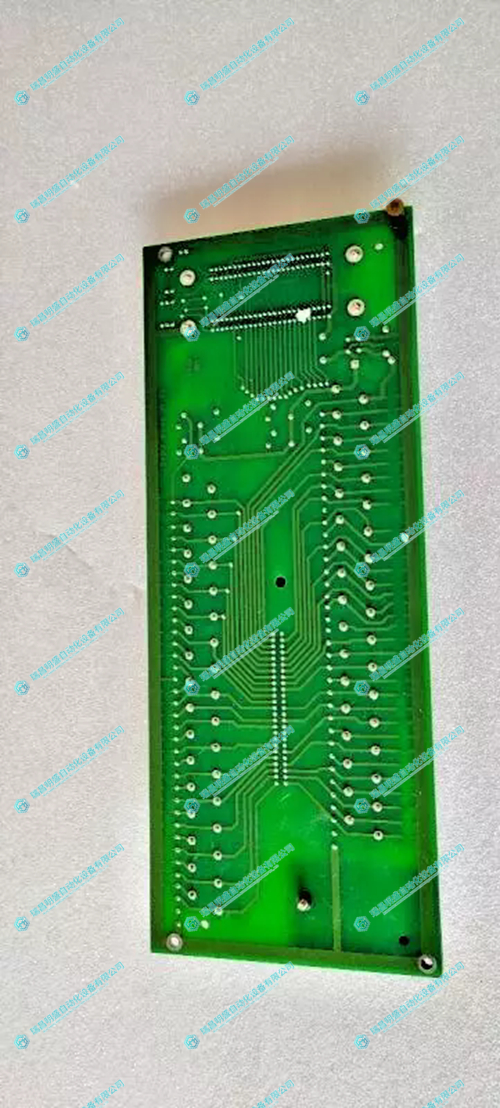

2.產 品 展 示
