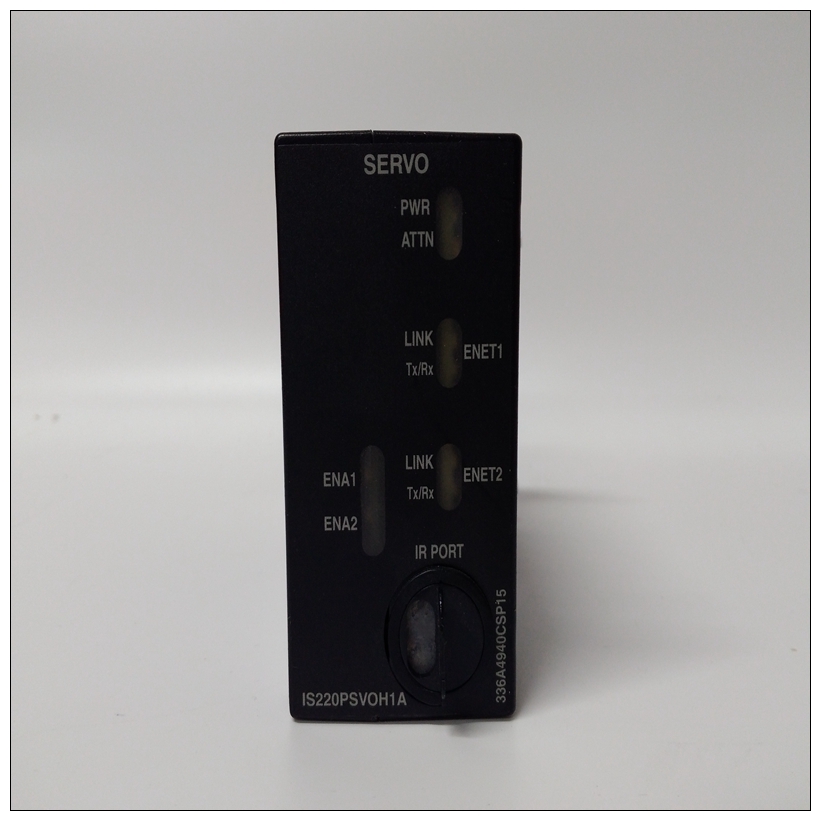

IS220PSVOH1A燃機模塊,IS220PSVOH1A使用進展
升級可以使用固件升級實用程序?qū)C693CPU366現場升級為IC693CPU366 xE，并且升級套件44A751640-G05。固件升級套件可以從支持網站免費下載或購買。固件升級需要IC690ACC901微型轉換器和電纜套件。功能兼容性主題描述電池壽命使用原裝緩存RAM組件，電池壽命為6年25°C，60°C時為1?年目前可用的部件將電池壽命降低到25°C時的10個月60°C時為5個半月。編程器版本要求IC693CPU366可以配置
IS220PSVOH1A燃機模塊和編程Machine Edition Logic Developer PLC 5.0 SP1或更高版本。PLC C工具包版本要求PLC C工具包的4.00或更高版本必須用于C編程。IC693CMM321以太網接口版本要求所有以太網接口（IC693CMM321）模塊用于與該CPU的程序員或HMI/SCADA通信必須以下修訂組之一：IC693CMM321-CC或更高版本IC693CMM321-AA或-BA升級至固件版本1.11或更高版本90-30系列手持式程序員兼容性CPU366不支持使用手持式編程器（HHP）。IC693BEM340 FIP總線控制器版本要求為此需要IC693BEM340固件版本3.00或更高版本CPU 36x固件的發布。90系列?-30現場總線兼容性90-30系列IC693PBM200和IC693PBS201的用戶PROFIBUS模塊應審查90-30系列CPU嵌入式PROFIBUS用戶手冊，GFK-2334。有PROFIBUS功能之間的操作差異這些CPU型號和PBM200/PBS201模塊，例如COMMREQ狀態字和數據字段。這些CPU型號報告在某些情況下，比PROFIBUS模塊更多的信息其他方面的信息更少。
Upgrades
An IC693CPU366 can be field upgraded to an IC693CPU366-xE using the firmware upgrade utility and
upgrade kit 44A751640-G05.
Firmware upgrade kits can be downloaded at no cost from the Support website or purchased. Firmware
upgrades require the IC690ACC901 Miniconverter and Cable Kit.
Functional Compatibility
Subject Description
Battery Life With the original cache RAM component, the battery life was 6 years
25°C and 1? years at 60°C. The data retention current on the
currently available part reduces the battery life to 10 months at 25°C
and 5? months at 60°C.
Programmer Version
Requirements
The IC693CPU366 can be configured and programmed with
Machine Edition Logic Developer PLC version 5.0 SP1 or later.
PLC C Toolkit Version
Requirements
Version 4.00 or later of the PLC C Toolkit must be used for C
programming.
IC693CMM321 Ethernet
Interface Version Requirements
All Ethernet Interface (IC693CMM321) modules used for
programmer or HMI/SCADA communications with this CPU must be
one of the following revision groups:
IC693CMM321-CC or later
IC693CMM321-AA or -BA upgraded to firmware version 1.11 or later
Series 90-30 Hand-Held
Programmer Compatibility
The CPU366 does not support PROFIBUS configuration using the
Hand-Held Programmer (HHP).
IC693BEM340 FIP Bus
Controller Version
Requirements
IC693BEM340 firmware version 3.00 or later is required for this
release of CPU 36x firmware.
Series 90?-30 PROFIBUS
Compatibility
