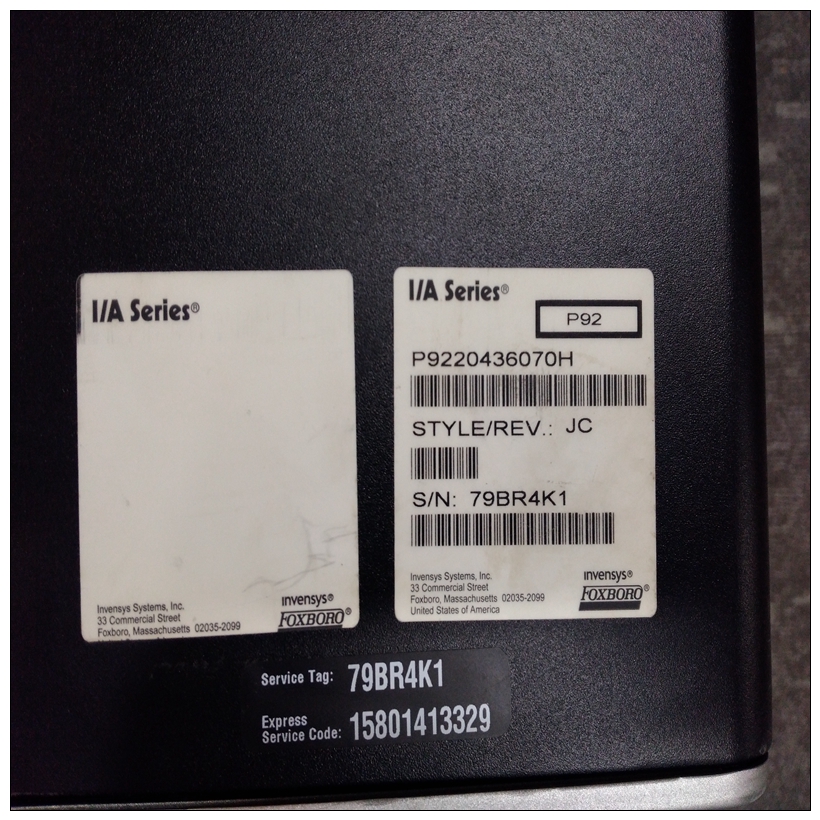

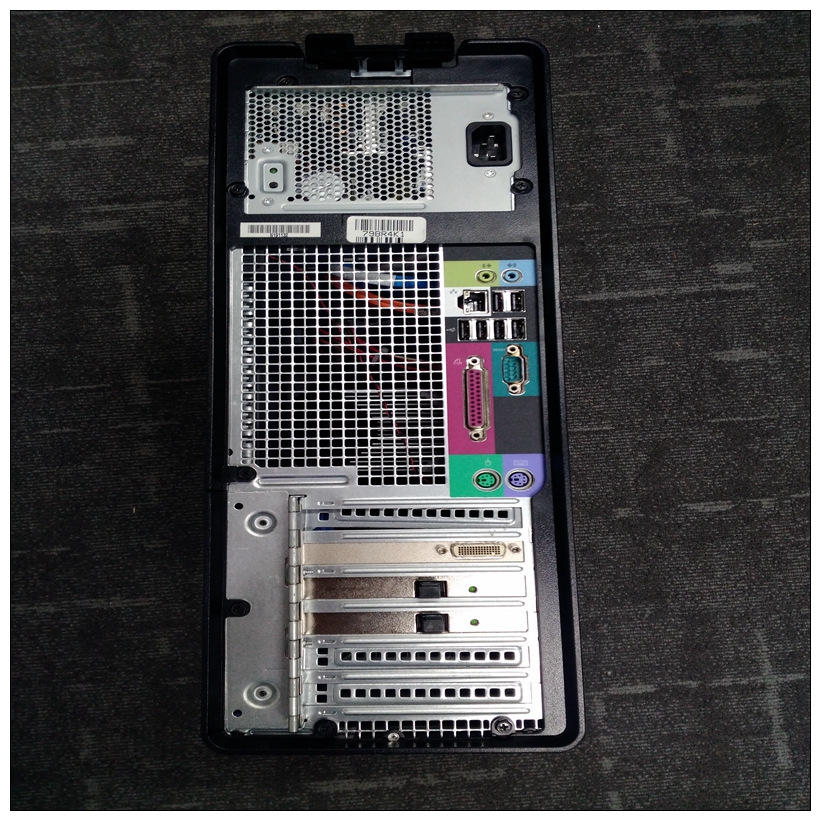

P92 P9220436070H接線模塊,FOXBORO產品外觀P92 P9220436070H
嵌入式PROFIBUS不支持DOIO功能此時的接口。DOIO函數塊不返回使用嵌入式PROFIBUS作為目標執行時出錯。獲取設備狀態COMMREQ獲取設備狀態COMMREQ用于獲取詳細狀態關于PROFIBUS網絡上特定設備的信息。在里面為了獲得最新的數據，在初始版本，使其成為活動網絡命令。在第一個發布時，此信息返回給基于應用程序的用戶在緩沖數據上。在首次發布后，該數據將被激活從網絡請求。
P92 P9220436070H接線模塊如果用戶應用程序使用Get設備狀態COMMREQ通常有可能影響網絡性能。總配置大小PLC CPU內的各種內存資源約束從設備的數量和類型以及它們可以提供的數據量與主人交流。可用于的內存量PROFIBUS配置受網絡配置中的從屬模塊。CPU366提供最多8K字節（物理內存）的資源數據這是由每個從模塊的GSD文件定義的，可以有所不同取決于模塊的類型。PROFIBUS Data調整可在CPU 366上配置的數據量PROFIBUS網絡提供高達2048字節的輸入和2048字節輸出。CPU366從停止運行模式，wordPID參數的偏移28阻塞將被清除。SP、PV和“PREV\u FILT\u DERIV\u TERM”無意中在word處重疊PID參數塊的偏移28，導致在從停止切換到運行。通過消除參數重疊，問題得到了解決。參數PREV\u FILT\u DERIV\u TERM現在處理為字偏移量30。
DOIO functionality is not supported to the embedded PROFIBUS
interface at this time. The DOIO function block does not return an
error if it is executed using the embedded PROFIBUS as a target.
Get Device Status COMMREQ The Get Device Status COMMREQ is used to get detailed status
information about a particular device on the PROFIBUS network. In
order to get the most up to date data, a change was made after the
initial release to make this an active network command. In the first
release, this information was returned to the user application based
on buffered data. After the initial release, this data is actively
requested from the network. If the user application uses the Get
Device Status COMMREQ often, there is a potential to impact
network performance.
Total Configuration Size The various memory resources within the PLC CPU constrain the
number and type of slave devices and the amount of data they can
exchange with the master. The amount of memory available for the
PROFIBUS configuration is affected by the number and type of
slave modules in the network configuration.
The CPU366 provides up to 8K bytes (physical memory) of resource
data. This is defined by each slave module’s GSD file, and can vary
depending on the types of modules.
PROFIBUS Data Sizes The amount of data that can be configured on the CPU 366
PROFIBUS network provides up to 2048 bytes input and 2048
bytes output.CPU366 was switched from
STOP to RUN mode, word
offset 28 of the PID parameter
block would be cleared.
Two parameters ‘Upper Range for SP,PV’ and
‘PREV_FILT_DERIV_TERM’ inadvertently overlapped at word
offset 28 of the PID parameter block causing it to be cleared when
switched from STOP to RUN.
The problem has been fixed by removing the overlap of parameters.
The parameter PREV_FILT_DERIV_TERM is now addressed to
word offset 30.
