Brooks 001-7124-01機器人控制器板 PDF資料
1.產 品 資 料 介 紹：
中文資料：
Brooks 001-7124-01 機器人控制器板 是 Brooks Automation 提供的一款高性能控制器板，專為工業機器人系統設計，負責機器人各項運動控制、任務調度、數據處理及系統協調。作為機器人控制系統中的核心組件，它確保機器人能夠精準執行任務，同時與其他系統和設備進行高效的協調。
產品特點：
- 精確運動控制：Brooks 001-7124-01 機器人控制器板能夠精確控制機器人各關節的運動，支持高速、高精度的運動軌跡規劃和實時反饋，確保機器人在復雜操作中的穩定性和精確性。
- 多通道輸入輸出：支持多種輸入輸出接口，包括數字和模擬信號輸入、PWM輸出、脈沖輸出等，能夠與傳感器、執行器和其他設備進行高效的信號交換。
- 實時控制能力：內置高速處理器和專用的運動控制單元，能夠在微秒級別響應外部信號變化，適應高速、實時的控制要求。
- 高級編程與調試功能：支持高級編程功能和調試工具，能夠根據不同的應用需求進行定制化控制，同時提供便捷的編程接口，便于開發人員進行系統集成。
- 高可靠性：該控制器板采用工業級設計，具有較強的抗干擾能力和耐高溫能力，適應各種嚴苛的工作環境，確保機器人系統的長期穩定運行。
- 通信與集成能力：兼容多種工業通信協議（如RS-485、Ethernet、CAN等），支持與其他設備和控制系統的無縫集成。
技術參數：
- 型號：Brooks 001-7124-01
- 輸入/輸出接口：
- 多通道數字和模擬信號輸入輸出。
- 支持脈沖控制輸出，適用于電機驅動控制。
- 支持外部傳感器和執行器的連接。
- 處理能力：集成高速處理器，支持多任務并行處理，能夠?qū)崟r(shí)響應控制信號。
- 編程接口：支持自定義的運動控制算法和任務調度，具備可編程的接口，便于與其他自動化系統集成。
- 工作溫度范圍：通常為-10°C至+60°C，適應各種工業環境。
- 電源要求：24V直流電源或其他常見工業電源。
- 通信協議：支持RS-485、CAN總線、Ethernet等多種工業標準協議。
- 保護機制：具備過熱、過載保護等功能，確保系統運行安全。
應用領域：
- 工業機器人：廣泛應用于各種類型的工業機器人系統中，如焊接機器人、裝配機器人、搬運機器人等，負責精確控制機器人的運動軌跡、操作任務以及協調各個機械臂和執行器。
- 自動化生產線：用于自動化生產線的控制系統中，協同機器人與其他自動化設備（如傳送帶、機械臂等）協調工作，提高生產效率。
- 實驗室自動化：在實驗室自動化系統中，Brooks 001-7124-01 機器人控制器板可用于機器人操作的控制，例如自動樣品處理、測試設備控制等。
- 精密裝配與加工：用于精密裝配和加工任務中，確保機器人能夠高精度地執行任務，如微型元件組裝、精準加工等。
- 物流自動化：用于物流系統中，如自動化倉儲、搬運、包裝等任務中的機器人控制。
英文資料：
The Brooks 001-7124-01 robot controller board is a high-performance controller board provided by Brooks Automation, designed specifically for industrial robot systems, responsible for robot motion control, task scheduling, data processing, and system coordination. As a core component in robot control systems, it ensures that robots can perform tasks accurately while efficiently coordinating with other systems and devices.
Product features:
Precise motion control: The Brooks 001-7124-01 robot controller board can accurately control the motion of each joint of the robot, supporting high-speed and high-precision motion trajectory planning and real-time feedback, ensuring the stability and accuracy of the robot in complex operations.
Multi channel input/output: Supports multiple input/output interfaces, including digital and analog signal input, PWM output, pulse output, etc., enabling efficient signal exchange with sensors, actuators, and other devices.
Real time control capability: Equipped with a built-in high-speed processor and dedicated motion control unit, it can respond to external signal changes at the microsecond level, adapting to high-speed and real-time control requirements.
Advanced programming and debugging functions: Supports advanced programming functions and debugging tools, can customize control according to different application requirements, and provides convenient programming interfaces for developers to integrate the system.
High reliability: The controller board adopts industrial grade design, with strong anti-interference ability and high temperature resistance, suitable for various harsh working environments, ensuring the long-term stable operation of the robot system.
Communication and integration capabilities: Compatible with multiple industrial communication protocols (such as RS-485, Ethernet, CAN, etc.), supporting seamless integration with other devices and control systems.
Technical parameters:
Model: Brooks 001-7124-01
Input/output interface:
Multi channel digital and analog signal input and output.
Supports pulse control output, suitable for motor drive control.
Support the connection of external sensors and actuators.
Processing capability: Integrated high-speed processor, supports multitasking parallel processing, and can respond to control signals in real time.
Programming Interface: Supports custom motion control algorithms and task scheduling, with programmable interfaces for easy integration with other automation systems.
Working temperature range: typically -10 ° C to+60 ° C, suitable for various industrial environments.
Power requirement: 24V DC power supply or other common industrial power supply.
Communication protocol: Supports various industrial standard protocols such as RS-485, CAN bus, Ethernet, etc.
Protection mechanism: It has functions such as overheating and overload protection to ensure the safe operation of the system.
Application areas:
Industrial robots: widely used in various types of industrial robot systems, such as welding robots, assembly robots, handling robots, etc., responsible for precise control of the robot's motion trajectory, operation tasks, and coordination of various robotic arms and actuators.
Automated production line: used in the control system of automated production lines, collaborative robots work in coordination with other automation equipment (such as conveyor belts, robotic arms, etc.) to improve production efficiency.
Laboratory Automation: In laboratory automation systems, the Brooks 001-7124-01 robot controller board can be used for controlling robot operations, such as automatic sample processing, testing equipment control, etc.
Precision assembly and machining: used in precision assembly and machining tasks to ensure that robots can perform tasks with high precision, such as micro component assembly, precision machining, etc.
Logistics automation: used for robot control in logistics systems, such as automated warehousing, handling, packaging, and other tasks.

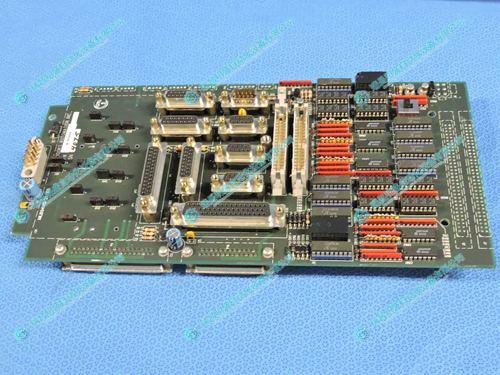

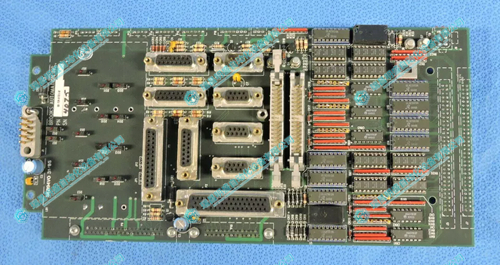

2.產 品 展 示
