IC610MDL179 輸出模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：
GE Fanuc IC610MDL179 輸出模塊 是屬于 GE Fanuc 的 Series One PLC 系列中的數字輸出模塊，設計用于控制和驅動外部設備，例如電磁閥、繼電器和指示燈等。該模塊以其可靠性和易用性廣泛應用于工業自動化場景。
產品概述
- 型號：IC610MDL179
- 系列：GE Fanuc Series One
- 類型：數字輸出模塊
- 主要功能：提供多個數字輸出通道，用于控制外部負載設備的開/關狀態。
主要特點
多通道數字輸出：
- 提供多達 16 路輸出通道，滿足多點輸出控制需求。
- 每個通道獨立工作，可單獨配置和控制。
可靠的負載驅動能力：
- 支持直流（DC）和交流（AC）負載的驅動，適應性廣。
- 輸出電流能力強，適合控制電磁閥、指示燈等負載。
模塊化設計：
- 可輕松插入到 Series One PLC 的機架中。
- 支持與其他模塊如輸入模塊、處理器模塊無縫集成。
狀態指示燈：
- 每個通道配有 LED 狀態指示燈，方便監控每路輸出的運行狀態。
工業級設計：
- 適用于嚴苛的工業環境，具備抗振動和抗干擾能力。
- 支持長時間穩定運行，維護簡單。
技術規格
- 輸出通道：16 路
- 輸出類型：數字（開關型）
- 輸出電壓范圍：
- 直流：5-30V DC
- 交流：0-250V AC
- 最大輸出電流：0.5A/每通道
- 響應時間：10ms（典型值）
- 連接方式：螺釘端子或接線端子排
- 工作溫度：0°C 至 60°C
- 安裝方式：DIN 導軌或機架安裝
應用場景
過程控制：
- 驅動電磁閥、泵、加熱器等設備，實現精確的過程控制。
工業自動化：
- 控制生產線中的設備，如馬達啟動器、繼電器和報警裝置。
設備狀態指示：
- 控制信號燈或顯示設備，提供設備運行狀態的可視化信息。
樓宇自動化：
- 管理暖通空調、照明和安防系統中的開關控制。
模塊優勢
- 易用性：即插即用的設計，簡化安裝和調試過程。
- 兼容性強：與 Series One PLC 系列的其他模塊無縫兼容。
- 可靠性高：工業級設計，能夠在復雜環境中保持穩定運行。
英文資料：
The GE Fanuc IC610MDL179 output module is a digital output module belonging to GE Fanuc's Series One PLC series, designed to control and drive external devices such as solenoid valves, relays, and indicator lights. This module is widely used in industrial automation scenarios due to its reliability and ease of use.
Product Overview
Model: IC610MDL179
Series: GE Fanuc Series One
Type: Digital Output Module
Main function: Provides multiple digital output channels for controlling the on/off status of external load devices.
main features
Multi channel digital output:
Provide up to 16 output channels to meet multi-point output control requirements.
Each channel works independently and can be configured and controlled separately.
Reliable load driving capability:
Supports driving of direct current (DC) and alternating current (AC) loads, with wide adaptability.
Strong output current capability, suitable for controlling loads such as solenoid valves and indicator lights.
Modular design:
Can be easily inserted into the rack of Series One PLC.
Support seamless integration with other modules such as input modules and processor modules.
Status indicator light:
Each channel is equipped with LED status indicator lights for easy monitoring of the operating status of each output.
Industrial grade design:
Suitable for harsh industrial environments, with anti vibration and anti-interference capabilities.
Supports long-term stable operation and simple maintenance.
technical specifications
Output channel: 16 channels
Output type: digital (switch type)
Output voltage range:
DC: 5-30V DC
Communication: 0-250V AC
Maximum output current: 0.5A/channel
Response time: 10ms (typical value)
Connection method: screw terminal or wiring terminal block
Working temperature: 0 ° C to 60 ° C
Installation method: DIN rail or rack installation
Application scenarios
Process control:
Drive electromagnetic valves, pumps, heaters and other equipment to achieve precise process control.
Industrial automation:
Control the equipment in the production line, such as motor starters, relays, and alarm devices.
Equipment status indication:
Control signal lights or display devices to provide visual information on the operating status of the equipment.
Building automation:
Manage switch control in HVAC, lighting, and security systems.
Module advantages
Usability: A plug and play design that simplifies the installation and debugging process.
Strong compatibility: Seamless compatibility with other modules in the Series One PLC series.
High reliability: Industrial grade design that can maintain stable operation in complex environments.

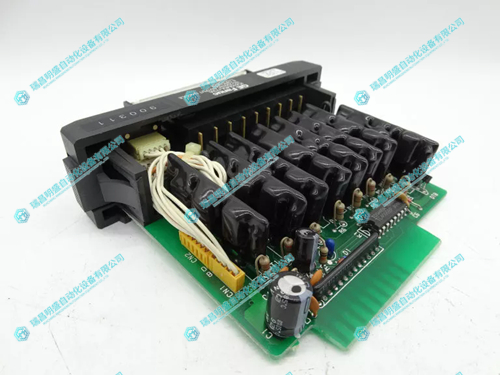

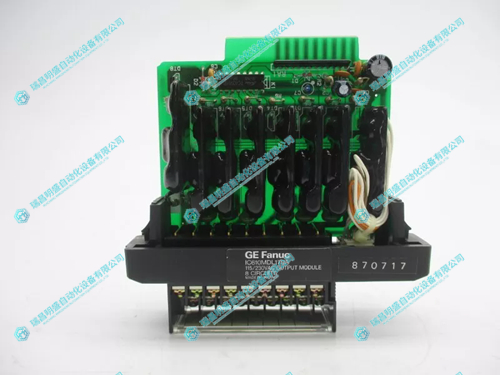

2.產 品 展 示
