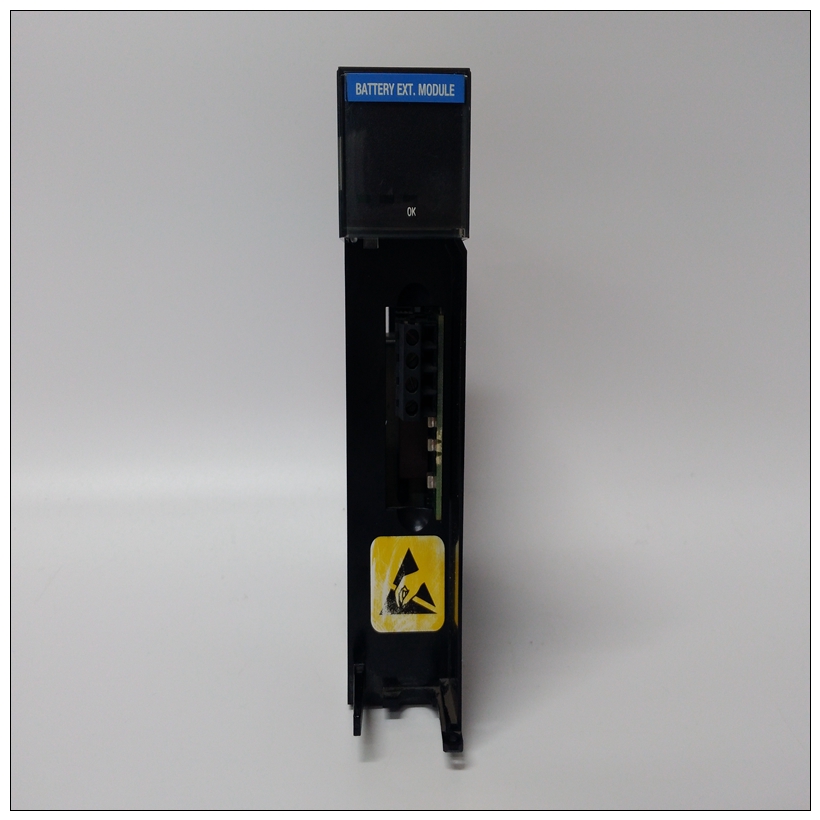

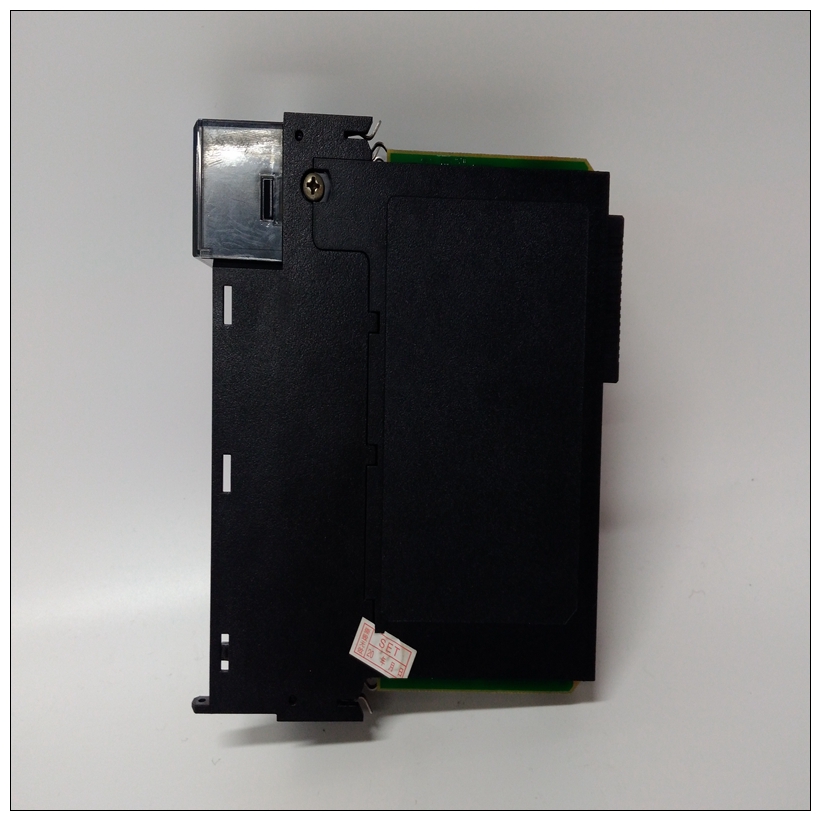

HONEYWELL TC-PPD011工控卡件,TC-PPD011產品尺寸
ALG220/221-F或的定時問題早期模塊可能導致CPU讀取的%AI值不正確IC693ALG220/221-F或更早版本報告的%AI值模塊修訂可能不正確，并表現出不穩定的行為。應用于的輸入范圍內的某些電流或電壓水平該模塊可能導致錯誤報告%AI值。問題源于使用特殊的光耦合器CPU 35x/36x模塊可能出現定時問題。IC693ALG220/221-G及更高版本不會出現此問題模塊修訂。
HONEYWELL TC-PPD011工控卡件CPU可能產生致命故障包含DOIO函數的if邏輯阻止對智能模塊的調用是反復轉換運行和停止模式。存儲包含對DOIO功能塊調用的程序邏輯可能導致CPU耗盡系統內存。這可能會發生當PLC在運行和停止模式之間轉換時時代。存儲硬件配置將導致系統內存釋放，PLC將恢復正常運行。CPU可能產生致命故障在存儲帶有大配置在存儲帶有非常大的配置。存儲邏輯可能會使情況變得更糟和配置，或通過讀取請求存儲期間，來自程序員或HMI的參考表數據。有關詳細信息，請參閱第6頁的“存儲大型配置”建議。從閃存讀取損壞的數據記憶可能導致看門狗超時如果從閃存中讀取損壞的數據，則監視器計時器在PLC上可能會觸發。這可以通過完成有效的閃存存儲。CPU可能產生致命故障使用配置模塊時HHP跟隨門店前往耗盡用戶內存的PLC當用戶在存儲到之后，嘗試使用HHP配置模塊耗盡用戶內存的PLC。固件更新失敗通過清除M/T和a通電寫入閃存在用戶按下清除鍵后，固件升級可能會失敗通電期間，HHP上的M/T鍵，然后執行寫入
閃光PLC上的循環電源將使升級到
CPU Restrictions and Open Issues
Subject Description
Timing Issue with ALG220/221-F or
earlier modules may result in
incorrect %AI values read by CPU
The %AI values reported by an IC693ALG220/221-F or earlier
module revision may be incorrect and exhibit erratic behavior.
Certain current or voltage levels within the input range applied to
the module can cause the %AI values to be reported incorrectly.
The problem stems from the use of particular opto-couplers that
may exhibit timing issues with CPU 35x/36x modules.
This issue does not occur with IC693ALG220/221-G and later
module revisions.
The CPU may generate a fatal fault
if logic containing a DOIO function
block call to a smart module is
repeatedly transitioned between
RUN and STOP modes.
Storing program logic that contains a call to a DOIO function block
may cause the CPU to run out of system memory. This can occur
when the PLC transitions between RUN and STOP modes several
times.
Storing the hardware configuration will cause the system memory
to be freed, and the PLC will resume normal operation.
CPU may generate a Fatal Fault
during store of folders with large
configurations
The CPU may generate a fatal fault during a store of a folder with a
very large configuration. This may be made worse by storing logic
and configuration at the same time, or by read requests for
reference table data from a programmer or HMI during the store.
See “Storing Large Configurations” on page 6 for
recommendations.
Reading corrupted data from flash
memory may cause a Watch Dog
Timeout
If corrupted data is read from flash memory, the Watch Dog Timer
on the PLC may be triggered. This can be corrected by completing
a valid flash store.
The CPU may generate a fatal fault
when configuring a module with
the HHP following a store to the
PLC that exhausts user memory
The 90-30 PLC CPU may generate a fatal fault when the user
attempts to configure a module with the HHP after a store to the
PLC that exhausts user memory.
Firmware Update fails following
power-up with Clear M/T and a
write to flash
A firmware upgrade may fail after the user presses the Clear and
M/T keys on the HHP during power-up and then performs a write to
flash. Cycling power on the PLC will enable the upgrade to
proceed.
