ABB YPI105C數字輸入電路板 PDF資料
1.產 品 資 料 介 紹：
中文資料：
ABB YPI105C 數字輸入電路板是一種高性能工業級模塊，專為復雜的自動化控制系統設計，廣泛應用于過程控制和自動化領域。它主要用作輸入模塊，用于接收來自現場設備的數字信號，將其轉換為控制器可識別的數據格式。
主要功能和特點：
多通道數字輸入：
- 提供多個數字輸入通道，支持并行處理。
- 可連接多種類型的開關、傳感器或其他數字設備。
信號兼容性：
- 支持多種輸入信號標準（如24V DC或48V DC）。
- 提供電氣隔離功能，避免信號干擾和設備損壞。
高可靠性：
- 設計適應嚴苛的工業環境，具備良好的抗干擾能力。
- 符合EMC（電磁兼容）和工業標準。
故障診斷：
- 內置診斷功能，實時監測通道狀態。
- 支持檢測輸入信號故障（如短路或斷路）。
模塊化設計：
- 易于安裝、維護和更換。
- 與ABB控制系統無縫集成，適用于各種控制架構。
技術規格：
| 參數 | 詳情 |
|---|---|
| 輸入通道數量 | 通常為16通道或更高 |
| 輸入電壓范圍 | 24V DC 或 48V DC |
| 輸入電流 | 典型值為幾毫安 |
| 信號隔離 | 通道間隔離，最大可達500V |
| 響應時間 | < 10 毫秒 |
| 工作溫度范圍 | -20°C 至 +70°C |
| 安裝方式 | DIN導軌或機架式安裝 |
| 尺寸 | 標準模塊尺寸 |
應用領域：
工業自動化： 用于PLC系統接收現場設備的開關信號，如按鈕、限位開關等。
過程控制： 監控并采集過程信號，應用于石油、化工、電力等行業。
能源管理： 用于發電和輸配電控制系統中的數字信號輸入。
智能制造： 集成到生產線中，用于高精度信號采集和控制。
英文資料：
The ABB YPI105C digital input circuit board is a high-performance industrial grade module designed specifically for complex automation control systems, widely used in the fields of process control and automation. It is mainly used as an input module to receive digital signals from field devices and convert them into a data format recognizable by the controller.
Main functions and features:
Multi channel digital input:
Provide multiple digital input channels and support parallel processing.
Can connect various types of switches, sensors, or other digital devices.
Signal compatibility:
Supports multiple input signal standards (such as 24V DC or 48V DC).
Provide electrical isolation function to avoid signal interference and equipment damage.
High reliability:
Designed to adapt to harsh industrial environments and possess excellent anti-interference capabilities.
Compliant with EMC (electromagnetic compatibility) and industry standards.
Fault diagnosis:
Built in diagnostic function, real-time monitoring of channel status.
Support detecting input signal faults (such as short circuits or open circuits).
Modular design:
Easy to install, maintain, and replace.
Seamless integration with ABB control systems, suitable for various control architectures.
Technical specifications:
Parameter details
The number of input channels is usually 16 channels or higher
Input voltage range 24V DC or 48V DC
The typical value of input current is a few milliamps
Isolation between signal isolation channels, up to a maximum of 500V
Response time<10 milliseconds
Working temperature range -20 ° C to+70 ° C
Installation method: DIN rail or rack mounted installation
Size standard module size
Application areas:
Industrial automation: used for PLC systems to receive switch signals from on-site equipment, such as buttons, limit switches, etc.
Process control: Monitor and collect process signals, applied in industries such as petroleum, chemical, and power.
Energy management: Used for digital signal input in power generation and transmission control systems.
Intelligent manufacturing: integrated into the production line for high-precision signal acquisition and control.

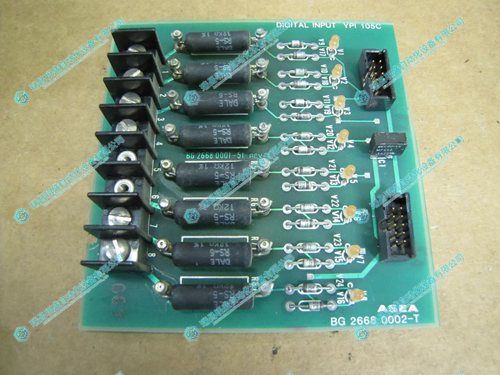

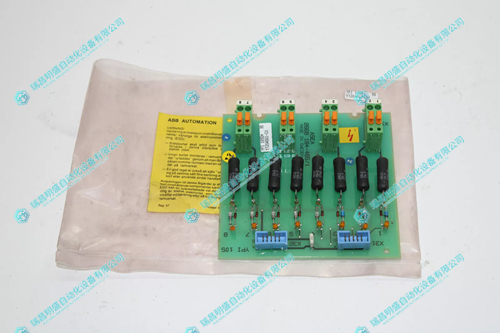

2.產 品 展 示
