Modicon AS-S908-120RP遠程 I/O 處理器模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：
Modicon AS-S908-120RP 遠程 I/O 處理器模塊是施耐德電氣（Schneider Electric）Modicon系列的一部分，專為工業自動化系統中的遠程I/O控制而設計。它主要用于橋接主控制器和遠程I/O設備，實現分布式控制系統的高效運行。以下是該模塊的詳細信息：
主要功能和特點
遠程I/O通信
- 支持與遠程I/O設備之間的高速數據傳輸。
- 可用于復雜的分布式控制系統，顯著降低現場布線成本。
兼容性強
- 與Modicon PLC（如Modicon 984、Quantum）無縫集成。
- 支持S908遠程I/O網絡協議，兼容多種I/O模塊。
高性能數據處理
- 提供快速的信號處理能力，確保實時性和系統穩定性。
- 支持大容量I/O設備管理，滿足大規模系統需求。
可靠性和安全性
- 內置診斷功能，可監控通信狀態和故障。
- 具備抗干擾能力，適合工業環境的高可靠性運行。
模塊化設計
- 易于安裝、維護和擴展，適合多種工業應用場景。
- 支持熱插拔功能，在不影響系統運行的情況下更換模塊。
技術規格
| 參數 | 詳情 |
|---|---|
| 通信協議 | S908 遠程I/O網絡協議 |
| 支持的PLC型號 | Modicon 984、Quantum |
| 最大遠程I/O設備數量 | 通常支持多個遠程I/O站點 |
| 數據傳輸速率 | 高速通信，具體取決于網絡配置 |
| 工作電源 | 24V DC |
| 工作溫度范圍 | 0°C 至 +60°C |
| 安裝方式 | 機架式安裝 |
| 尺寸 | 標準Modicon模塊尺寸 |
應用領域
過程控制
- 石油化工、制藥、食品飲料等行業的分布式過程控制系統。
制造自動化
- 控制和監控大型自動化生產線中的遠程I/O設備。
能源管理
- 電力和水處理行業的分布式監控和控制。
樓宇自動化
- 控制和監控樓宇系統中的分布式設備（如照明和空調）。
英文資料：
The Modicon AS-S908-120RP remote I/O processor module is part of Schneider Electric's Modicon series, designed specifically for remote I/O control in industrial automation systems. It is mainly used to bridge the main controller and remote I/O devices, achieving efficient operation of distributed control systems. The following is the detailed information of the module:
Main functions and features
Remote I/O communication
Supports high-speed data transfer between remote I/O devices.
Can be used in complex distributed control systems, significantly reducing on-site wiring costs.
Strong compatibility
Seamless integration with Modicon PLCs such as Modicon 984 and Quantum.
Supports S908 remote I/O network protocol and is compatible with multiple I/O modules.
High performance data processing
Provide fast signal processing capabilities to ensure real-time performance and system stability.
Support large capacity I/O device management to meet large-scale system requirements.
Reliability and safety
Built in diagnostic function that can monitor communication status and faults.
Capable of anti-interference and suitable for high reliability operation in industrial environments.
Modular design
Easy to install, maintain, and expand, suitable for various industrial application scenarios.
Support hot swapping function, replace modules without affecting system operation.
technical specifications
Parameter details
Communication Protocol S908 Remote I/O Network Protocol
Supported PLC models Modicon 984, Quantum
The maximum number of remote I/O devices typically supports multiple remote I/O sites
The data transmission rate for high-speed communication depends on the network configuration
Working power supply 24V DC
Working temperature range: 0 ° C to+60 ° C
Installation method: Rack mounted installation
Size standard Modicon module size
application area
process control
Distributed process control systems for industries such as petrochemicals, pharmaceuticals, and food and beverage.
Manufacturing automation
Control and monitor remote I/O devices in large-scale automated production lines.
energy management
Distributed monitoring and control in the power and water treatment industries.
Building automation
Control and monitor distributed devices in building systems, such as lighting and air conditioning.

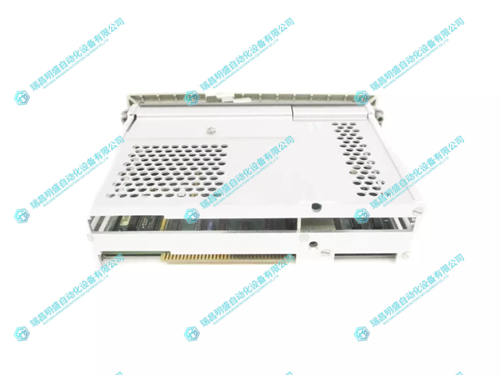

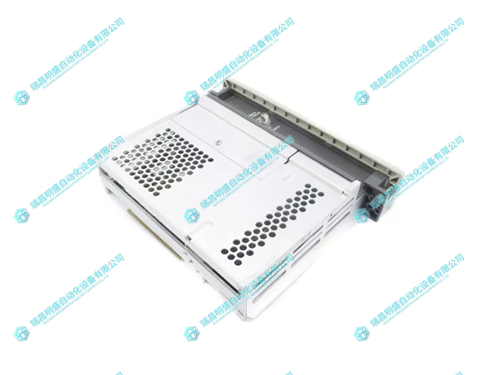

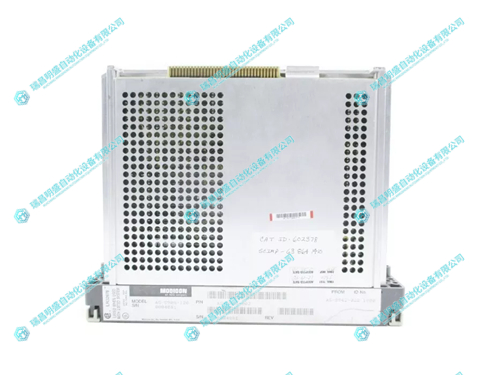

2.產 品 展 示
