TOPWORX DXP-L21ZNEB氣門定位器 PDF資料
1.產 品 資 料 介 紹：
中文資料：
TopWorx DXP-L21ZNEB 氣門定位器是一款高性能和可靠性氣動設備，廣泛應用于過程控制行業中的閥門位置監控和反饋系統。這款設備能夠在惡劣的工業環境中正常運行，并提供準確的閥門位置檢測和信號輸出，適用于化工、石油天然氣、能源和水處理行業。
主要功能和特點
閥門位置檢測
- 精確檢測閥門開關位置，并將信號傳遞到控制系統。
- 提供實時反饋，確保過程的高效運行。
堅固耐用的設計
- 外殼采用防腐材料，防護等級達到 IP66/IP67。
- 能夠抵御極端溫度、濕度和腐蝕性環境。
多種信號輸出
- 支持多種輸出信號格式，包括開關信號和模擬信號。
- 可用于與 PLC、DCS 和 SCADA 系統集成。
易于安裝和維護
- 緊湊設計，便于安裝在各種類型的閥門上。
- 模塊化結構，簡化了維修和更換工作。
認證與標準
- 通過多種國際認證，包括 ATEX、IECEx，適用于危險場所。
- 符合防爆和本質安全標準。
技術規格
| 參數 | 詳情 |
|---|---|
| 型號 | DXP-L21ZNEB |
| 防護等級 | IP66/IP67 |
| 信號輸出 | 開關信號（機械/感應）、模擬信號（4-20mA） |
| 工作溫度 | -40°C 至 +80°C |
| 電源要求 | 24V DC 或氣動供電 |
| 接口標準 | NAMUR 標準接口 |
| 防爆認證 | ATEX、IECEx |
| 材料 | 鋁合金或不銹鋼外殼 |
應用領域
石油天然氣
- 用于閥門位置監控，確保管道運輸?shù)陌踩透咝н\(yùn)行。
化工和制藥
- 在腐蝕性環境下進行過程控制，適應高溫高壓工況。
能源
- 發電廠和能源系統中的閥門狀態檢測和控制。
水處理
- 用于污水處理和供水系統的流量控制和監測。
優勢
- 高可靠性：適用于惡劣環境，減少意外停機。
- 靈活性強：支持多種輸出和安裝選項，易于集成到現有系統。
- 維護簡單：模塊化設計降低了維護成本。
英文資料：
TopWorx DXP-L21ZNEB valve positioner is a high-performance and reliable pneumatic equipment widely used in valve position monitoring and feedback systems in the process control industry. This device can operate normally in harsh industrial environments and provide accurate valve position detection and signal output, suitable for the chemical, oil and gas, energy, and water treatment industries.
Main functions and features
Valve position detection
Accurately detect the position of valve switches and transmit signals to the control system.
Provide real-time feedback to ensure efficient operation of the process.
Durable and sturdy design
The shell is made of anti-corrosion materials, with a protection level of IP66/IP67.
Capable of withstanding extreme temperatures, humidity, and corrosive environments.
Multiple signal outputs
Supports multiple output signal formats, including switch signals and analog signals.
Can be used for integration with PLC, DCS, and SCADA systems.
Easy to install and maintain
Compact design, easy to install on various types of valves.
Modular structure simplifies maintenance and replacement work.
Certification and Standards
Suitable for hazardous locations through multiple international certifications, including ATEX and IECEx.
Compliant with explosion-proof and intrinsic safety standards.
technical specifications
Parameter details
Model DXP-L21ZNEB
Protection level IP66/IP67
Signal output switch signal (mechanical/inductive), analog signal (4-20mA)
Working temperature -40 ° C to+80 ° C
Power requirement: 24V DC or pneumatic power supply
Interface standard NAMUR standard interface
Explosion proof certification ATEX, IECEx
Material: Aluminum alloy or stainless steel shell
application area
Oil and gas
Used for valve position monitoring to ensure safe and efficient operation of pipeline transportation.
Chemical and Pharmaceutical
Process control in corrosive environments to adapt to high temperature and high pressure conditions.
energy
Valve status detection and control in power plants and energy systems.
water treatment
Used for flow control and monitoring in sewage treatment and water supply systems.
advantage
High reliability: suitable for harsh environments, reducing unexpected downtime.
Strong flexibility: Supports multiple output and installation options, easy to integrate into existing systems.
Easy maintenance: Modular design reduces maintenance costs.

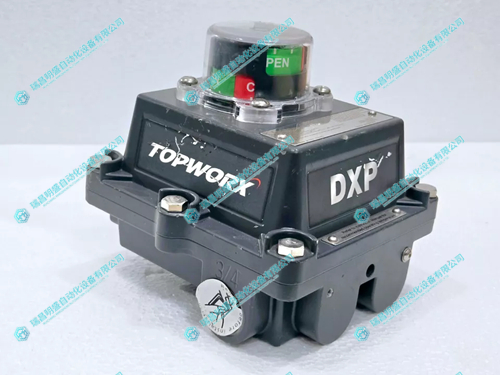

2.產 品 展 示
