IS200WETAH1AEC 接口模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：
IS200WETAH1AEC 接口模塊是由 GE（通用電氣）設計和制造的工業接口模塊，廣泛應用于工業自動化和能源管理系統中。該模塊通常作為控制系統的一部分，用于實現信號的傳輸、處理和轉換，與控制器或其他設備無縫連接。
產品特點
信號轉換與處理：
- 支持多種類型的輸入/輸出信號，能夠?qū)⑽锢硇盘?hào)轉換為數字信號或反向操作。
- 提供高精度信號處理，確保數據的準確性和實時性。
工業級設計：
- 采用耐用材料制造，能夠在高溫、潮濕或高震動環境中穩定運行。
- 通過嚴格的工業認證，確保模塊長期可靠工作。
高兼容性：
- 與 GE 的 Mark VI、Mark VIe 等分布式控制系統（DCS）兼容性良好。
- 支持標準通信協議，便于與其他控制系統或設備集成。
模塊化結構：
- 可輕松集成到現有系統中，并支持熱插拔，便于更換和升級。
- 模塊化設計提供靈活的擴展能力，適應不同項目需求。
實時監控與診斷：
- 支持自診斷功能，可實時監控模塊的運行狀態和健康狀況。
- 提供報警功能，幫助及時發現和排除故障。
技術規格
| 參數 | 描述 |
|---|---|
| 型號 | IS200WETAH1AEC |
| 接口類型 | 多種信號類型接口，具體視應用而定 |
| 兼容系統 | GE Mark VI、Mark VIe 控制系統 |
| 輸入/輸出支持 | 模擬信號、數字信號、通信信號 |
| 工作電壓 | 工業標準電壓范圍，支持穩壓功能 |
| 工作溫度 | -30°C 至 70°C |
| 抗干擾能力 | 符合 IEC 標準，具有優異的電磁兼容性 |
| 安裝方式 | 機架式或模塊化安裝 |
| 診斷功能 | 支持故障檢測和實時報警 |
應用領域
發電廠控制系統：
- 應用于燃?xì)廨啓C(jī)、蒸汽輪機等發電設備的信號監控和數據處理。
石油和天然氣：
- 在油氣處理設施中，用于監控壓力、流量和溫度等參數。
工業自動化：
- 用于制造業中的過程控制和設備監控，優化生產效率。
水處理與環保：
- 管理水處理和環保設備的數據采集與信號傳輸。
智能電網：
- 集成到智能電網系統中，用于能量管理和設備控制。
英文資料：
The IS200WETAH1AEC interface module is an industrial interface module designed and manufactured by GE, widely used in industrial automation and energy management systems. This module is typically used as part of a control system to achieve signal transmission, processing, and conversion, seamlessly connecting with controllers or other devices.
Product Features
Signal Conversion and Processing:
Supports multiple types of input/output signals, capable of converting physical signals into digital signals or performing reverse operations.
Provide high-precision signal processing to ensure the accuracy and real-time performance of data.
Industrial grade design:
Made of durable materials, it can operate stably in high temperature, humidity, or high vibration environments.
Through strict industrial certification, ensure the long-term reliable operation of the module.
High compatibility:
Good compatibility with GE's distributed control systems (DCS) such as Mark VI and Mark VIe.
Support standard communication protocols for easy integration with other control systems or devices.
Modular structure:
It can be easily integrated into existing systems and supports hot swapping, making it easy to replace and upgrade.
Modular design provides flexible scalability to meet different project requirements.
Real time monitoring and diagnosis:
Support self diagnostic function, which can monitor the running status and health status of the module in real time.
Provide alarm function to help detect and troubleshoot faults in a timely manner.
technical specifications
Parameter description
Model IS200WETAH1AEC
Multiple signal types of interfaces, depending on the application
Compatible with GE Mark VI and Mark VIe control systems
Input/output supports analog signals, digital signals, and communication signals
Industrial standard voltage range for working voltage, supporting voltage stabilization function
Working temperature -30 ° C to 70 ° C
The anti-interference ability complies with IEC standards and has excellent electromagnetic compatibility
Installation method: rack mounted or modular installation
Diagnostic function supports fault detection and real-time alarm
application area
Power plant control system:
Applied to signal monitoring and data processing of power generation equipment such as gas turbines and steam turbines.
Oil and gas:
In oil and gas processing facilities, it is used to monitor parameters such as pressure, flow rate, and temperature.
Industrial automation:
Used for process control and equipment monitoring in manufacturing to optimize production efficiency.
Water treatment and environmental protection:
Manage data collection and signal transmission for water treatment and environmental protection equipment.
Smart grid:
Integrated into smart grid systems for energy management and device control.

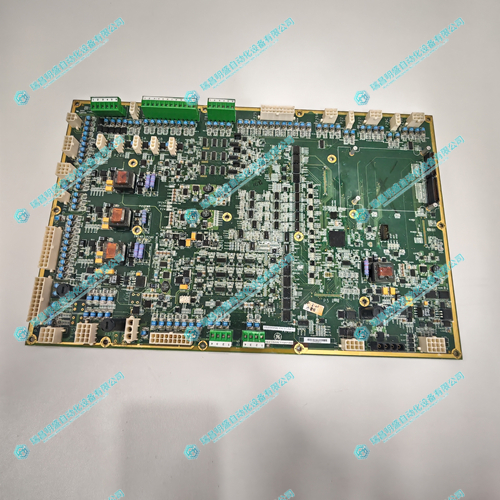

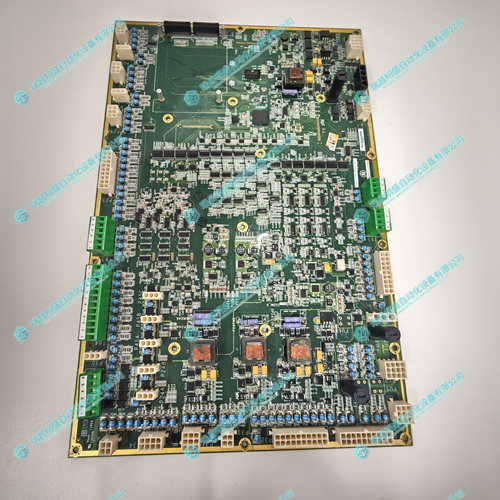

2.產 品 展 示
