BENDER IRDH265-2 絕緣監控設備 PDF資料
1.產 品 資 料 介 紹：
中文資料：
BENDER IRDH265-2 絕緣監控設備 是一款用于監測電氣系統中絕緣狀態的先進設備，廣泛應用于電力、工業自動化、建筑以及其他需要監控絕緣狀態的應用場合。該設備特別適用于直流電系統和低壓電氣設備的絕緣監測，可以幫助用戶實時檢測絕緣故障，從而提高系統的安全性和可靠性。
主要功能與特性：
絕緣監測：
- BENDER IRDH265-2 主要用于監測電氣系統的絕緣狀況，檢測電氣設備和電纜之間是否存在絕緣故障。其目標是提前識別任何絕緣問題，避免電氣系統因絕緣故障而導致的危險。
- 該設備可用于監測 IT系統（不接地系統） 或 LPS系統（低壓系統） 中的絕緣狀態，確保無地電流泄漏，并防止系統運行中的故障。
高精度檢測：
- IRDH265-2 配備高精度的檢測技術，可以對電氣系統的絕緣電阻進行精確測量。設備能夠檢測非常小的電流泄漏，并且能夠在絕緣下降到預設的危險閾值之前發出報警，從而保證系統的安全。
- 它采用了 數字化信號處理技術，能夠提高測量的準確性和穩定性，適用于復雜電氣環境中的檢測任務。
寬廣的工作電壓范圍：
- BENDER IRDH265-2 能夠支持多種電壓等級的系統監測，通常適用于 AC 50/60 Hz 的交流電系統 和 DC 系統（如直流電池和直流電力傳輸系統）。
- 適用的電壓范圍廣泛，能夠滿足不同工業環境下的監測需求。
報警與預警功能：
- 設備內建有多個報警設置，一旦檢測到電氣系統中的絕緣電阻下降到設定的臨界值（通常為幾十兆歐姆），即會自動發出視覺和聲音報警，提示操作人員及時采取措施。
- 具有 多級報警輸出，可以接入外部警報裝置、可編程控制器（PLC）等系統，進行更復雜的報警聯動和響應。
持續在線監測：
- IRD265-2 提供24小時不間斷的在線監測功能，能夠持續對電氣系統進行實時檢測，保證在系統運行過程中始終處于安全狀態。
- 設備能夠記錄監測數據和報警歷史，并可通過 USB接口或Modbus通信協議 導出數據，供后續分析和報表生成。
用戶友好的操作界面：
- BENDER IRDH265-2 配備直觀的 LCD顯示屏，顯示當前絕緣狀態、電阻值以及報警信息，方便用戶查看和操作。
- 用戶可通過設備的 按鈕操作 或通過 遠程監控軟件 進行設備配置和監控，支持遠程調節報警閾值和其他參數。
可擴展性與兼容性：
- 該設備支持與其他 Bender產品 的集成，特別是與 絕緣監測控制系統（IMS） 和其他工業控制設備的集成，形成完整的監測和報警系統。
- Modbus RTU 協議的支持使得 IRDH265-2 可以輕松與 PLC、SCADA系統等進行數據交換，便于大規模工業應用。
高環境適應性：
- 該設備設計堅固，具備較強的 抗干擾能力 和 環境適應能力。即使在高溫、潮濕或電磁干擾較強的工業環境中，IRDH265-2 也能穩定工作。
- 它的外殼符合 IP54防護等級，能夠防止灰塵和水滴的侵入，適用于要求高環境防護的工業應用。
英文資料：
BENDER IRDH265-2 insulation monitoring equipment is an advanced device used to monitor the insulation status in electrical systems, widely used in power, industrial automation, construction, and other applications that require monitoring the insulation status. This device is particularly suitable for insulation monitoring of DC power systems and low-voltage electrical equipment, which can help users detect insulation faults in real time, thereby improving the safety and reliability of the system.
Main functions and features:
Insulation monitoring:
BENDER IRDH265-2 is mainly used to monitor the insulation condition of electrical systems and detect insulation faults between electrical equipment and cables. Its goal is to identify any insulation issues in advance and avoid the danger caused by insulation faults in the electrical system.
This device can be used to monitor the insulation status in IT systems (ungrounded systems) or LPS systems (low-voltage systems), ensure no ground current leakage, and prevent faults during system operation.
High precision detection:
IRDH265-2 is equipped with high-precision detection technology, which can accurately measure the insulation resistance of electrical systems. The device is capable of detecting very small current leaks and issuing an alarm before the insulation drops to a predetermined danger threshold, ensuring the safety of the system.
It adopts digital signal processing technology, which can improve the accuracy and stability of measurement, and is suitable for detection tasks in complex electrical environments.
Wide working voltage range:
BENDER IRDH265-2 is capable of supporting system monitoring at multiple voltage levels and is typically suitable for AC 50/60 Hz AC systems and DC systems (such as DC batteries and DC power transmission systems).
The applicable voltage range is wide, which can meet the monitoring needs in different industrial environments.
Alarm and warning functions:
The device has multiple built-in alarm settings. Once the insulation resistance in the electrical system drops to the set critical value (usually tens of megaohms), it will automatically issue visual and audible alarms to prompt operators to take timely measures.
It has multi-level alarm output and can be connected to external alarm devices, programmable logic controllers (PLCs) and other systems for more complex alarm linkage and response.
Continuous online monitoring:
IRD265-2 provides 24-hour uninterrupted online monitoring function, which can continuously perform real-time detection of the electrical system to ensure that it is always in a safe state during system operation.
The device is capable of recording monitoring data and alarm history, and can export data through USB interface or Modbus communication protocol for subsequent analysis and report generation.
User friendly operating interface:
BENDER IRDH265-2 is equipped with an intuitive LCD display screen that shows the current insulation status, resistance value, and alarm information, making it convenient for users to view and operate.
Users can configure and monitor the device through button operations or through remote monitoring software, supporting remote adjustment of alarm thresholds and other parameters.
Scalability and compatibility:
This device supports integration with other Bender products, especially with insulation monitoring and control systems (IMS) and other industrial control equipment, forming a complete monitoring and alarm system.
The support of Modbus RTU protocol enables IRDH265-2 to easily exchange data with PLCs, SCADA systems, etc., making it convenient for large-scale industrial applications.
High environmental adaptability:
The device is designed to be sturdy, with strong anti-interference ability and environmental adaptability. Even in industrial environments with high temperature, humidity, or strong electromagnetic interference, IRDH265-2 can work stably.
Its casing meets the IP54 protection level, which can prevent the intrusion of dust and water droplets, making it suitable for industrial applications that require high environmental protection.

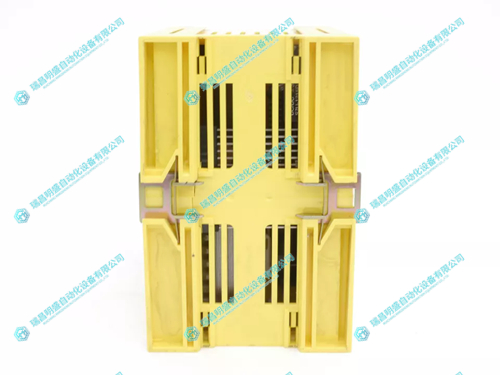

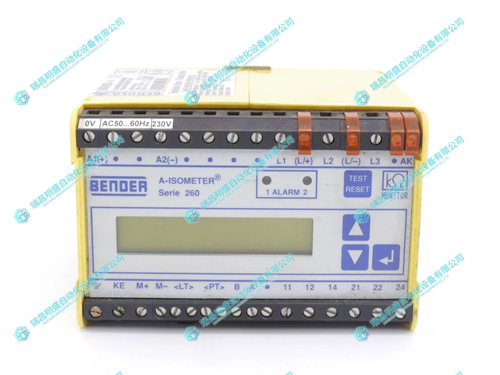

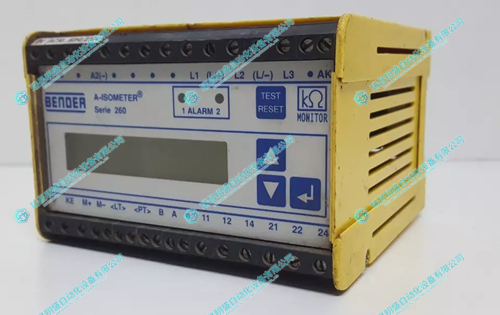

2.產 品 展 示
