VIBRO-METER VM600 IOCN 200-566-000-113輸入/輸出板 PDF資料
1.產 品 資 料 介 紹：
中文資料：
VIBRO-METER VM600 IOCN 200-566-000-113 輸入/輸出板是一種廣泛應用于工業環境的模塊化監測系統組件，通常用于關鍵設備的振動監測和狀態分析。以下是關于此模塊的詳細信息：
產品特點
模塊化設計
- 可集成到VM600監控系統中，與其他模塊（如CPU、信號處理模塊等）無縫協作。
- 支持熱插拔功能，便于維護和更換。
輸入/輸出功能
- 提供多種輸入信號支持，包括模擬信號、電壓信號以及數字信號。
- 支持多通道輸出，用于數據傳輸或系統報警。
高可靠性
- 設計符合工業標準，適應嚴苛的工作環境。
- 具有電磁兼容性和抗干擾設計，確保系統穩定性。
接口靈活性
- 配備多種通信協議，如RS-485、Modbus，便于與上位機或其他監控系統集成。
- 支持報警輸出和遠程配置功能。
典型應用
旋轉機械監測
- 用于監測渦輪機、壓縮機、發電機等旋轉設備的振動和機械狀態。
狀態監測
- 集成于預測性維護系統中，通過實時監測設備狀態減少停機時間和維護成本。
工業自動化
- 應用于石油、天然氣、電力、航空等領域的關鍵設備運行監控。
技術參數
- 輸入信號：支持多種輸入類型，具體參數需參照產品手冊。
- 輸出類型：電流環輸出、電壓信號或繼電器信號。
- 供電電壓：通常為24V DC（具體需參考產品說明書）。
- 工作環境：適合寬溫范圍和高濕度的工業環境。
優點
- 高度靈活的信號配置能力。
- 穩定可靠的長期運行能力。
- 易于集成到復雜監控系統中。
英文資料：
The VIBRO-METER VM600 IOCN 200-566-000-113 input/output board is a modular monitoring system component widely used in industrial environments, typically for vibration monitoring and status analysis of critical equipment. The following is detailed information about this module:
Product Features
Modular design
It can be integrated into the VM600 monitoring system and seamlessly collaborate with other modules such as CPU, signal processing module, etc.
Support hot swappable function for easy maintenance and replacement.
Input/output function
Provide support for multiple input signals, including analog signals, voltage signals, and digital signals.
Support multi-channel output for data transmission or system alarm.
high reliability
Designed to meet industrial standards and adapt to harsh working environments.
Featuring electromagnetic compatibility and anti-interference design to ensure system stability.
Interface flexibility
Equipped with multiple communication protocols, such as RS-485 and Modbus, for easy integration with upper computers or other monitoring systems.
Support alarm output and remote configuration functions.
Typical applications
Rotating machinery monitoring
Used to monitor the vibration and mechanical status of rotating equipment such as turbines, compressors, generators, etc.
Status monitoring
Integrated into predictive maintenance systems, reducing downtime and maintenance costs through real-time monitoring of equipment status.
industrial automation
Key equipment operation monitoring applied in the fields of oil, natural gas, electricity, aviation, etc.
technical parameter
Input signal: Supports multiple input types, specific parameters need to refer to the product manual.
Output type: current loop output, voltage signal, or relay signal.
Power supply voltage: usually 24V DC (please refer to the product manual for details).
Work environment: Suitable for industrial environments with a wide temperature range and high humidity.
advantage
Highly flexible signal configuration capability.
Stable and reliable long-term operational capability.
Easy to integrate into complex monitoring systems.

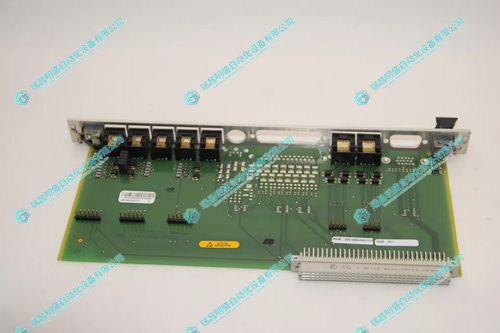

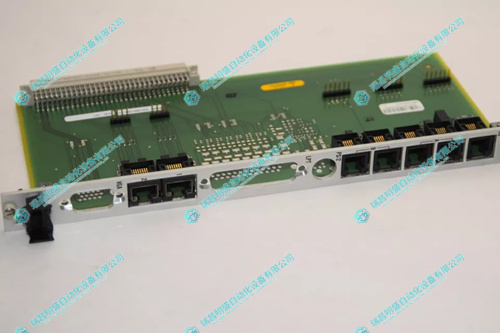

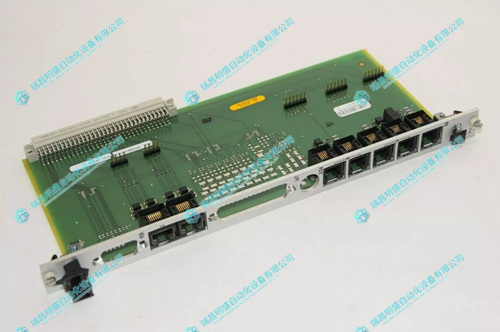

2.產 品 展 示
