ABB IPMON01 電源監視器模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：
IPMON01 電源監視器模塊是 ABB 自動化系統中的關鍵設備，設計用于監控工業自動化系統中電源的狀態，確保供電的連續性和穩定性。它在實時監測電源性能、檢測電源故障并提供報警信號等方面起著重要作用。
產品特點
電源狀態監測
- 實時監測輸入電源電壓、電流和頻率，確保電源在正常工作范圍內。
- 具備快速檢測電源異常的功能，例如欠壓、過壓或電源中斷。
報警與指示
- 支持多種報警模式，包含 LED 狀態指示和信號輸出。
- 提供清晰的故障診斷，便于快速定位和解決問題。
模塊化設計
- 標準模塊化尺寸，便于在控制系統中安裝和集成。
- 支持熱插拔功能，可在線更換而不影響系統運行。
高可靠性
- 工業級設計，適應嚴苛環境，例如高溫、高濕和高電磁干擾場景。
- 提供電源冗余支持，確保系統可靠性。
技術參數
- 輸入電壓范圍：AC 或 DC（具體電壓范圍需參考產品手冊）
- 電壓檢測范圍：0-250V（具體范圍可能因型號而異）
- 頻率檢測范圍：50Hz 或 60Hz（支持寬頻范圍）
- 環境條件：
- 工作溫度：-20°C 至 +60°C
- 存儲溫度：-40°C 至 +85°C
- 濕度：5%-95%，無冷凝
- 接口類型：標準螺絲端子或?qū)Ｓ眠B接器，支持與其他模塊的無縫連接。
- 報警輸出：可編程信號輸出，支持連接報警設備或上位系統。
英文資料：
The IPMON01 power monitor module is a key equipment in ABB automation systems, designed to monitor the status of power sources in industrial automation systems, ensuring the continuity and stability of power supply. It plays an important role in real-time monitoring of power performance, detecting power failures, and providing alarm signals.
Product Features
Power status monitoring
Real time monitoring of input power supply voltage, current, and frequency to ensure that the power supply is within normal operating range.
Capable of quickly detecting power abnormalities, such as undervoltage, overvoltage, or power interruption.
Alarm and indication
Supports multiple alarm modes, including LED status indication and signal output.
Provide clear fault diagnosis for quick location and problem-solving.
Modular design
Standard modular size for easy installation and integration in control systems.
Support hot swappable function, can be replaced online without affecting system operation.
high reliability
Industrial grade design, suitable for harsh environments such as high temperature, high humidity, and high electromagnetic interference scenarios.
Provide power redundancy support to ensure system reliability.
technical parameter
Input voltage range: AC or DC (specific voltage range should refer to the product manual)
Voltage detection range: 0-250V (specific range may vary by model)
Frequency detection range: 50Hz or 60Hz (supports wide frequency range)
Environmental conditions:
Working temperature:- 20 ° C to+60 ° C
Storage temperature:- 40 ° C to+85 ° C
Humidity: 5% -95%, no condensation
Interface type: standard screw terminal or dedicated connector, supporting seamless connection with other modules.
Alarm output: Programmable signal output, supporting connection to alarm devices or upper level systems.

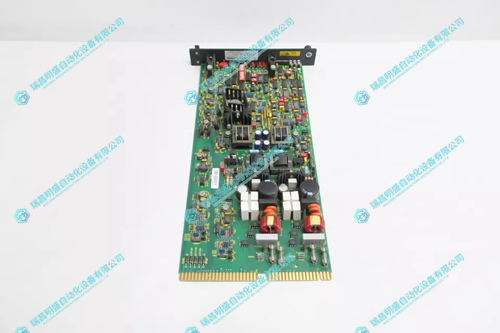

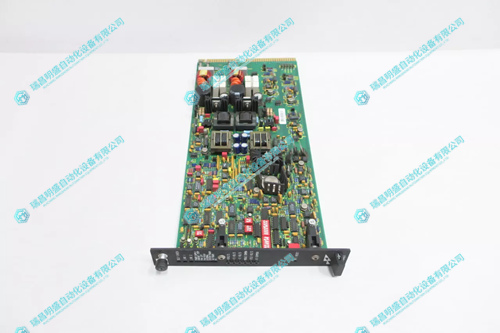

2.產 品 展 示
