LAM 810-327754-003斷路器模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：
LAM 810-327754-003 斷路器模塊 是專為泛林半導體（LAM Research）設備設計的電力管理組件。作為一款關鍵模塊，它主要用于控制和保護設備的電力供應，確保設備在半導體制造過程中運行穩定，并在電力異常（如過載、短路）時提供保護。
產品特點
高效電力管理：
- 提供電路的斷開與連接功能，以控制設備的電力供應。
- 內置電流和電壓監測功能，實時檢測電路狀態。
過載和短路保護：
- 在電流過載或短路情況下，能夠快速斷開電路，保護設備免受損壞。
- 符合工業安全標準，提供穩定可靠的電力保護。
模塊化設計：
- 結構緊湊，適用于復雜的設備內部布局。
- 便于安裝、維護和更換，減少停機時間。
高可靠性：
- 使用工業級元器件，能夠在嚴苛的環境條件下（如高溫、高濕度）保持穩定運行。
- 擁有長使用壽命，適合長期連續工作場景。
兼容性：
- 專為 LAM 制造設備設計，與主控制系統無縫集成。
- 支持與其他電力分配和保護模塊配合使用。
技術規格（假設參考）
| 參數 | 說明 |
|---|---|
| 額定電流 | 具體值需根據設備型號確認（常見為 10A-50A） |
| 額定電壓 | 支持 120V AC 或 240V AC 或更高電壓 |
| 觸發機制 | 電子觸發或熱敏觸發 |
| 響應時間 | < 10ms（短路保護響應） |
| 環境溫度范圍 | -10°C 至 60°C |
| 外殼防護等級 | IP20 或更高 |
英文資料：
The LAM 810-327754-003 circuit breaker module is a power management component designed specifically for LAM Research equipment. As a key module, it is mainly used to control and protect the power supply of equipment, ensuring stable operation of the equipment in the semiconductor manufacturing process, and providing protection in case of power abnormalities such as overload and short circuit.
Product Features
Efficient power management:
Provide circuit disconnection and connection functions to control the power supply of equipment.
Built in current and voltage monitoring functions, real-time detection of circuit status.
Overload and short circuit protection:
In case of current overload or short circuit, it can quickly disconnect the circuit and protect the equipment from damage.
Compliant with industrial safety standards, providing stable and reliable power protection.
Modular design:
Compact structure, suitable for complex internal layout of equipment.
Easy to install, maintain, and replace, reducing downtime.
High reliability:
By using industrial grade components, it can maintain stable operation under harsh environmental conditions such as high temperature and high humidity.
Has a long service life and is suitable for long-term continuous work scenarios.
compatibility:
Specially designed for LAM manufacturing equipment, seamlessly integrated with the main control system.
Support for use in conjunction with other power distribution and protection modules.
Technical specifications (assuming reference)
Parameter Description
The specific value of rated current needs to be confirmed according to the equipment model (commonly 10A-50A)
Rated voltage supports 120V AC or 240V AC or higher voltage
Trigger mechanism: electronic trigger or thermal trigger
Response time<10ms (short circuit protection response)
Environmental temperature range -10 ° C to 60 ° C
Shell protection level IP20 or higher

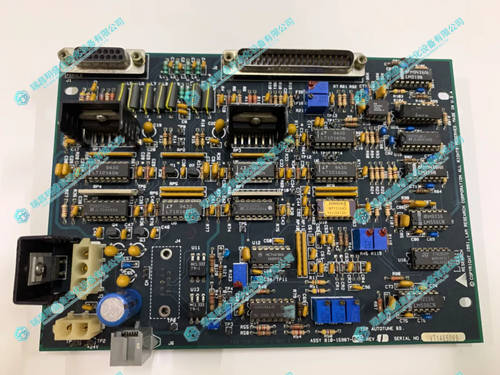

2.產 品 展 示
