LAM 810-210775-002交流電配電模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：
LAM 810-210775-002 交流電配電模塊 是泛林半導體（LAM Research）設備中的核心電氣組件之一，專為半導體制造設備設計，負責管理設備的交流電分配。該模塊能夠高效、安全地分配和控制設備運行所需的交流電源，同時提供電氣保護功能，確保設備的穩定性和可靠性。
產品特點
高效電源分配：
- 將主交流電源分配到設備的各個子系統或模塊。
- 支持多路輸出，滿足復雜設備對電源分配的需求。
過載保護：
- 內置過載保護功能，能夠在電流超過安全范圍時自動斷開電路。
- 提供短路和過流保護，防止電氣故障對設備造成損害。
緊湊設計：
- 模塊化結構，便于集成到設備內部。
- 緊湊的設計節省了設備空間，同時保持高效的散熱性能。
高可靠性：
- 使用工業級元器件，適應半導體制造的高要求環境。
- 支持長時間無故障運行，確保設備持續高效工作。
監控和診斷：
- 支持實時監測電源狀態（如電壓、電流）。
- 配備故障診斷功能，便于快速定位問題。
技術規格（假設參考）
| 參數 | 說明 |
|---|---|
| 輸入電壓 | 200-240 VAC 或設備需求的標準電壓 |
| 輸出通道數 | 4-8 路獨立輸出 |
| 最大輸出電流 | 每通道 10A-30A（需確認具體值） |
| 工作頻率 | 50/60 Hz |
| 保護功能 | 過載、過流、短路保護 |
| 工作溫度范圍 | 0°C 至 50°C |
| 接口類型 | 標準接線端子或模塊化連接器 |
| 尺寸 | 模塊化設計，符合設備安裝標準 |
| 認證 | 符合 CE、UL 或其他行業規范 |
英文資料：
The LAM 810-210775-002 AC power distribution module is one of the core electrical components in LAM Research equipment, designed specifically for semiconductor manufacturing equipment and responsible for managing the AC power distribution of the equipment. This module can efficiently and safely allocate and control the AC power required for equipment operation, while providing electrical protection functions to ensure the stability and reliability of the equipment.
Product Features
Efficient power distribution:
Distribute the main AC power to each subsystem or module of the equipment.
Supports multiple outputs to meet the power distribution needs of complex devices.
Overload protection:
Built in overload protection function, capable of automatically disconnecting the circuit when the current exceeds the safe range.
Provide short circuit and overcurrent protection to prevent electrical faults from causing damage to equipment.
Compact design:
Modular structure, easy to integrate into the device.
The compact design saves device space while maintaining efficient heat dissipation performance.
High reliability:
Using industrial grade components to adapt to the high demand environment of semiconductor manufacturing.
Support long-term trouble free operation to ensure continuous and efficient operation of the equipment.
Monitoring and Diagnosis:
Support real-time monitoring of power status (such as voltage and current).
Equipped with fault diagnosis function, it is easy to quickly locate problems.
Technical specifications (assuming reference)
Parameter Description
Input voltage of 200-240 VAC or standard voltage required by the equipment
Output channels 4-8 independent outputs
Maximum output current per channel 10A-30A (specific value to be confirmed)
Working frequency 50/60 Hz
Protection function overload, overcurrent, short circuit protection
Working temperature range: 0 ° C to 50 ° C
Interface type: standard terminal block or modular connector
Modular design of dimensions, in compliance with equipment installation standards
Certification in compliance with CE, UL, or other industry standards

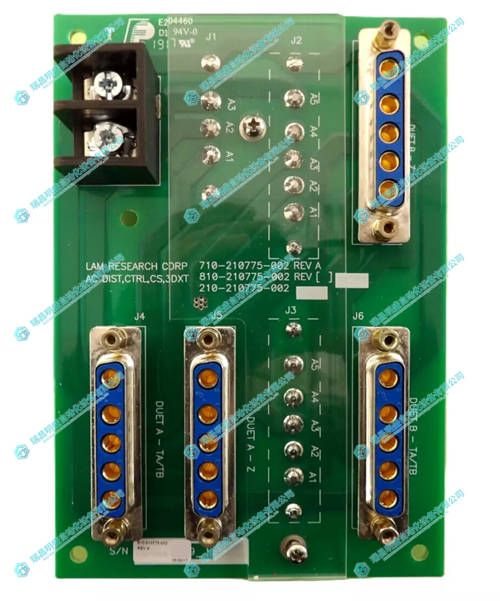

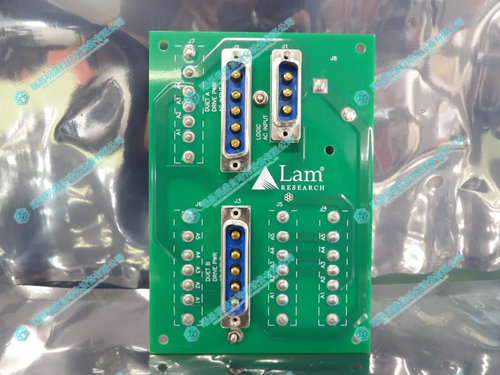

2.產 品 展 示
