LAM 810-495659R471電源供應模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：
LAM 810-495659R471 電源供應模塊 是泛林半導體（LAM Research）設備中的一款重要電源管理模塊，專為半導體制造設備設計，提供高效、穩定的電力供應。該模塊通常用于為設備的關鍵子系統提供電力，支持穩定運行，同時集成保護功能以應對電氣異常。
產品特點
高效電源轉換：
- 支持高功率密度設計，可為多種設備部件提供穩定電壓和電流。
- 高能效比，符合節能要求，減少電力浪費。
多功能保護：
- 集成過流、過壓、過溫等保護功能，確保設備運行安全。
- 自動恢復功能，可在故障解除后快速恢復正常運行。
緊湊設計：
- 模塊化設計，易于設備集成。
- 緊湊外形，節省設備空間。
寬電壓輸入范圍：
- 支持多種輸入電壓規格，適應全球不同地區的電力系統。
可靠性強：
- 工業級元器件，支持長時間穩定運行。
- 耐用性高，適合高負荷和復雜工況環境。
技術規格（假設參考）
| 參數 | 說明 |
|---|---|
| 輸入電壓范圍 | 100-240 VAC 或 48-60 VDC |
| 輸出電壓范圍 | 5V / 12V / 24V（視具體型號而定） |
| 最大輸出功率 | 500W - 1500W |
| 輸出通道數 | 多路獨立輸出 |
| 工作效率 | ≥90% |
| 保護功能 | 過流、過壓、過溫、短路保護 |
| 工作溫度范圍 | 0°C 至 70°C |
| 冷卻方式 | 風冷或被動散熱 |
| 接口類型 | 標準端子或模塊化接口 |
| 尺寸 | 模塊化設計，符合設備插槽規格 |
| 認證 | 符合 CE、UL、FCC 等國際標準 |
英文資料：
The LAM 810-495659R471 power supply module is an important power management module in LAM Research equipment, designed specifically for semiconductor manufacturing equipment to provide efficient and stable power supply. This module is typically used to provide power to critical subsystems of equipment, support stable operation, and integrate protection functions to address electrical anomalies.
Product Features
Efficient power conversion:
Supports high power density design, providing stable voltage and current for various device components.
High energy efficiency ratio, meeting energy-saving requirements, reducing power waste.
Multi functional protection:
Integrate overcurrent, overvoltage, overheating and other protection functions to ensure the safe operation of the equipment.
The automatic recovery function can quickly restore normal operation after the fault is resolved.
Compact design:
Modular design, easy to integrate with devices.
Compact appearance, saving equipment space.
Wide voltage input range:
Supports multiple input voltage specifications to adapt to power systems in different regions around the world.
Strong reliability:
Industrial grade components that support long-term stable operation.
High durability, suitable for high load and complex working environments.
Technical specifications (assuming reference)
Parameter Description
Input voltage range 100-240 VAC or 48-60 VDC
Output voltage range 5V/12V/24V (depending on specific model)
Maximum output power 500W-1500W
Multiple independent outputs with multiple output channels
Work efficiency ≥ 90%
Protection functions include overcurrent, overvoltage, overtemperature, and short-circuit protection
Working temperature range: 0 ° C to 70 ° C
Cooling method: air cooling or passive heat dissipation
Interface type: standard terminal or modular interface
Modular design of size, in compliance with equipment slot specifications
Certification complies with international standards such as CE, UL, FCC, etc

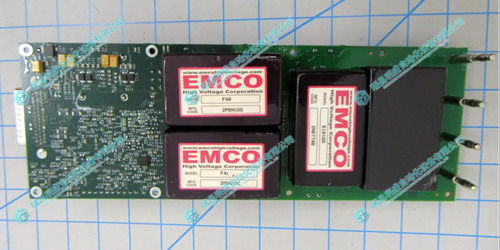

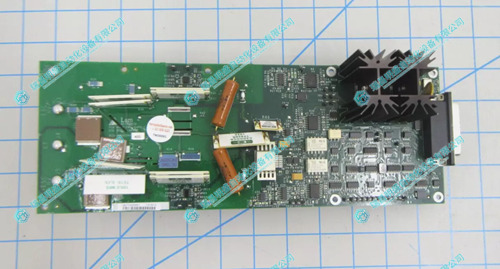

2.產 品 展 示
