LAM 810-328372-001電源驅動器卡 PDF資料
1.產 品 資 料 介 紹：
中文資料：
LAM 810-328372-001 電源驅動器卡 是泛林半導體（LAM Research）設備中的重要組件，專門設計用于提供精確的電源控制和分配。該電源驅動器卡能夠有效支持多個子系統的電力需求，確保設備在復雜的半導體制造工藝中穩定運行。
產品特點
精確電源控制：
- 提供多個獨立電源輸出通道，能夠精準調節每個通道的電壓和電流，以適應不同的工藝需求。
- 支持高動態范圍的電源調節，滿足設備在不同負載下的電力需求。
高能效與穩定性：
- 高能效設計，最大限度地降低能耗，提升設備的整體效率。
- 穩定的輸出性能，確保設備長時間運行時電源穩定性。
保護機制：
- 內置多種保護功能，如過流、過壓、過溫保護，能夠有效防止電源故障對設備造成損害。
- 提供自動恢復功能，在出現電力異常時，能夠迅速恢復正常運行。
模塊化設計：
- 緊湊的卡式結構，便于在設備中集成和更換。
- 標準化的接口，支持即插即用，提升維護和更換的便利性。
廣泛兼容性：
- 適配多種類型的半導體設備，為多個模塊或子系統提供電源。
技術規格（假設參考）
| 參數 | 說明 |
|---|---|
| 輸入電壓范圍 | 100-240 VAC 或 48-60 VDC |
| 輸出電壓范圍 | 5V / 12V / 24V（具體值依據型號） |
| 最大輸出功率 | 500W - 1500W |
| 輸出通道數 | 多路獨立輸出通道 |
| 工作效率 | ≥90% |
| 保護功能 | 過流、過壓、過溫、短路保護 |
| 工作溫度范圍 | 0°C 至 70°C |
| 冷卻方式 | 風冷或被動散熱 |
| 尺寸 | 符合設備插槽規格的卡式模塊 |
| 認證 | CE、UL、FCC等國際認證 |
英文資料：
The LAM 810-328372-001 power driver card is an important component in LAM Research equipment, specifically designed to provide precise power control and distribution. This power driver card can effectively support the power requirements of multiple subsystems, ensuring stable operation of equipment in complex semiconductor manufacturing processes.
Product Features
Accurate power control:
Provide multiple independent power output channels that can accurately adjust the voltage and current of each channel to meet different process requirements.
Support high dynamic range power regulation to meet the power requirements of devices under different loads.
High energy efficiency and stability:
High energy efficiency design minimizes energy consumption and enhances the overall efficiency of the equipment.
Stable output performance ensures power stability during long-term operation of the device.
Protection mechanism:
Built in multiple protection functions, such as overcurrent, overvoltage, and overtemperature protection, can effectively prevent power failures from causing damage to equipment.
Provide automatic recovery function, which can quickly restore normal operation in case of power abnormalities.
Modular design:
Compact card structure, easy to integrate and replace in equipment.
Standardized interfaces, supporting plug and play, enhance the convenience of maintenance and replacement.
Wide compatibility:
Adapt to various types of semiconductor devices and provide power to multiple modules or subsystems.
Technical specifications (assuming reference)
Parameter Description
Input voltage range 100-240 VAC or 48-60 VDC
Output voltage range 5V/12V/24V (specific value depends on model)
Maximum output power 500W-1500W
Multiple independent output channels with multiple output channels
Work efficiency ≥ 90%
Protection functions include overcurrent, overvoltage, overtemperature, and short-circuit protection
Working temperature range: 0 ° C to 70 ° C
Cooling method: air cooling or passive heat dissipation
Card modules with dimensions that meet the specifications of the device slot
Certification of international certifications such as CE, UL, FCC, etc

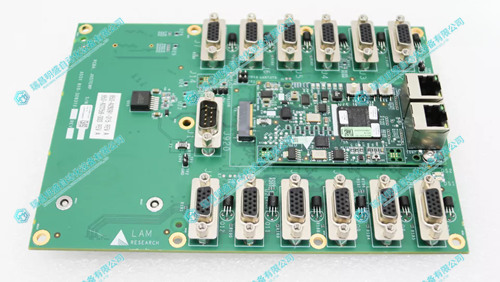

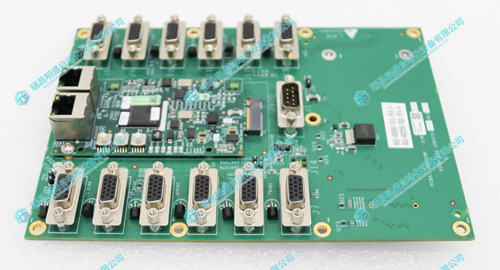

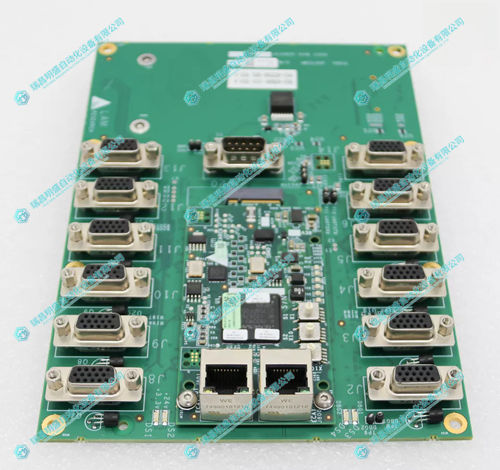

2.產 品 展 示
