CCC TIOC-555HD 控制器模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：
CCC TIOC-555HD 控制器模塊 是由 Compressor Controls Corporation (CCC) 開發的高性能工業控制模塊，主要應用于壓縮機和渦輪機控制系統。該模塊在復雜的工藝控制中發揮關鍵作用，提供精準的實時控制和信號處理，確保系統高效、安全運行。
核心功能：
實時控制與數據處理
- 高速處理器確保系統數據采集、處理與控制邏輯執行的實時性。
- 支持關鍵工藝參數的自動調節與優化，提高設備穩定性。
輸入/輸出 (I/O) 信號管理
- 提供多個通道，支持模擬量和數字量輸入/輸出信號處理。
- 與傳感器、執行器等設備無縫連接，確保精確數據傳輸與控制。
通信接口支持
- 支持標準工業通信協議（如 Modbus、Profibus、Ethernet 等）。
- 實現與上位機、DCS 系統及其他控制模塊的高效數據通信。
冗余與故障保護
- 支持冗余配置設計，增強系統可靠性，避免單點故障影響設備運行。
- 集成診斷功能，實現故障檢測與預警，減少系統停機時間。
模塊化設計
- 支持模塊化結構，便于系統集成、維護與升級，降低生命周期成本。
技術規格：
- 型號：TIOC-555HD
- 功能：實時控制與 I/O 管理
- 處理能力：
- 高速數據處理與邏輯執行
- 支持實時控制算法
- I/O 信號類型：
- 模擬輸入/輸出：多個高精度通道
- 數字輸入/輸出：適用于狀態監測與執行器控制
- 通信協議：
- Modbus
- Profibus
- Ethernet
- 供電電壓：24V DC
- 工作溫度：-40°C 至 +70°C
- 濕度范圍：5% 至 95%（非冷凝）
- 安裝方式：機架安裝
- 冗余支持：支持電源、通信和信號冗余
英文資料：
The CCC TIOC-555HD controller module is a high-performance industrial control module developed by Compressor Controls Corporation (CCC), mainly used in compressor and turbine control systems. This module plays a critical role in complex process control, providing precise real-time control and signal processing to ensure efficient and safe operation of the system.
Core functions:
Real time control and data processing
The high-speed processor ensures the real-time performance of system data acquisition, processing, and control logic execution.
Support automatic adjustment and optimization of key process parameters to improve equipment stability.
Input/Output (I/O) Signal Management
Provide multiple channels, supporting analog and digital input/output signal processing.
Seamless connection with sensors, actuators, and other devices to ensure precise data transmission and control.
Communication interface support
Supports standard industrial communication protocols such as Modbus, Profibus, Ethernet, etc.
Realize efficient data communication with the upper computer, DCS system, and other control modules.
Redundancy and fault protection
Support redundant configuration design, enhance system reliability, and avoid single point of failure affecting equipment operation.
Integrate diagnostic functions to achieve fault detection and warning, reducing system downtime.
Modular design
Support modular structure for system integration, maintenance, and upgrades, reducing lifecycle costs.
Technical specifications:
model: TIOC-555HD
Function: Real time control and I/O management
Processing ability:
High speed data processing and logic execution
Support real-time control algorithms
I/O signal type:
Analog input/output: multiple high-precision channels
Digital input/output: suitable for state monitoring and actuator control
Communication protocol:
Modbus
Profibus
Ethernet
Power supply voltage: 24V DC
Working temperature:- 40 ° C to+70 ° C
Humidity range: 5% to 95% (non condensing)
Installation method: rack installation
Redundancy support: Supports power, communication, and signal redundancy

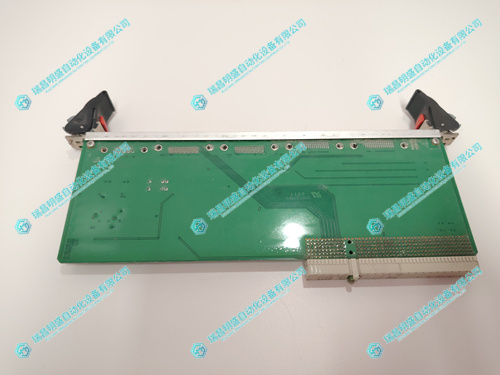

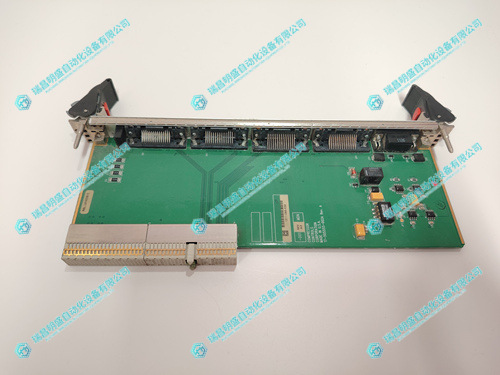

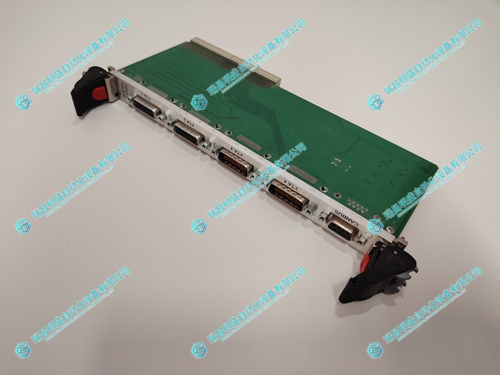

2.產 品 展 示
