Vanguard CPCI-10-D2機箱 PDF資料
1.產 品 資 料 介 紹：
中文資料：
Vanguard CPCI-10-D2 機箱 是一款用于工業級應用的 緊湊型 PCI (CPCI) 系統機箱，專為高性能計算和控制系統設計。該機箱具有出色的散熱能力、模塊化設計和強大的擴展性，廣泛應用于通信、自動化、國防、交通和工業控制領域。
核心特點：
緊湊型設計
- 采用 3U 或 6U CPCI 標準，確保高性能與小巧尺寸相結合，便于在受限空間中安裝。
模塊化架構
- 提供多個 CPCI 插槽，便于擴展 CPU、I/O 模塊、電源等多種功能。
- 支持系統管理模塊（如風扇控制、電源監控）與應用模塊。
高可靠性與穩定性
- 工業級設計，適應嚴苛的工作環境，包括高溫、振動、濕度等條件。
- 支持長時間穩定運行，適用于 7x24 小時連續工作場景。
高效散熱設計
- 內置高性能冷卻風扇，優化風道設計，確保模塊在高負載下維持低溫運行。
- 支持可更換式風扇，便于維護與升級。
高電源冗余與靈活性
- 支持冗余電源系統，確保供電穩定，避免因電源故障導致系統停機。
- 提供多種電源配置（如 250W、500W 等），滿足不同系統功耗需求。
易維護性
- 提供模塊化設計，便于插拔板卡與更換故障模塊，減少系統停機時間。
技術規格：
- 機箱類型：CPCI 標準機箱
- 插槽數量：
- 10 個 CompactPCI (CPCI) 插槽
- 支持系統插槽 + 擴展 I/O 插槽
- 外形尺寸：
- 3U/6U 尺寸，適應標準機架安裝
- 材質：高強度鋁合金外殼，具備抗振與耐腐蝕特性
- 電源系統：
- 冗余電源，支持 250W 至 500W 功率
- 輸入電壓：AC 100-240V，50/60Hz
- 散熱系統：
- 高效冷卻風扇（前后或側面風道設計）
- 風扇轉速自動調節，降低噪音
- 環境參數：
- 工作溫度：0°C 至 +55°C
- 存儲溫度：-40°C 至 +85°C
- 濕度范圍：5%-95%（非冷凝）
- 抗振動：符合 IEC 60068 標準
- 安裝方式：
- 19 英寸標準機架安裝
- 臺式或壁掛安裝選項
- 支持設備：
- CPCI 單板計算機 (SBC)
- I/O 模塊
- 電源模塊
- 擴展模塊
英文資料：
The Vanguard CPCI-10-D2 chassis is a compact PCI (CPCI) system chassis designed for industrial applications, specifically for high-performance computing and control systems. This chassis has excellent heat dissipation capability, modular design, and strong scalability, and is widely used in the fields of communication, automation, defense, transportation, and industrial control.
Core features:
Compact design
Adopting 3U or 6U CPCI standards ensures a combination of high performance and compact size, making it easy to install in confined spaces.
Modular architecture
Provide multiple CPCI slots for easy expansion of CPU, I/O modules, power supply, and other functions.
Support system management modules (such as fan control, power monitoring) and application modules.
High reliability and stability
Industrial grade design, suitable for harsh working environments, including high temperatures, vibrations, humidity, and other conditions.
Supports long-term stable operation and is suitable for 7x24 hour continuous work scenarios.
Efficient heat dissipation design
Built in high-performance cooling fan, optimized air duct design to ensure module maintains low-temperature operation under high loads.
Support replaceable fans for easy maintenance and upgrades.
High power redundancy and flexibility
Support redundant power supply system to ensure stable power supply and avoid system shutdown caused by power failure.
Provide multiple power configurations (such as 250W, 500W, etc.) to meet the power consumption requirements of different systems.
Maintainability
Provide modular design for easy insertion and removal of boards and replacement of faulty modules, reducing system downtime.
Technical specifications:
Chassis type: CPCI standard chassis
Number of slots:
10 CompactPCI (CPCI) slots
Support system slots+expansion I/O slots
External dimensions:
3U/6U size, suitable for standard rack installation
Material: High strength aluminum alloy shell, with anti vibration and anti-corrosion properties
Power system:
Redundant power supply, supporting 250W to 500W power
Input voltage: AC 100-240V，50/60Hz
Cooling system:
Efficient cooling fan (front, rear or side air duct design)
Automatic adjustment of fan speed to reduce noise
Environmental parameters:
Working temperature: 0 ° C to+55 ° C
Storage temperature:- 40 ° C to+85 ° C
Humidity range: 5% -95% (non condensing)
Anti vibration: Complies with IEC 60068 standard
Installation method:
19 inch standard rack installation
Desktop or wall mounted installation options
Supporting devices:
CPCI Single Board Computer (SBC)
I/O module
Power module
Expansion module

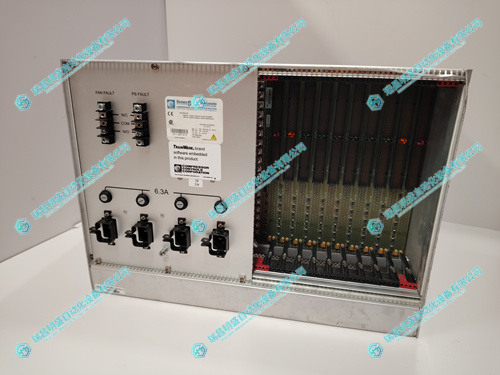

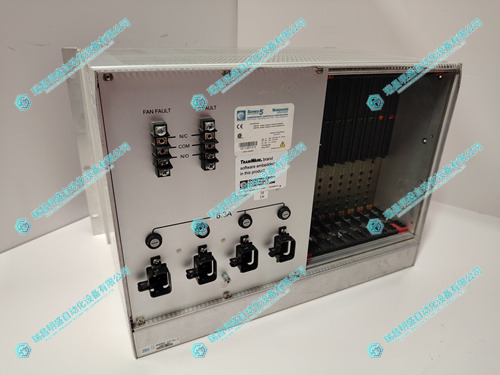

2.產 品 展 示
