NI NI-9205 模擬輸入模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：
NI NI-9205 模擬輸入模塊
型號: NI-9205
類型: 模擬輸入模塊
適用: National Instruments CompactDAQ 系統
1. 主要功能
- 模擬信號輸入: 該模塊用于從傳感器或其他設備接收模擬信號，并將其轉換為數字信號供系統處理。
- 多通道支持: 提供 16 個獨立的模擬輸入通道，可同時采集多個信號。
- 高精度: 提供 16 位分辨率的輸入，保證高精度的數據采集。
2. 應用領域
- 工業自動化: 用于自動化控制系統中的數據采集，監控和調整設備參數。
- 傳感器接口: 連接多種傳感器，如溫度傳感器、壓力傳感器等，采集相關信號。
- 測試與測量: 在實驗室和工程測試中，采集精確的模擬信號進行分析。
3. 性能特點
- 高采樣速率: 支持高達 250 kS/s 的采樣速率，確保快速數據采集。
- 寬輸入范圍: 輸入電壓范圍通常為 -10V 到 +10V，適應各種信號源。
- 抗干擾性: 強大的抗干擾設計，確保在惡劣環境中的可靠運行。
- 可編程增益: 支持可調增益，方便適應不同信號強度的輸入需求。
英文資料：
NI NI-9205 Analog Input Module
model: NI-9205
Type: Analog Input Module
Applicable: National Instruments CompactDAQ System
1. Main functions
Analog signal input: This module is used to receive analog signals from sensors or other devices and convert them into digital signals for system processing.
Multi channel support: Provides 16 independent analog input channels that can simultaneously collect multiple signals.
High precision: Provides 16 bit resolution input to ensure high-precision data acquisition.
2. Application Fields
Industrial automation: used for data acquisition, monitoring, and adjusting equipment parameters in automation control systems.
Sensor interface: Connect multiple sensors, such as temperature sensors, pressure sensors, etc., to collect relevant signals.
Testing and Measurement: Collecting accurate analog signals for analysis in laboratory and engineering testing.
3. Performance characteristics
High sampling rate: Supports sampling rates up to 250 kS/s to ensure fast data collection.
Wide input range: The input voltage range is usually -10V to+10V, suitable for various signal sources.
Anti interference: Powerful anti-interference design ensures reliable operation in harsh environments.
Programmable gain: Supports adjustable gain, making it easy to adapt to input requirements of different signal strengths.

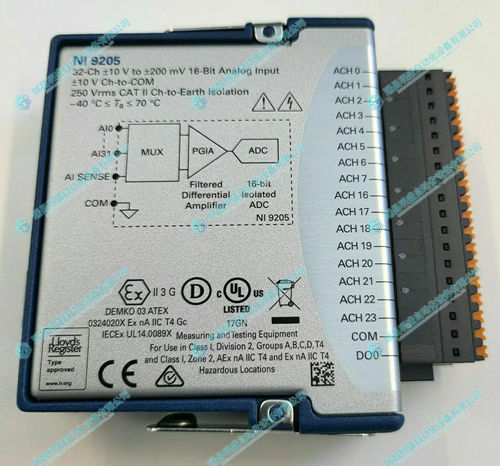

2.產 品 展 示
