Triconex 3504E 數字輸出模塊PDF資料
1.產 品 資 料 介 紹：
中文資料：
Triconex 3504E 數字輸出模塊 是 Triconex 系列安全控制系統中的一款數字輸出模塊，主要用于提供高安全性、可靠性的工業自動化解決方案。該模塊適用于關鍵應用，尤其是在過程控制、能源、化工等領域，提供安全、精確的輸出控制。
主要特點：
- 高安全性：作為 Triconex 系統的一部分，3504E 模塊符合功能安全標準，如IEC 61508，確保在關鍵操作中提供安全保障。
- 冗余設計：采用冗余結構，確保系統在出現故障時仍能持續穩定運行，增加系統的可靠性。
- 多通道輸出：支持多個獨立的數字輸出通道，能夠?yàn)槎喾N工業設備提供控制信號。
- 輸出保護：具備過載、短路等保護功能，確保輸出端口在異常情況下仍能保持穩定。
- 模塊化設計：采用模塊化設計，便于系統擴展和維護，減少了系統升級和維護的復雜性。
- 快速響應：響應時間短，能夠快速控制設備，適用于對反應速度有較高要求的場合。
- 診斷功能：內置診斷功能，可以實時監控模塊的健康狀態，并及時反饋系統故障信息，便于維護。
典型應用：
- 安全控制系統：廣泛應用于石油、化工、核電等對安全性要求極高的領域。
- 過程控制：用于生產過程中對設備、儀器的開關控制，確保系統的穩定運行。
- 緊急停機系統：可與其他安全模塊配合，用于觸發緊急停機或安全保護操作，防止重大故障或事故。
- 冗余系統：在關鍵設備和應用中，作為冗余輸出控制使用，確保系統高可用性。
性能優勢：
- 高可靠性：Triconex 3504E 模塊具有高可靠性和冗余設計，適合于要求高可靠性的工業應用。
- 精準控制：提供精確的數字輸出控制，滿足不同工況下的實時響應需求。
- 維護簡便：具有自診斷功能，故障可通過系統迅速檢測并排除，降低維護成本。
- 擴展性強：模塊化設計使得系統可以靈活擴展，滿足更復雜的控制需求。
英文資料：
The Triconex 3504E digital output module is a digital output module in the Triconex series of safety control systems, mainly used to provide high safety and reliability industrial automation solutions. This module is suitable for critical applications, especially in the fields of process control, energy, chemical engineering, etc., providing safe and accurate output control.
Main features:
High security: As part of the Triconex system, the 3504E module complies with functional safety standards such as IEC 61508, ensuring safety during critical operations.
Redundant design: Adopting a redundant structure to ensure that the system can continue to operate stably in the event of a failure, increasing the reliability of the system.
Multi channel output: Supports multiple independent digital output channels and can provide control signals for various industrial equipment.
Output protection: It has overload, short circuit and other protection functions to ensure that the output port can remain stable in abnormal situations.
Modular design: Adopting modular design facilitates system expansion and maintenance, reducing the complexity of system upgrades and maintenance.
Quick response: Short response time, able to quickly control equipment, suitable for occasions with high requirements for response speed.
Diagnostic function: Built in diagnostic function, which can monitor the health status of the module in real time and provide timely feedback on system fault information for easy maintenance.
Typical applications:
Safety control system: widely used in fields with extremely high safety requirements such as petroleum, chemical, and nuclear power.
Process control: used for on/off control of equipment and instruments during the production process to ensure the stable operation of the system.
Emergency shutdown system: can be used in conjunction with other safety modules to trigger emergency shutdown or safety protection operations, preventing major malfunctions or accidents.
Redundant system: Used as redundant output control in critical equipment and applications to ensure high availability of the system.
Performance advantages:
High reliability: The Triconex 3504E module features high reliability and redundancy design, making it suitable for industrial applications that require high reliability.
Precise control: Provides precise digital output control to meet real-time response requirements under different operating conditions.
Easy maintenance: With self diagnostic function, faults can be quickly detected and eliminated through the system, reducing maintenance costs.
Strong scalability: Modular design allows the system to be flexibly expanded to meet more complex control requirements.

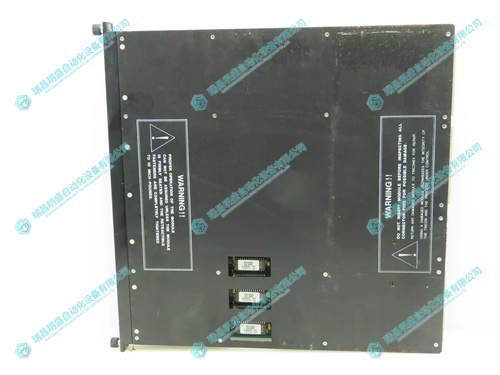

2.產 品 展 示
