Bently 3500/50 286566-02轉速計模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：
Bently Nevada 3500/50 (286566-02) 轉速計模塊 是 Bently Nevada 3500 系列中用于監測旋轉機械轉速的重要模塊。它通過對轉速、零轉速和過速的監測，提供關鍵的保護和控制功能，適用于廣泛的工業領域。
產品概述
| 屬性 | 詳情 |
|---|---|
| 型號 | 3500/50 |
| 訂貨號 | 286566-02 |
| 設備類型 | 轉速計模塊（Tachometer Module） |
| 系列 | Bently Nevada 3500 系列 |
| 主要功能 | 轉速監測、過速保護、零速檢測 |
| 安裝位置 | 安裝在 3500 框架中，可作為獨立模塊使用 |
關鍵特點
高精度轉速監測：
- 能夠監測旋轉機械的實際轉速，提供實時數據。
- 支持從 1 至 120,000 轉/分鐘的廣泛測量范圍。
多種報警功能：
- 支持零轉速、過速和接近轉速等警報。
- 可設置報警閾值，實現靈活的運行狀態監控。
雙通道設計：
- 提供兩個完全獨立的監測通道，適用于冗余或多點監測需求。
靈活輸入：
- 支持各種傳感器輸入，如磁阻式傳感器、渦流探頭和光學傳感器。
- 支持多種傳感器輸出信號類型，包括 TTL 和脈沖。
數據接口：
- 與 3500 系列系統無縫集成，可通過系統顯示和配置工具訪問數據。
模塊化設計：
- 易于安裝、配置和維護。
- 支持在線熱插拔，無需停機即可更換模塊。
英文資料：
The Bently Nevada 3500/50 (286566-02) tachometer module is an important module in the Bently Nevada 3500 series used to monitor the rotational speed of rotating machinery. It provides critical protection and control functions through monitoring of rotational speed, zero speed, and overspeed, and is suitable for a wide range of industrial fields.
Product Overview
Attribute Details
Model 3500/50
Order number 286566-02
Equipment type Tachometer Module
Bently Nevada 3500 Series
Main functions: speed monitoring, overspeed protection, zero speed detection
Installed in the 3500 frame, it can be used as an independent module
Key features
High precision speed monitoring:
Capable of monitoring the actual rotational speed of rotating machinery and providing real-time data.
Supports a wide measurement range from 1 to 120000 revolutions per minute.
Multiple alarm functions:
Support alarms for zero speed, over speed, and near speed.
Alarm thresholds can be set to achieve flexible monitoring of operational status.
Dual channel design:
Provide two completely independent monitoring channels, suitable for redundant or multi-point monitoring needs.
Flexible input:
Supports various sensor inputs, such as magneto resistive sensors, eddy current probes, and optical sensors.
Supports multiple types of sensor output signals, including TTL and pulse.
Data interface:
Seamless integration with the 3500 series system, data can be accessed through system display and configuration tools.
Modular design:
Easy to install, configure, and maintain.
Support online hot swapping, modules can be replaced without shutting down.

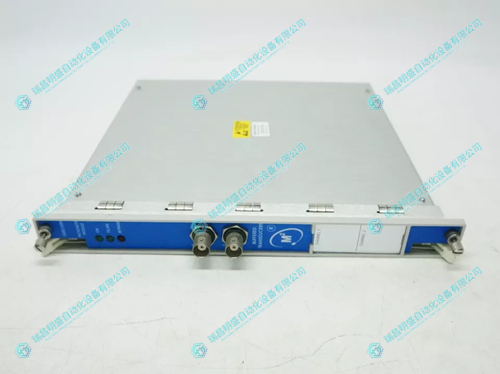

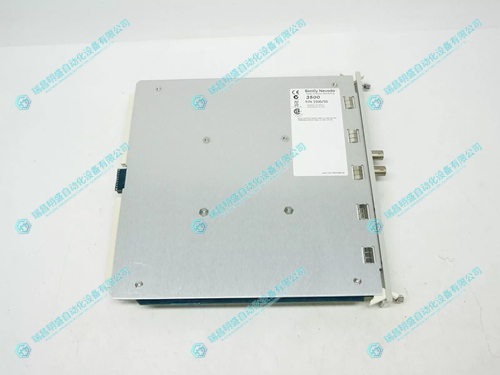

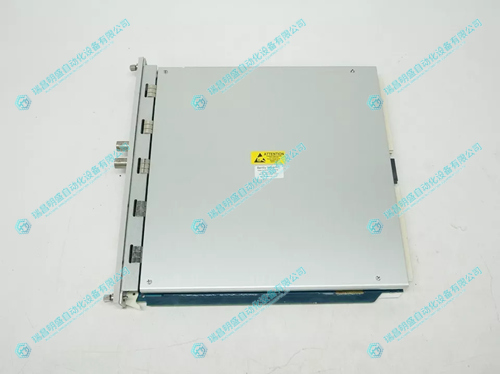

2.產 品 展 示
