GE IS200TRLYS1B 輸出終端板 PDF資料
1.產 品 資 料 介 紹：
中文資料：
GE IS200TRLYS1B 輸出終端板 是 GE（通用電氣）公司生產的用于工業自動化系統中的輸出終端板，通常作為控制系統中的一個重要組件，廣泛應用于發電、石油化工、電力、自動化等領域。這種終端板的作用主要是實現控制系統與執行設備之間的信號傳輸，特別是處理控制信號的輸出部分。
產品特點
高可靠性
- 設計用于工業環境，能在高溫、濕度和電磁干擾等惡劣條件下穩定運行。
多通道輸出
- 提供多個輸出通道，能夠同時控制多個外部設備，具有較高的輸出功率。
輸出信號類型支持
- 支持多種類型的輸出信號，包括繼電器輸出、數字輸出、模擬輸出等。
模塊化設計
- 具備靈活的模塊化結構，便于與其他控制模塊和設備集成。
狀態指示功能
- 配有狀態指示燈或其他指示方式，便于實時監控終端板的運行狀態。
技術規格
型號：IS200TRLYS1B
電源要求：
- 輸入電壓：通常為 24V DC 或符合系統電壓的標準要求。
- 輸出電流：根據系統需求，提供一定的電流輸出能力。
輸出類型：
- 數字輸出、繼電器輸出、模擬輸出。
- 輸出信號可通過接口與外部控制設備連接。
尺寸與安裝方式：
- 常規工業標準尺寸，可進行機架式或DIN導軌安裝。
工作環境：
- 溫度范圍：-20°C 至 70°C。
- 濕度范圍：5% 至 95%，無冷凝。
英文資料：
The GE IS200TRLYS1B output terminal board is an output terminal board produced by General Electric for use in industrial automation systems. It is typically an important component in control systems and is widely used in fields such as power generation, petrochemicals, electricity, and automation. The main function of this terminal board is to achieve signal transmission between the control system and the executing device, especially the output part for processing control signals.
Product Features
high reliability
Designed for industrial environments, capable of stable operation under harsh conditions such as high temperature, humidity, and electromagnetic interference.
Multi channel output
Provide multiple output channels, capable of controlling multiple external devices simultaneously, with high output power.
Output signal type support
Supports multiple types of output signals, including relay output, digital output, analog output, etc.
Modular design
Having a flexible modular structure, it is easy to integrate with other control modules and devices.
Status indication function
Equipped with status indicator lights or other indication methods, it facilitates real-time monitoring of the operating status of the terminal board.
technical specifications
model: IS200TRLYS1B
Power requirements:
Input voltage: usually 24V DC or meets the standard requirements for system voltage.
Output current: Provide a certain current output capability according to system requirements.
Output type:
Digital output, relay output, analog output.
The output signal can be connected to external control devices through an interface.
Size and installation method:
Conventional industrial standard size, can be installed in rack or DIN rail.
Work environment:
Temperature range:- 20 ° C to 70 ° C.
Humidity range: 5% to 95%, no condensation.

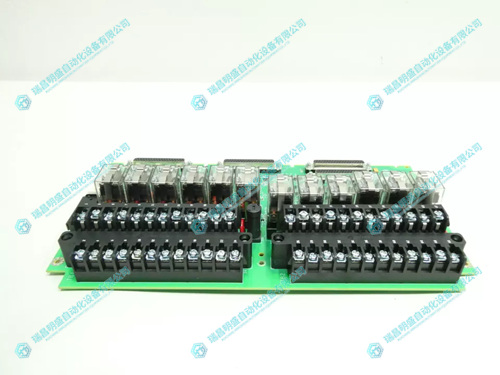

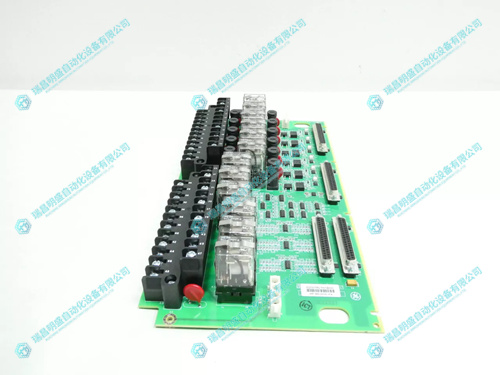

2.產 品 展 示
