Yokogawa Asi133-h00 模擬輸入模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：
Yokogawa ASI133-H00 模擬輸入模塊 是橫河電機用于其 DCS（分布式控制系統）和 PLC（可編程邏輯控制器）系統中的一款高精度模擬輸入模塊，廣泛應用于工業過程自動化和控制領域。
產品概述
功能描述
- 用于接收外部模擬信號（如電壓或電流信號）并將其轉換為數字信號以供控制系統處理。
- 支持高精度信號采集，適用于需要精確數據的工業場景。
應用場景
- 化工、石油和天然氣等行業中的過程變量監測。
- 工廠自動化系統的信號采集和控制。
- 電力和能源管理領域中的數據采集。
技術規格
| 參數 | 規格說明 |
|---|---|
| 型號 | ASI133-H00 |
| 輸入類型 | 模擬輸入（電壓、電流等） |
| 輸入通道 | 多通道（具體通道數根據模塊設計） |
| 輸入范圍 | 4-20mA 或 0-10V（需確認配置） |
| 精度 | 高精度信號采集，通常誤差小于 0.1% |
| 分辨率 | 16 位或更高（視模塊配置而定） |
| 隔離保護 | 通道間及通道對系統間隔離保護 |
| 工作溫度范圍 | 0°C 至 55°C |
| 電源要求 | 24V DC |
| 通信接口 | 與 Yokogawa 系統無縫通信 |
| 安裝方式 | DIN 導軌或機架安裝 |
英文資料：
Yokogawa ASI133-H00 Analog Input Module is a high-precision analog input module used by Yokogawa Electric in its DCS (Distributed Control System) and PLC (Programmable Logic Controller) systems, widely used in industrial process automation and control fields.
Product Overview
Function Description
Used to receive external analog signals (such as voltage or current signals) and convert them into digital signals for processing by the control system.
Supports high-precision signal acquisition, suitable for industrial scenarios that require precise data.
Application scenarios
Process variable monitoring in industries such as chemical, petroleum, and natural gas.
Signal acquisition and control of factory automation systems.
Data collection in the field of power and energy management.
technical specifications
Parameter specification description
Model ASI133-H00
Input type: Analog input (voltage, current, etc.)
Multiple input channels (the specific number of channels depends on the module design)
Input range 4-20mA or 0-10V (configuration needs to be confirmed)
High precision signal acquisition with a typical error of less than 0.1%
Resolution of 16 bits or higher (depending on module configuration)
Isolation protection between channels and between channels for system isolation protection
Working temperature range: 0 ° C to 55 ° C
Power requirement 24V DC
Seamless communication between communication interface and Yokogawa system
Installation method: DIN rail or rack installation

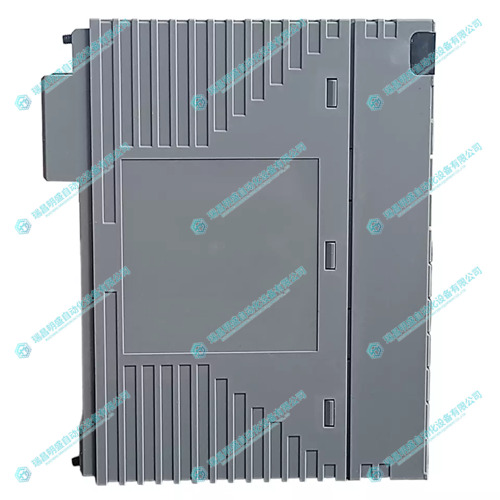

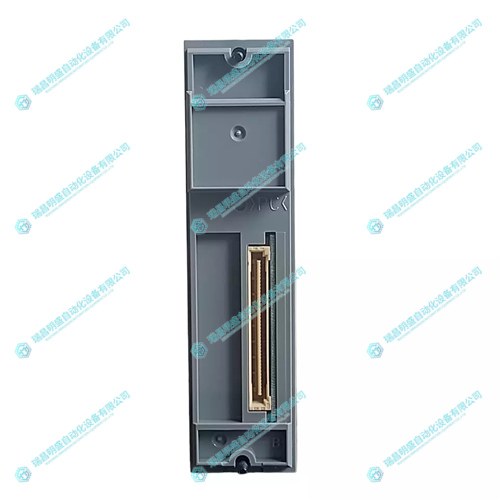

2.產 品 展 示
