ProSoft PLX82-EIP-PNC 通信模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：
ProSoft PLX82-EIP-PNC 通信模塊 是 ProSoft Technology 提供的一款高性能工業通信模塊，專為自動化系統中的設備間通信而設計。此模塊的主要功能是通過 EtherNet/IP 協議連接和集成不同品牌和類型的設備，尤其是在支持 Profinet 的設備與 EtherNet/IP 網絡之間的通信。它可以與多種 PLC、控制器和工控設備進行通信，是工業自動化中常見的接口模塊。
產品概述
功能描述
- 協議轉換：ProSoft PLX82-EIP-PNC 模塊可在 EtherNet/IP 和 Profinet 網絡之間進行通信轉換，允許 Profinet 設備和 EtherNet/IP 網絡中的設備進行數據交換。
- 多種設備支持：支持多個設備類型的連接，包括 PLC、HMI、機器人控制器等，簡化系統集成。
- 網絡互操作性：提高系統的互操作性，實現不同工業協議和設備間的無縫數據傳輸。
應用場景
- 在不同控制系統和設備之間進行數據傳輸，適用于需要不同網絡協議間轉換的場景。
- 工業自動化、生產線管理、數據采集與監控等領域。
- 適用于多協議兼容的工業環境，尤其是在 Profinet 和 EtherNet/IP 之間的集成需求。
技術規格
| 參數 | 規格說明 |
|---|---|
| 型號 | PLX82-EIP-PNC |
| 協議支持 | EtherNet/IP 與 Profinet |
| 接口類型 | RJ45 Ethernet 接口 |
| 數據傳輸速率 | 10/100 Mbps |
| 供電電壓 | 24V DC |
| 工作溫度范圍 | -25°C 至 +70°C |
| 濕度范圍 | 5% 至 95%（無凝結） |
| 尺寸 | 100 mm x 120 mm x 40 mm |
| 安裝方式 | DIN 導軌安裝 |
| 設備連接 | 支持連接多種設備，如 PLC、HMI、傳感器等 |
| 協議轉換功能 | 支持從 Profinet 到 EtherNet/IP 或反向轉換 |
| 支持的應用協議 | I/O 消息、控制器通訊、數據采集 |
英文資料：
The ProSoft PLX82-EIP-PNC communication module is a high-performance industrial communication module provided by ProSoft Technology, designed specifically for inter device communication in automation systems. The main function of this module is to connect and integrate devices of different brands and types through the EtherNet/IP protocol, especially for communication between devices that support Profinet and EtherNet/IP networks. It can communicate with various PLCs, controllers, and industrial control devices, and is a common interface module in industrial automation.
Product Overview
Function Description
Protocol Conversion: The ProSoft PLX82-EIP-RNC module can perform communication conversion between EtherNet/IP and Profinet networks, allowing Profinet devices and devices in EtherNet/IP networks to exchange data.
Multiple device support: Supports connections for multiple device types, including PLC HMI、 Robot controllers, etc., simplify system integration.
Network interoperability: Improve system interoperability and achieve seamless data transmission between different industrial protocols and devices.
Application scenarios
Data transmission between different control systems and devices is suitable for scenarios that require conversion between different network protocols.
In the fields of industrial automation, production line management, data acquisition and monitoring.
Suitable for multi protocol compatible industrial environments, especially for integration requirements between Profinet and EtherNet/IP.
technical specifications
Parameter specification description
Model PLX82-EIP-NPC
The protocol supports EtherNet/IP and Profinet
Interface type RJ45 Ethernet interface
Data transmission rate 10/100 Mbps
Supply voltage 24V DC
Working temperature range -25 ° C to+70 ° C
Humidity range 5% to 95% (no condensation)
Size 100mm x 120mm x 40mm
Installation method: DIN rail installation
The device connection supports connecting multiple devices, such as PLC HMI、 Sensors, etc
The protocol conversion function supports converting from Profinet to EtherNet/IP or vice versa
Supported application protocols for I/O messages, controller communication, and data collection

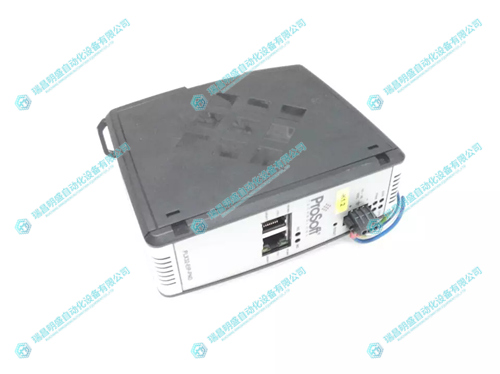

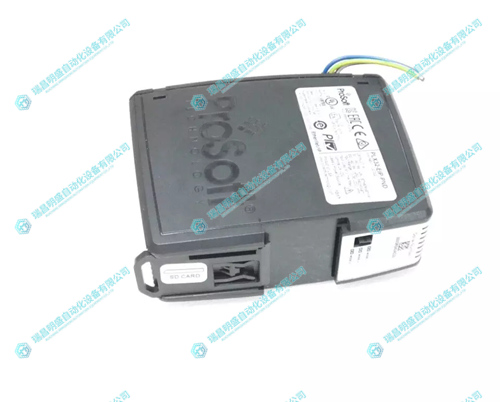

2.產 品 展 示
