GE ENERGY HYDRAN H201Ci-1 單通道控制器 PDF資料
1.產 品 資 料 介 紹：
中文資料：
GE HYDRAN H201Ci-1 單通道控制器是一款用于監測變壓器油中溶解氣體的高精度設備。該控制器專門設計用于監測氣體濃度，幫助早期診斷變壓器的故障，從而確保設備的可靠運行。
主要特點：
- 實時氣體檢測：H201Ci-1 能夠?qū)崟r(shí)檢測變壓器油中的溶解氣體，包括氫氣（H?）、一氧化碳（CO）、乙烯（C?H?）、乙炔（C?H?）等，這些氣體的濃度變化可以作為設備故障的早期信號。
- 報警功能：該控制器具備多種報警功能，可以設定不同的報警閾值。一旦檢測到氣體濃度超過設定值，系統會立即發出報警，提示操作人員進行檢查和處理。
- 高精度測量：采用先進的傳感器技術，提供高精度的氣體測量和數據反饋，確保變壓器健康狀態的實時監控。
- 模擬輸出和數字接口：提供多種輸出方式，包括模擬輸出（如4-20mA）和數字通信接口（如RS-232、RS-485），可以與其他監控系統進行集成，方便遠程監控和數據采集。
- 耐用性和穩定性：設備設計堅固，能夠適應惡劣的工業環境，確保長時間穩定工作。
應用領域：
- 變壓器監測：主要應用于電力行業，尤其是變電站和發電廠的變壓器在線監測系統。通過監測溶解氣體的濃度變化，可以預警變壓器內部可能的故障，避免突發故障帶來的停運風險。
- 電力設備故障預警：廣泛應用于高壓電氣設備的監控中，尤其是在對設備運行安全有較高要求的場所，如發電廠和配電網。
- 能源管理：對于能源生產和配電環節的管理人員，H201Ci-1 提供實時數據支持，幫助做出及時的決策，確保能源設施的正常運營和維護。
GE HYDRAN H201Ci-1 單通道控制器以其高精度的氣體監測功能和多樣化的通信接口，成為變壓器及其他電力設備健康管理的重要工具。
英文資料：
The GE HYDRAN H201Ci-1 single channel controller is a high-precision device used for monitoring dissolved gases in transformer oil. This controller is specifically designed to monitor gas concentration, help diagnose transformer faults early, and ensure reliable operation of the equipment.
Main features:
Real time gas detection: H201Ci-1 can detect dissolved gases in transformer oil in real time, including hydrogen (H ?), carbon monoxide (CO), ethylene (C ? H ?), acetylene (C ? H ?), etc. The concentration changes of these gases can serve as early signals of equipment failure.
Alarm function: This controller has multiple alarm functions and can set different alarm thresholds. Once the gas concentration exceeds the set value, the system will immediately issue an alarm to prompt the operator to check and handle it.
High precision measurement: using advanced sensor technology to provide high-precision gas measurement and data feedback, ensuring real-time monitoring of transformer health status.
Analog output and digital interface: Provides multiple output modes, including analog output (such as 4-20mA) and digital communication interfaces (such as RS-232, RS-485), which can be integrated with other monitoring systems for convenient remote monitoring and data acquisition.
Durability and stability: The equipment is designed to be sturdy and able to adapt to harsh industrial environments, ensuring long-term stable operation.
Application areas:
Transformer monitoring: mainly used in the power industry, especially in transformer online monitoring systems for substations and power plants. By monitoring the concentration changes of dissolved gases, possible faults inside the transformer can be alerted, avoiding the risk of shutdown caused by sudden faults.
Power equipment fault warning: widely used in the monitoring of high-voltage electrical equipment, especially in places with high requirements for equipment operation safety, such as power plants and distribution networks.
Energy Management: H201Ci-1 provides real-time data support for management personnel in energy production and distribution, helping to make timely decisions and ensure the normal operation and maintenance of energy facilities.
The GE HYDRAN H201Ci-1 single channel controller, with its high-precision gas monitoring function and diverse communication interfaces, has become an important tool for health management of transformers and other power equipment.

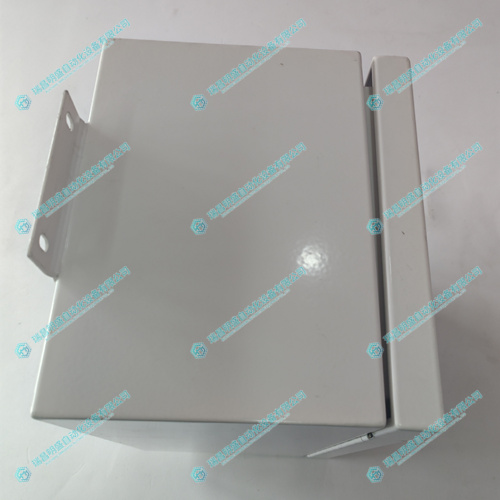

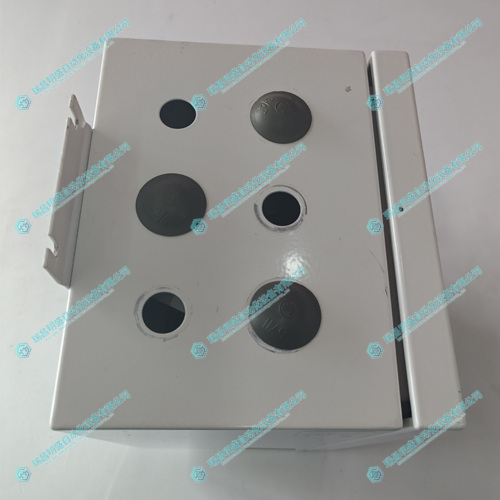

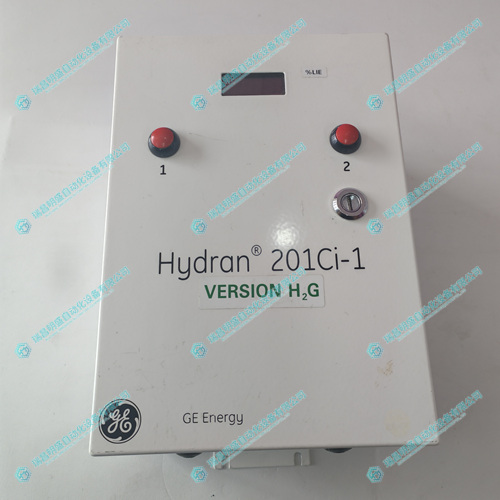

2.產 品 展 示
