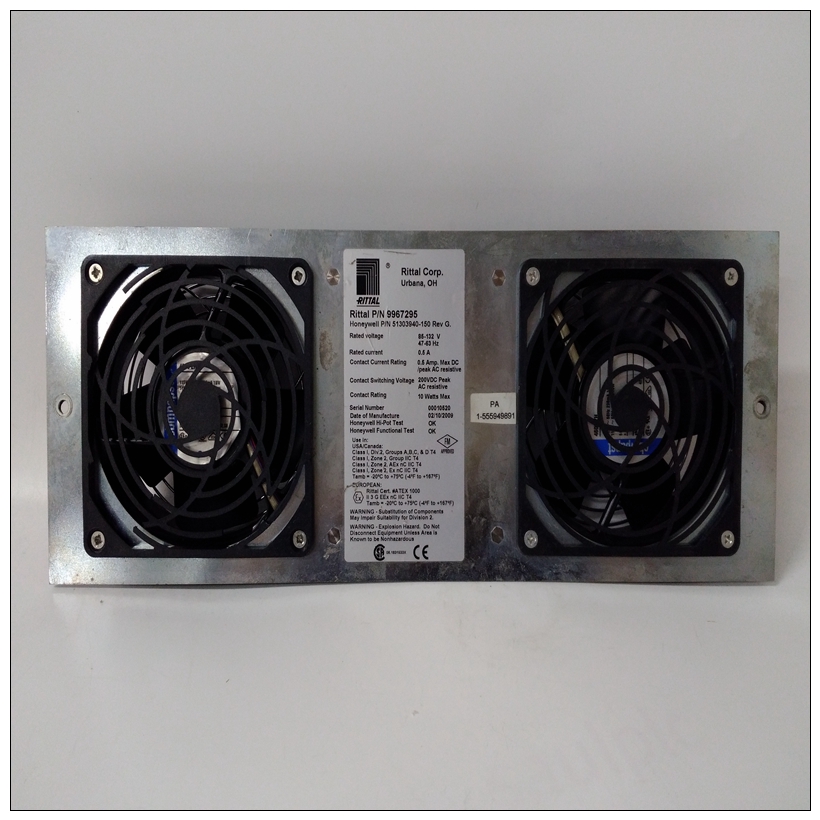

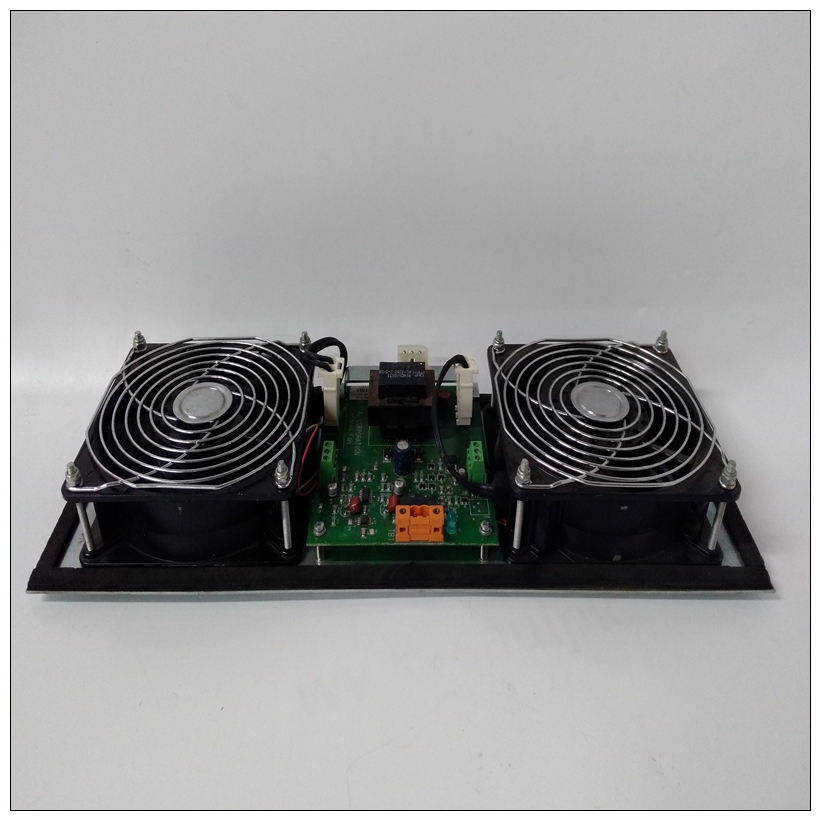

HONEYWELL 51303940-150風扇,培訓教程
閃存板上有高達1MB的閃存。閃存的工作原理類似EPROM，但可以通過軟件擦除和重新編程。其組織形式為32位寬，但對于處理器來說，它看起來是64位寬。映射于讀取可以是任何大小，包括突發傳輸，但是無論為傳輸指定的大小如何，寫入總是32位寬。因此，軟件應僅使用32位寫傳輸。這段記憶由總線開關和內存大小、訪問時間和寫入控制可通過ROM控制寄存器（ROMCR）編程啟用功能在總線開關中。
HONEYWELL 51303940-150風扇可以從處理器總線訪問閃存只有無法從本地外圍總線或VMEbus訪問。車載DRAMMVME197LE板載DRAM（2組32MB內存，一個可選）已安裝）使用1M x 4設備，大小為32MB，配置為256位寬的DRAM是四路交錯的，以有效支持緩存突發周期。DRAM由DCAM和ECDM以及map控制DCAM中的解碼器可以通過中的I2Cbus接口進行編程ECDM可適應不同的基址和大小。本地外圍總線重置不會禁用板載DRAM。參考DCAM和MVME197LE、MVME197DP和MVME197SP Single中的ECDM章節板機程序員詳細編程參考指南信息電池備份RAM和時鐘MVME197LE上使用了MK48T08 RAM和時鐘芯片。這個芯片提供時鐘、振蕩器、晶體、電源故障檢測、內存寫保護、8KB RAM和一個28針封裝中的電池。時鐘
以BCD 24小時格式提供秒、分鐘、小時、天、日期、月份和年份總體安排28、29、（閏年）和30天月份的修正為自動生成。時鐘不會產生中斷。MK48T08是一個8位設備；但是，PCCCIP2提供的接口支持對MK48T08的8位、16位和32位訪問。請參閱中的PCCCIP2章MVME197LE、MVME197DP和MVME197SP單板計算機有關詳細信息，請參閱程序員參考指南和MK48T08數據表編程信息
Flash Memory
Up to 1MB of flash memory is available on the board. Flash memory works like
EPROM, but can be erased and reprogrammed by software. It is organized as
32 bits wide, but to the processor it looks as 64 bits wide. It is mapped at
location $FF800000. Reads can be of any size, including burst transfers, but
writes are always 32 bits wide, regardless of the size specified for the transfer.
For this reason, software should only use 32-bit write transfers. This memory
is controlled by the BusSwitch, and the memory size, access time, and write
enable capability can be programmed via the ROM Control Register (ROMCR)
in the BusSwitch. The flash memory can be accessed from the processor bus
only. It is not accessible from the local peripheral bus or VMEbus.
Onboard DRAM
The MVME197LE onboard DRAM (2 banks of 32MB memory, one optionally
installed) is sized at 32MB using 1M x 4 devices and configured as 256 bits
wide. The DRAM is four-way interleaved to efficiently support cache burst
cycles. The DRAM is controlled by the DCAM and ECDM, and the map
decoders in the DCAM can be programmed through the I2Cbus interface in
the ECDM to accommodate different base address(es) and sizes. The onboard DRAM is not disabled by a local peripheral bus reset. Refer to the DCAM and
ECDM chapters in the MVME197LE, MVME197DP, and MVME197SP Single
Board Computers Programmer’s Reference Guide for detailed programming
information.Battery Backup RAM and Clock
The MK48T08 RAM and clock chip is used on the MVME197LE. This chip
provides a time of day clock, oscillator, crystal, power fail detection, memory
write protection, 8KB of RAM, and a battery in one 28-pin package. The clock
provides seconds, minutes, hours, day, date, month, and year in BCD 24-hour
format. Corrections for 28-, 29-, (leap year) and 30-day months are
automatically made. No interrupts are generated by the clock. The MK48T08
is an 8-bit device; however the interface provided by the PCCchip2 supports
8-, 16-, and 32-bit accesses to the MK48T08. Refer to the PCCchip2 chapter in
the MVME197LE, MVME197DP, and MVME197SP Single Board Computers
Programmer’s Reference Guide and to the MK48T08 data sheet for detailed
programming information
