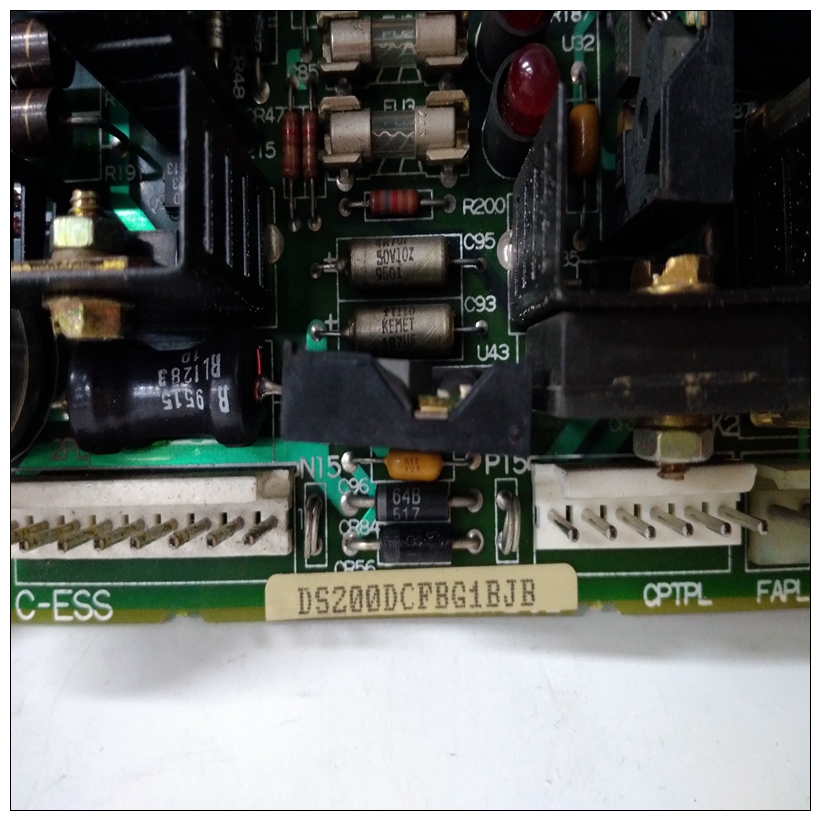

DS200DCFBG1BJB燃機卡件,GE中文說明
如果BBRAM中的數據丟失，用戶應使用VMEbus P2連接器標簽來恢復它。參考MVME197BUG 197Bug調試包用戶手冊。以太網收發器接口位于MVME197LE總線上工業標準連接器位于MVME712X上過渡模塊。82596CA的支持功能由PCCCIP2提供。請參閱82596CA LAN協處理器用戶手冊和MVME197LE、MVME197DP和MVME197SP單板計算機詳細編程信息的程序員參考指南。
DS200DCFBG1BJB燃機卡件SCSI接口MVME197LE通過工業標準SCSI總線提供大容量存儲子系統。這些子系統可能包括硬盤和軟盤驅動器、流式磁帶驅動器和其他大容量存儲設備。SCSI接口使用NCR 53C710 SCSI輸入/輸出控制器實現。53C710的支持功能由PCCchip2提供。請參閱NCR 53C710 SCSI輸入/輸出處理器數據手冊和MVME197LE、MVME197DP和MVME197SP單板計算機詳細編程信息的程序員參考指南。SCSI終止系統配置者必須確保SCSI總線正確終止。
在MVME197LE上，終端位于P2過渡板上。SCSI總線終端電阻器的+5V電源由P2提供過渡板。
MVME197LE包含許多用于本地處理器的資源。這些包括滴答計時器、軟件可編程硬件中斷、看門狗計時器和本地外圍總線超時?？删幊痰未鸲〞r(shí)器提供了六個分辨率為1μsec的32位可編程滴答計時器，兩個在總線開關中，兩個在VMEchip2中，兩個在PCCHIP2中。滴答聲定時器可以編程為對處理器產生周期性中斷。請參閱MVME197LE中的VMEchip2、PCCCIP2和總線開關章節，MVME197DP和MVME197SP單板機程序員參考
詳細編程信息指南
If the data in the BBRAM is lost, the user should use the number on the
VMEbus P2 connector label to restore it. Refer to the MVME197BUG 197Bug
Debugging Package User’s Manual.
The Ethernet transceiver interface is located on the MVME197LE main
module, and the industry standard connector is located on the MVME712X
transition module.
Support functions for the 82596CA are provided by the PCCchip2. Refer to the
82596CA LAN Coprocessor User’s Manual and to the PCCchip2 chapter in the
MVME197LE, MVME197DP, and MVME197SP Single Board Computers
Programmer’s Reference Guide for detailed programming information.
SCSI Interface
The MVME197LE provides for mass storage subsystems through the industrystandard SCSI bus. These subsystems may include hard and floppy disk
drives, streaming tape drives, and other mass storage devices. The SCSI
interface is implemented using the NCR 53C710 SCSI I/O controller.
Support functions for the 53C710 are provided by the PCCchip2. Refer to the
NCR 53C710 SCSI I/O Processor Data Manual and to the PCCchip2 chapter in the
MVME197LE, MVME197DP, and MVME197SP Single Board Computers
Programmer’s Reference Guide for detailed programming information.
SCSI Termination
The system configurer must ensure that the SCSI bus is terminated properly.
On the MVME197LE, the terminators are located on the P2 transition board.
The +5V power to the SCSI bus termination resistors is provided by the P2
transition board.Peripheral Resources
The MVME197LE includes many resources for the local processor. These
include tick timers, software programmable hardware interrupts, watchdog
timer, and local peripheral bus timeout.
Programmable Tick Timers
Six 32-bit programmable tick timers with 1 μsec resolution are provided, two
in the BusSwitch, two in the VMEchip2, and two in the PCCchip2. The tick
timers can be programmed to generate periodic interrupts to the processor.
Refer to the VMEchip2, PCCchip2, and BusSwitch chapters in the MVME197LE,
MVME197DP, and MVME197SP Single Board Computers Programmer’s Reference
Guide for detailed programming information
