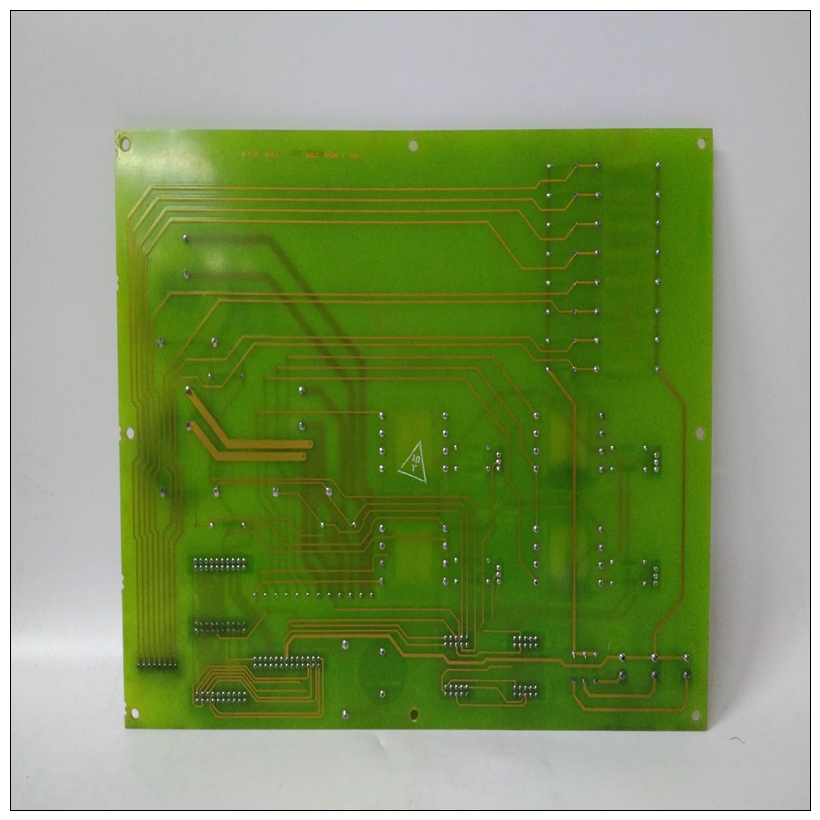

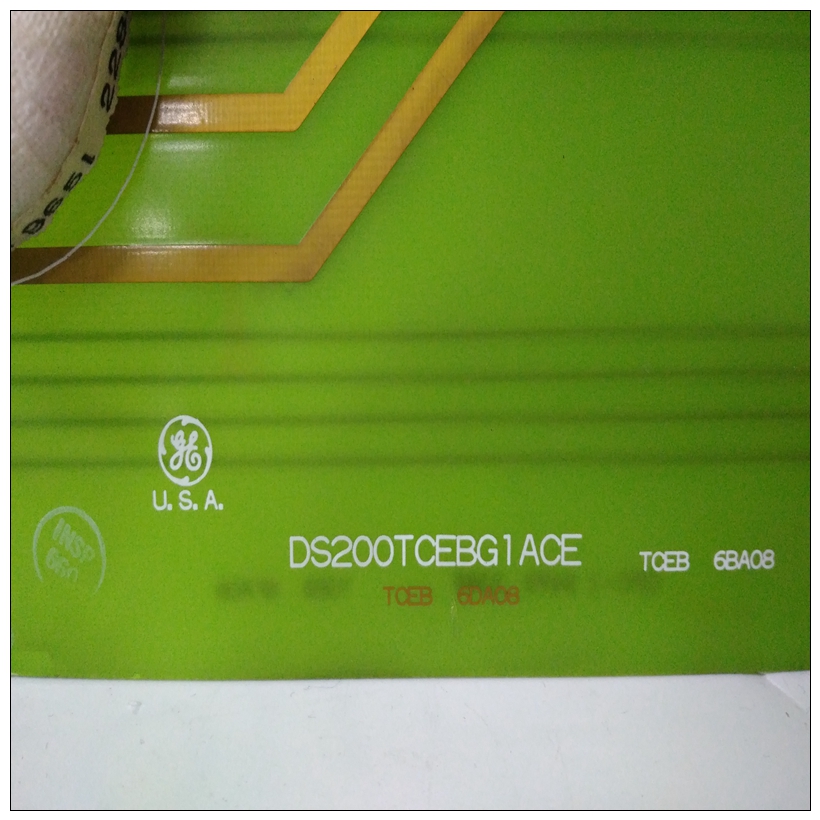

DS200TCEBG1ACE燃機電氣,GE數據庫
系統注意事項MVME197LE需要從VMEbus背板。連接器P2還用于32位傳輸，對于擴展尋址的上8個地址行模式如果沒有主板，MVME197LE可能無法正常工作連接至VMEbus背板的連接器P1和P2。MVME197LE是作為VMEbus主設備還是作為VMEbus從設備運行，它配置為32位地址和32位數據（A32/D32）。然而，它在某些地址范圍內處理A16或A24設備。
DS200TCEBG1ACE燃機電氣D8和/或系統中的D16設備必須由軟件處理。參考存儲器MVME197LE、MVME197DP和MVME197SP單板中的映射計算機程序員參考指南。MVME197LE包含共享板載DRAM，其基址為軟件可選。車載處理器和非車載VMEbus設備在基本物理地址$00000000處看到這個本地DRAM，如下所示：由MVME197Bug固件編程。這可以通過以下方式更改：軟件，到任何其他基址。參考MVME197LE、MVME197DP、，和MVME197SP單板計算機程序員參考指南細節。
如果MVME197LE試圖以不存在的方式訪問非車載資源位置，并且不是系統控制器，如果系統沒有全局總線超時，MVME197LE永遠等待VMEbus循環完成這將導致系統掛起。只有一種情況其中系統可能缺少此全局總線超時：當MVME197LE不是系統控制器，沒有全局總線超時系統中的其他位置。多個MVME197LE模塊可以配置到單個VME卡中籠子通常，支持硬件多處理器功能。VMEbus上的其他MPU可以中斷、禁用、與和通信確定RISC處理器的運行狀態。一個
GCSR集包括四個位，用作位置監視器，允許一個MVME197LE處理器向其他MVME197LE廣播信號處理器（如有）。所有八個寄存器都可以從任何本地處理器訪問以及從VMEbus。
MVME197LE為以太網LAN收發器提供+12 Vdc電源通過MVME197LE模塊上的1安培保險絲（F2）進行接口。如果以太網收發器無法工作，請檢查保險絲。當使用MVME712M過渡模塊，MVME712M上的黃色LED（DS1當LAN電源可用時，前面板亮起，表明保險絲已斷開
System Considerations
The MVME197LE needs to draw power from both connectors P1 and P2 of the
VMEbus backplane. Connector P2 is also used for the upper 16 bits of data for
32-bit transfers, and for the upper 8 address lines for the extended addressing
mode. The MVME197LE may not operate properly without its main board
connected to connectors P1 and P2 of the VMEbus backplane.
Whether the MVME197LE operates as a VMEbus master or as a VMEbus slave,
it is configured for 32 bits of address and for 32 bits of data (A32/D32).
However, it handles A16 or A24 devices in certain address ranges. D8 and/or
D16 devices in the system must be handled by software. Refer to the memory
maps in the MVME197LE, MVME197DP, and MVME197SP Single Board
Computers Programmer’s Reference Guide.
The MVME197LE contains shared onboard DRAM whose base address is
software-selectable. Both the onboard processor and off-board VMEbus
devices see this local DRAM at base physical address $00000000, as
programmed by the MVME197Bug firmware. This may be changed, by
software, to any other base address. Refer to the MVME197LE, MVME197DP,
and MVME197SP Single Board Computers Programmer’s Reference Guide for
details.
If the MVME197LE tries to access off-board resources in a non-existent
location, and is not the system controller, and if the system does not have a
global bus timeout, the MVME197LE waits forever for the VMEbus cycle to
complete. This would cause the system to hang up. There is only one situation
in which the system might lack this global bus timeout: when the
MVME197LE is not the system controller and there is no global bus timeout
elsewhere in the system.Multiple MVME197LE modules may be configured into a single VME card
cage. In general, hardware multiprocessor features are supported.
Other MPUs on the VMEbus can interrupt, disable, communicate with and
determine the operational status of the RISC processor(s). One register of the
GCSR set includes four bits which function as location monitors to allow one
MVME197LE processor to broadcast a signal to other MVME197LE
processors, if any. All eight registers are accessible from any local processor as
well as from the VMEbus.
The MVME197LE provides +12 Vdc power to the Ethernet LAN transceiver
interface through a 1 amp fuse (F2) located on the MVME197LE module. If the
Ethernet transceiver fails to operate, check the fuse. When using the
MVME712M transition module, the yellow LED (DS1) on the MVME712M
front panel lights when LAN power is available, indicating that the fuse is
good
