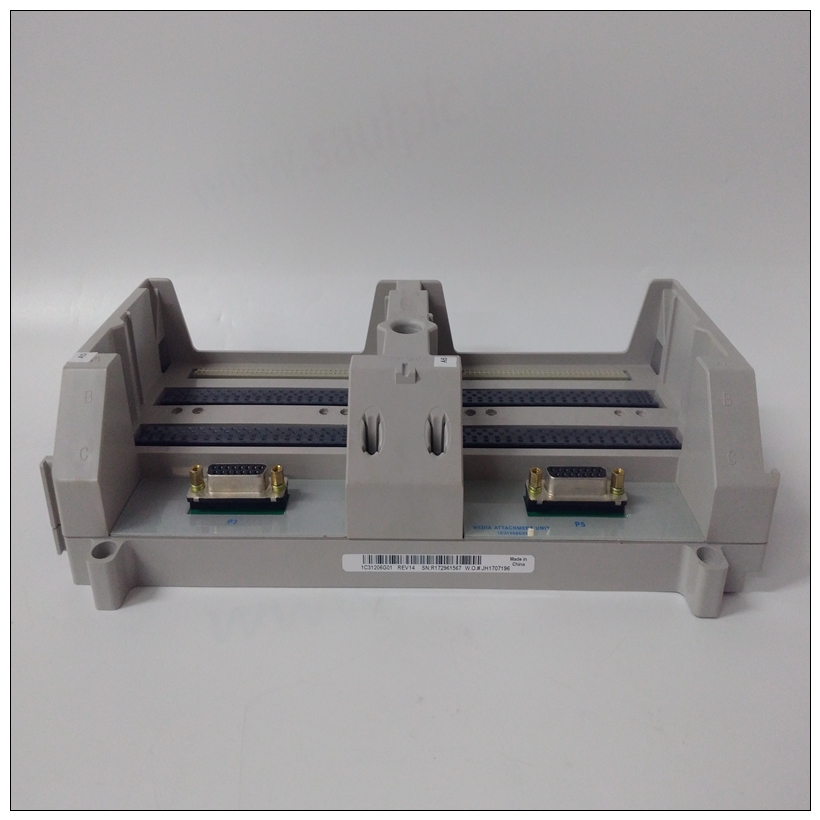

1C31206G01工控卡件,EMERSON使用參數
硬件安裝以下各節討論了夾層卡在MVME2603/2604基板，安裝完成MVME2603/2604 VME模塊組裝和轉換模塊為VME機箱，以及與安裝相關的系統注意事項。在安裝MVME2603/2604之前，請確保串行端口和所有根據需要配置收割臺跳線。
在大多數情況下，夾層卡是RAM200 ECC DRAM模塊，可選PCI夾層（如適用）和可選載體板對于額外的PCI擴展（如果適用）-已在MVME2603/2604。用戶可配置跳線可通過安裝夾層。
1C31206G01工控卡件如果有必要在基板上安裝夾層，請參閱以下各節簡要介紹了安裝過程。使用ESD腕帶
摩托羅拉強烈建議您使用防靜電腕帶和安裝或升級系統時使用導電泡沫墊。電子的組件，如磁盤驅動器、計算機板和內存模塊，對靜電放電（ESD）極為敏感。之后從其保護包裝或系統中移除組件，將部件平放在接地的無靜電表面上（在這種情況下對于電路板，元件面朝上）。不要將部件滑過任何表面
如果ESD站不可用，您可以避免因以下原因造成的損壞：佩戴防靜電腕帶進行靜電放電（電子商店有售）連接到有源接地的。請注意，系統機箱如果拔掉插頭，則可能不接地。
RAM200內存夾層安裝RAM200 DRAM夾層安裝在MVME2603/2604的頂部基板。要升級或安裝RAM200夾層，請參閱圖1-18并按以下步驟進行：1。將靜電帶系在手腕上。連接ESD的另一端將皮帶系在底盤上作為接地。靜電放電帶必須固定在在整個過程中，您的手腕和地面。
2、執行操作系統關機。接通交流或直流電源斷開并從系統中卸下交流電源線或直流電源線。根據需要卸下機箱或系統蓋，以便訪問VME模塊。
Hardware Installation
The following sections discuss the placement of mezzanine cards on the
MVME2603/2604 base board, the installation of the complete
MVME2603/2604 VME module assembly and transition module into a
VME chassis, and the system considerations relevant to the installation.
Before installing the MVME2603/2604, ensure that the serial ports and all
header jumpers are configured as desired.
In most cases, the mezzanine cards—the RAM200 ECC DRAM module,
the optional PCI mezzanine (if applicable), and the optional carrier board
for additional PCI expansion (if applicable)—are already in place on the
MVME2603/2604. The user-configurable jumpers are accessible with the
mezzanines installed.
Should it be necessary to install mezzanines on the base board, refer to the
following sections for a brief description of the installation procedure.
Use ESD
Wrist Strap
Motorola strongly recommends that you use an antistatic wrist strap and a
conductive foam pad when installing or upgrading a system. Electronic
components, such as disk drives, computer boards, and memory modules,
can be extremely sensitive to electrostatic discharge (ESD). After
removing the component from its protective wrapper or from the system,
place the component flat on a grounded, static-free surface (and, in the case
of a board, component side up). Do not slide the component over any
surface.
If an ESD station is not available, you can avoid damage resulting from
ESD by wearing an antistatic wrist strap (available at electronics stores)
that is attached to an active electrical ground. Note that a system chassis
may not be grounded if it is unplugged.
RAM200 Memory Mezzanine Installation
The RAM200 DRAM mezzanine mounts on top of the MVME2603/2604
base board. To upgrade or install a RAM200 mezzanine, refer to
Figure 1-18 and proceed as follows:1. Attach an ESD strap to your wrist. Attach the other end of the ESD
strap to the chassis as a ground. The ESD strap must be secured to
your wrist and to ground throughout the procedure.
2. Perform an operating system shutdown. Turn the AC or DC power
off and remove the AC cord or DC power lines from the system.
Remove chassis or system cover(s) as necessary for access to the
VME modules.
