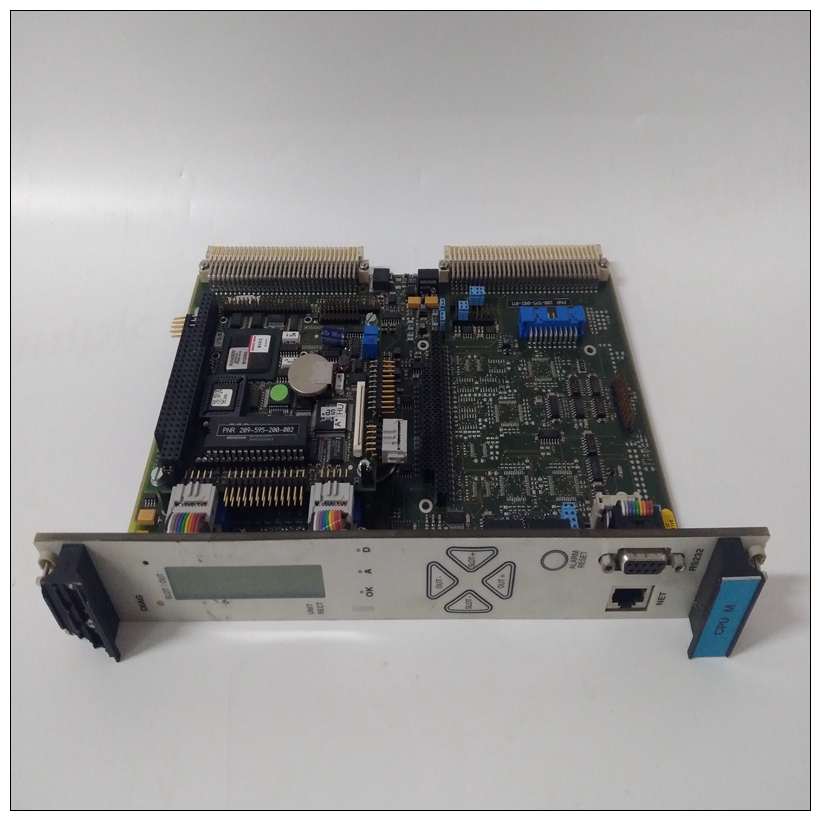

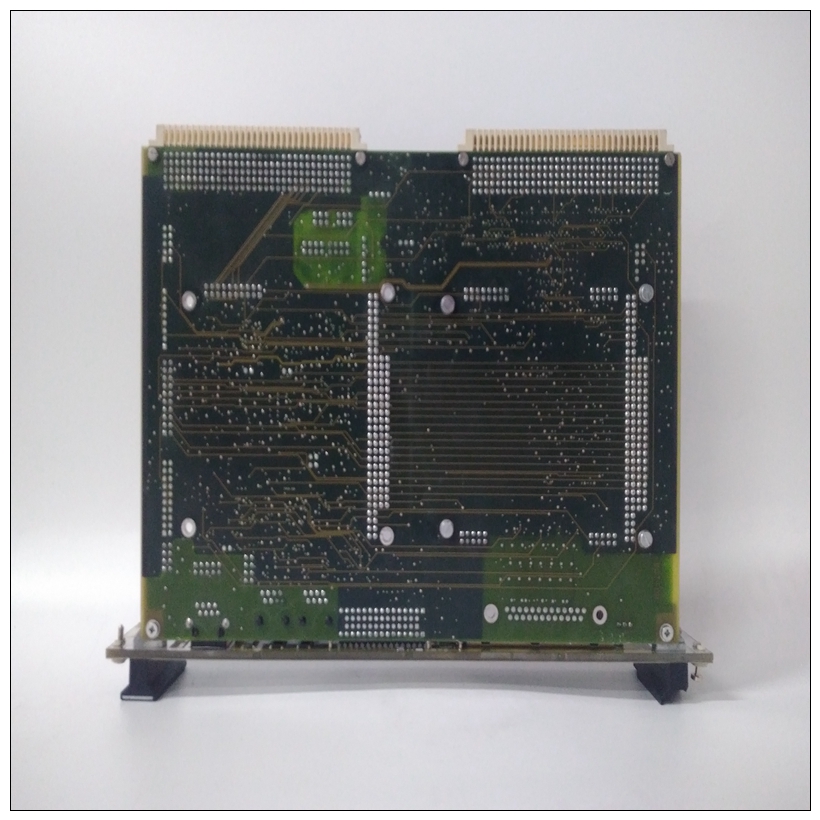

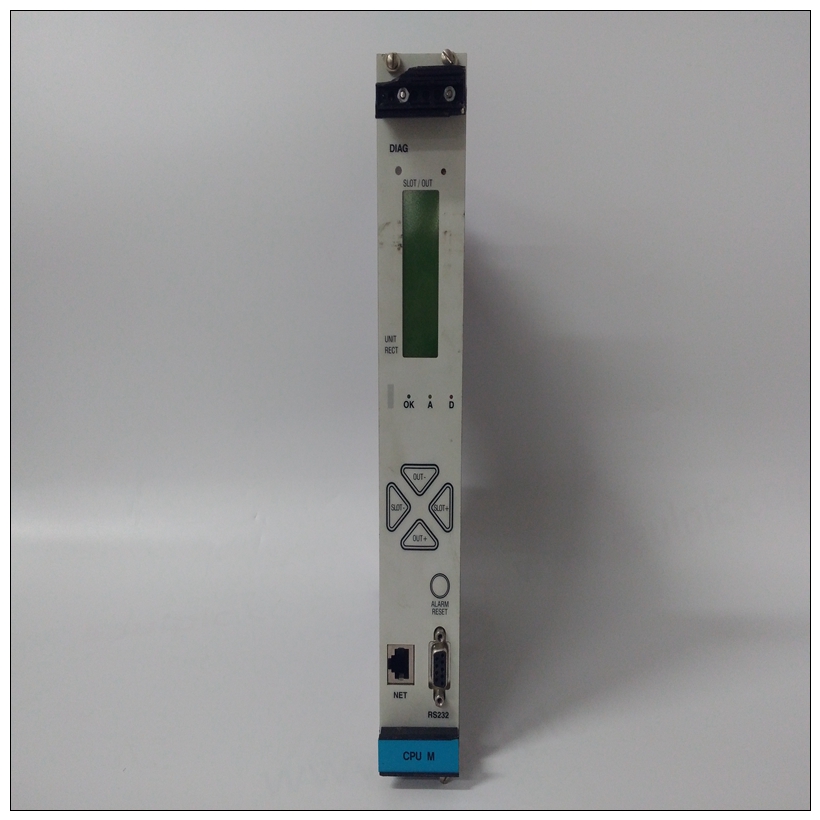

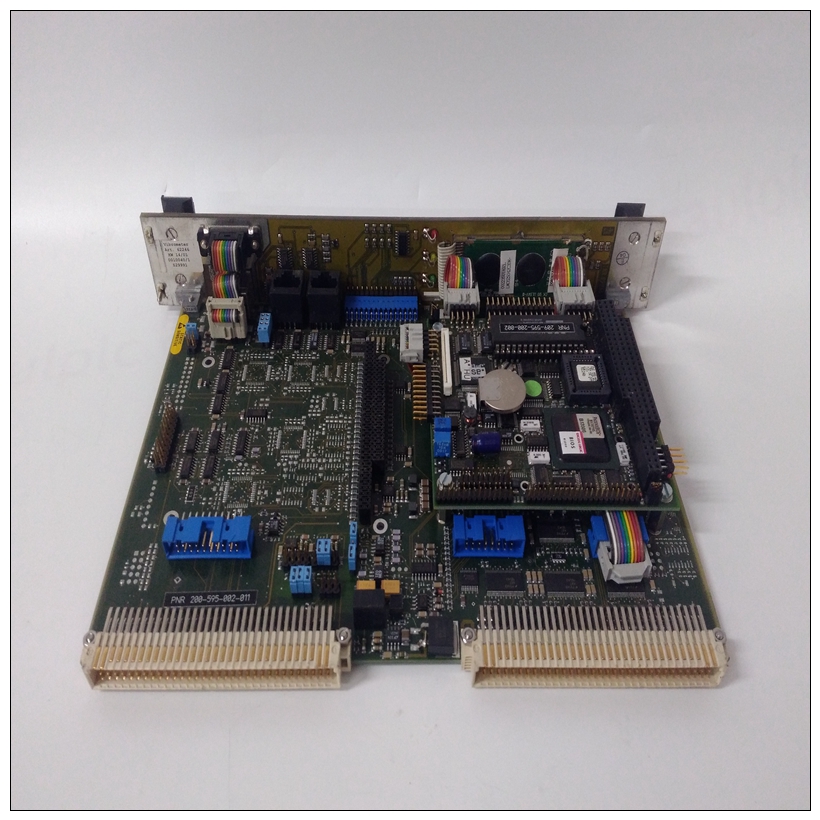

VIBRO 200-595-002-011工控模塊,使用范圍
VMEbus上的其他MPU可以中斷、禁用、與、并確定處理器的操作狀態。一個GCSR（全局控制/狀態寄存器）集包括四個位，其功能如下位置監視器允許一個MVME2603/2604處理器廣播
向任何其他MVME2603/2604處理器發送信號。所有八個寄存器都是可從任何本地處理器以及VMEbus訪問。MVME2603/2604 VME模塊消耗+5V DC、+12V DC和–來自VMEbus背板的12V直流電源，通過連接器P1和P2.3 V DC和處理器核心電壓電源由車載+5V直流電。
VIBRO 200-595-002-011工控模塊MVME2603/2604 VME模塊MVME2603/2604 VME模塊提供+12V DC和（inMVME761輸入/輸出模式）–通過多開關（可復位保險絲）分別為R34和R28。這些電壓電源為串行端口驅動程序和任何連接的LAN收發器供電至過渡模塊。向基座提供帶保險絲的+5V直流電源板的鍵盤和鼠標連接器通過多功能開關R30連接到14針組合LED夾層/遠程復位連接器J1。FUSMVME2603/2604前面板上的LED（DS5）在所有有三種電壓可用。在MVME712M輸入/輸出模式下，MVME2603/2604提供SCSI終端通過P2適配器板上的1A保險絲（F1）供電。如果保險絲熔斷，SCSI設備可能會工作不穩定或無法正常工作全部的P2適配器板連接至轉換模塊，并帶有SCSI總線連接到轉換模塊，在SCSI終端電源可用時，模塊亮起。如果SCSISCSI總線操作期間，轉換模塊上的LED閃爍，請檢查P2適配器板上的保險絲F1。注意，因為SCSI總線上的任何設備都可以提供TERMPWR信號，因為MVME2603/2604 FUS LED監控多個電壓的狀態，LED不會直接指示任何單個保險絲的狀況。如果FUS LED閃爍或熄滅，檢查所有保險絲（多功能開關）。在MVME761輸入/輸出模式下，MVME2603/2604提供SCSI終端通過P2適配器上的多開關（可復位保險絲）供電板MVME2603/2604基板向14針組合LED夾層/遠程復位接頭，J1。當J1為當移除LED夾層時，用作遠程重置連接器揚聲器輸出信號可以通過電纜連接到外部揚聲器。對于pinJ1的分配，請參閱第4-3頁的表4-1
Other MPUs on the VMEbus can interrupt, disable, communicate with,
and determine the operational status of the processor(s). One register of the
GCSR (global control/status register) set includes four bits that function as
location monitors to allow one MVME2603/2604 processor to broadcast a
signal to any other MVME2603/2604 processors. All eight registers are
accessible from any local processor as well as from the VMEbus.
The MVME2603/2604 VME module draws +5V DC, +12V DC, and
–12V DC power from the VMEbus backplane through connectors P1 and
P2. The 3.3V DC and the processor core voltage power is supplied by the
on-board +5V DC.
MVME2603/2604 VME Module
The MVME2603/2604 VME module furnishes +12V DC and (in
MVME761 I/O mode) –12V DC power to the transition module through
polyswitches (resettable fuses) R34 and R28 respectively. These voltage
sources power the serial port drivers and any LAN transceivers connected
to the transition module. Fused +5V DC power is supplied to the base
board’s keyboard and mouse connectors through polyswitch R30 and to the 14-pin combined LED-mezzanine/remote-reset connector, J1. The FUS
LED (DS5) on the MVME2603/2604 front panel illuminates when all
three voltages are available.
In MVME712M I/O mode, the MVME2603/2604 supplies SCSI
terminator power through a 1A fuse (F1) located on the P2 adapter board.
If the fuse is blown, the SCSI device(s) may function erratically or not at
all. With the P2 adapter board cabled to a transition module and with an
SCSI bus connected to the transition module, the green SCSI LED on the
module illuminates when SCSI terminator power is available. If the SCSI
LED on the transition module flickers during SCSI bus operation, check
fuse F1 on the P2 adapter board.
Note Because any device on the SCSI bus can provide the TERMPWR
signal, and because the MVME2603/2604 FUS LED monitors the
status of several voltages, the LED does not directly indicate the
condition of any single fuse. If the FUS LED flickers or goes out,
check all the fuses (polyswitches).In MVME761 I/O mode, the MVME2603/2604 supplies SCSI terminator
power through a polyswitch (resettable fuse) located on the P2 adapter
board.
The MVME2603/2604 base board supplies a SPEAKER_OUT signal to the
14-pin combined LED-mezzanine/remote-reset connector, J1. When J1 is
used as a remote reset connector with the LED mezzanine removed, the
SPEAKER_OUT signal can be cabled to an external speaker. For the pin
assignments of J1, refer to Table 4-1 on page 4-3.
