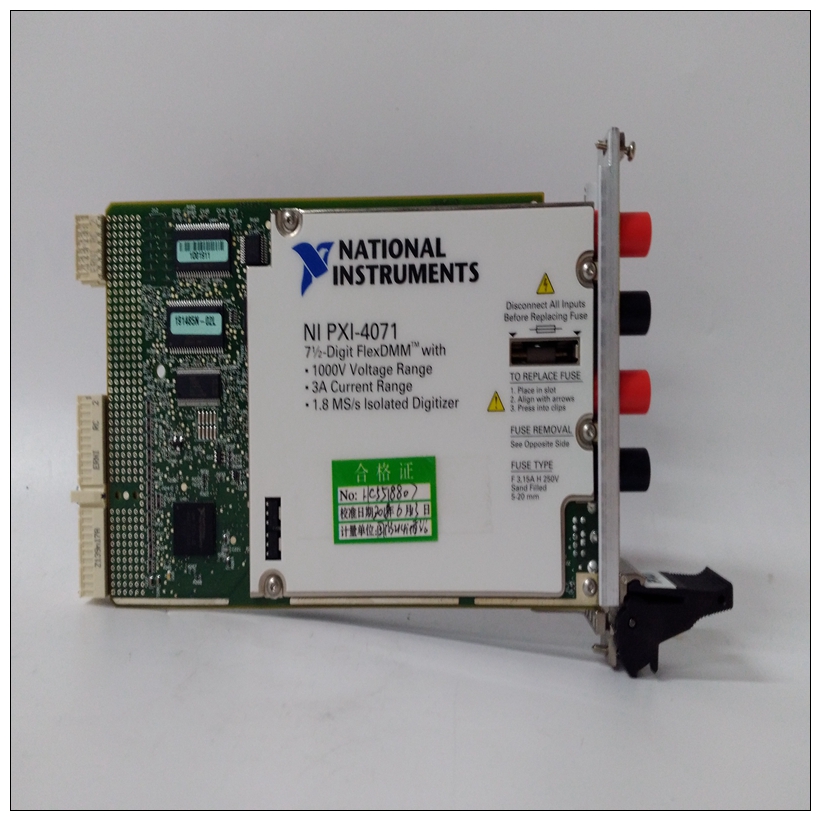

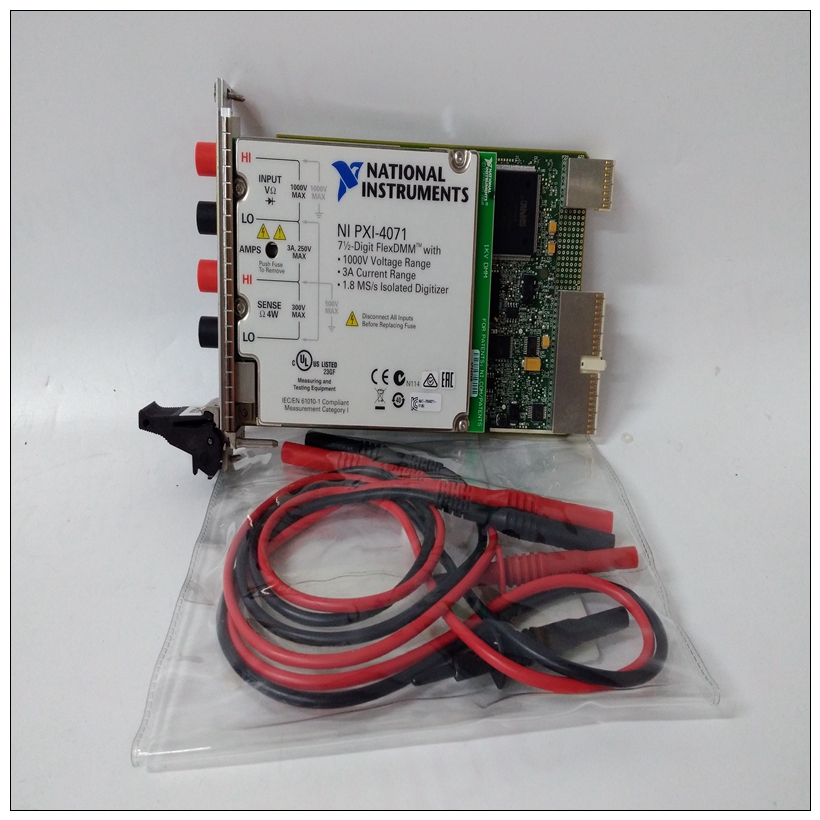

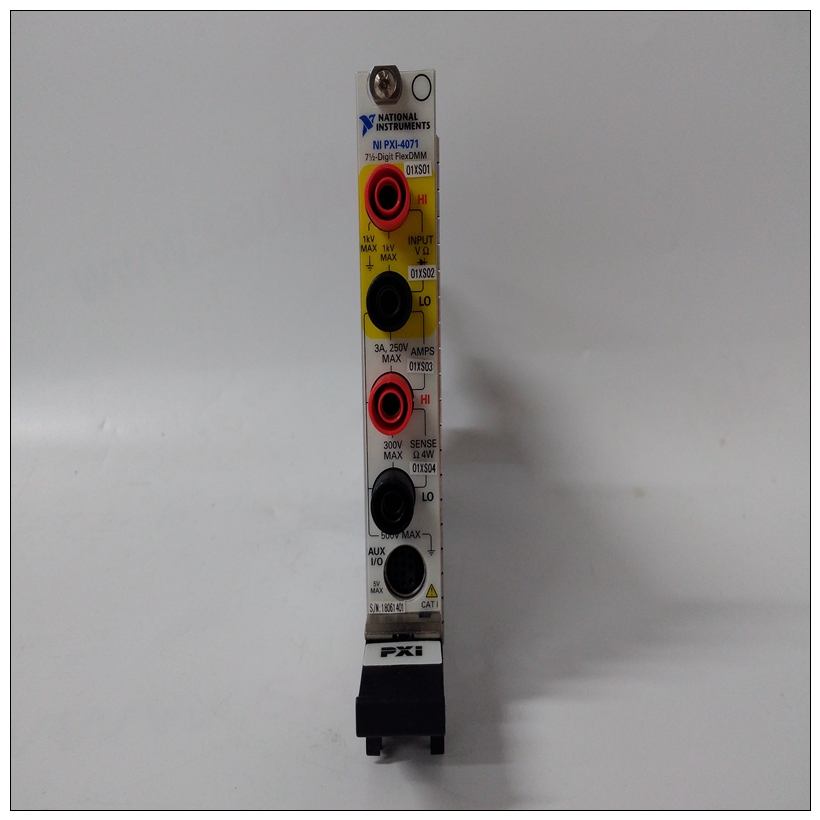

NI PXI-4071數字萬用表,PXI-4071中文PDF使用手冊
MVME2603/2604提供異步（端口1和2）和同步/異步（端口3和4）串行連接。對于MVME761兼容版本的基板，異步接口由一對DB9連接器（COM1和COM2）實現位于MVME761過渡模塊上。引腳分配為如下表所示。串行端口3和4對于與MVME761兼容的基板版本端口3和4的同步/異步接口由一對HD26連接器（J7和J8），位于過渡模塊。
NI PXI-4071數字萬用表串行端口3和4的引腳分配如所示下表。并聯連接器兩種版本的基板都提供并行輸入/輸出連接。對于MVME761兼容機型，并行接口采用一個IEEE P1284 36針連接器（J10），位于MVME761上過渡模塊。下表列出了引腳分配以太網10BaseT/100BaseTX連接器MVME2603/2604同時提供AUI和10BaseT/100BaseTX LAN連接。對于MVME761兼容基板，LAN接口為用標準RJ-45實現的10BaseT/100BaseTX連接插座位于MVME761過渡模塊上。引腳分配如下表所示。有關各種互連信號的詳細描述，請參閱MVME2603/2604的支持信息文檔包SBC或過渡模塊的支持信息部分必要時提供文件。概述PowerPC調試器PPCBug是一個強大的評估和調試工具用于圍繞摩托羅拉PowerPC微型計算機構建的系統的工具。設備可用于加載和執行以下用戶程序：完成操作員控制以進行系統評估。PowerPC調試器提供了高度的功能和用戶體驗友好，但強調便攜性和易于維護。它實現了良好的可移植性和可理解性，因?yàn)樗蔷帉懙耐耆褂肅編程語言，除非需要使用匯編函數。
PPCBug包括顯示和修改內存的命令，斷點和跟蹤功能，強大的匯編和反匯編程序用于修補程序，以及“通電自檢”功能驗證主CPU板的完整性。
The MVME2603/2604 provides both asynchronous (ports 1 and 2) and
synchronous/asynchronous (ports 3 and 4) serial connections. For the
MVME761-compatible versions of the base board, the asynchronous
interface is implemented with a pair of DB9 connectors (COM1 and COM2)
located on the MVME761 transition module. The pin assignments are
listed in the following table.Serial Ports 3 and 4
For MVME761-compatible versions of the base board, the
synchronous/asynchronous interface for ports 3 and 4 is implemented with
a pair of HD26 connectors (J7 and J8) located on the front panel of the
transition module. The pin assignments for serial ports 3 and 4 are listed in
the following table.Parallel Connector
Both versions of the base board provide parallel I/O connections. For
MVME761-compatible models, the parallel interface is implemented with
an IEEE P1284 36-pin connector (J10) located on the MVME761
transition module. The pin assignments are listed in the following tableEthernet 10BaseT/100BaseTX Connector
The MVME2603/2604 provides both AUI and 10BaseT/100BaseTX LAN
connections. For MVME761-compatible base boards, the LAN interface is
a 10BaseT/100BaseTX connection implemented with a standard RJ-45
socket located on the MVME761 transition module. The pin assignments
are listed in the following table.
For detailed descriptions of the various interconnect signals, consult the
support information documentation package for the MVME2603/2604
SBC or the support information sections of the transition module
documentation as necessary.Overview
The PowerPC debugger, PPCBug, is a powerful evaluation and debugging
tool for systems built around Motorola PowerPC microcomputers.
Facilities are available for loading and executing user programs under
complete operator control for system evaluation.
The PowerPC debugger provides a high degree of functionality and user
friendliness, and yet stresses portability and ease of maintenance. It
achieves good portability and comprehensibility because it was written
entirely in the C programming language, except where necessary to use
assembler functions.
PPCBug includes commands for display and modification of memory,
breakpoint and tracing capabilities, a powerful assembler and disassembler
useful for patching programs, and a "self-test at power-up" feature which
verifies the integrity of the main CPU board.
