IC698CPE040-JP中文PDF用戶手冊,GE燃機模塊

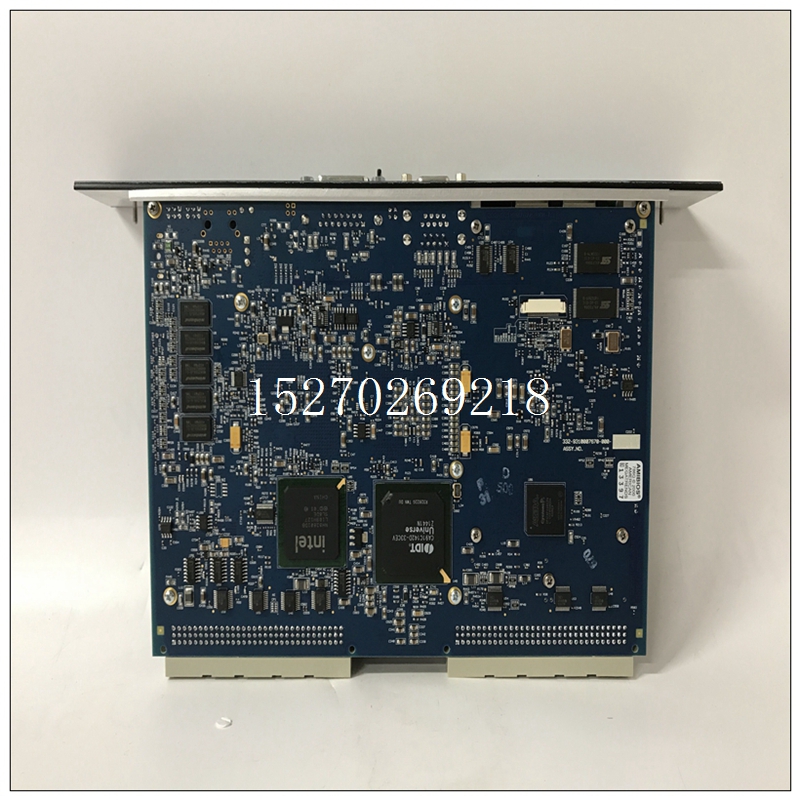

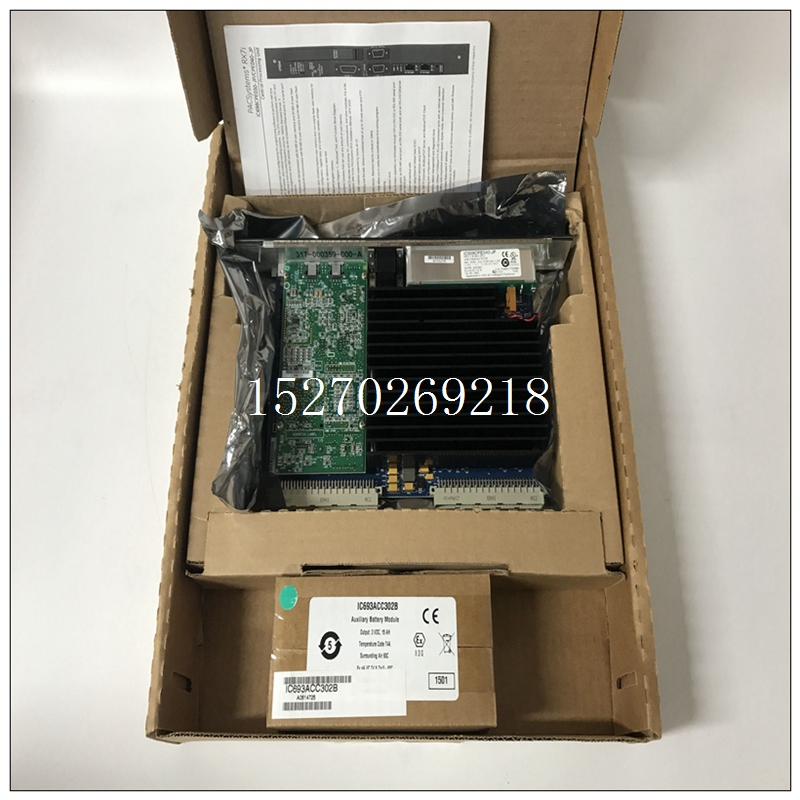

RX7i CPU由編程軟件編程和配置，以實時執行機器、過程和物料處理系統的控制。CPU與輸入/輸出和使用VME64標準格式的機架安裝背板上的智能選件模塊。它通過嵌入式以太網端口或串行端口與程序員和HMI設備通信使用SNP從屬協議。
CPE030:600MHz奔騰M微處理器，64 MB用戶內存和64 MB用戶閃存
CPE040:1800MHz奔騰M微處理器，64 MB用戶內存和64 MB用戶閃存
特征
IC698CPE040-JP中文PDF用戶手冊? 每個包含64 MB電池支持的用戶內存和非易失性閃存用戶內存，用于用戶數據（程序、配置、寄存器數據和符號變量）存儲。
? 通過參考表%W訪問大容量?jī)?nèi)存。
? 可配置數據和程序內存。
? 用梯形圖、C、結構化文本和功能框圖編程。
? 自動定位的符號變量，可以使用任何數量的用戶內存。
? 支持90-70系列離散和模擬輸入/輸出、通信和其他模塊。對于列表關于支持的模塊，請參閱PACSystems RX7i安裝手冊GFK-2223。
? 支持Series 90-70支持的所有VME模塊。
? 通過web進行Rx7i數據監控。允許總共最多16個web服務器和FTP連接。
? 最多512個程序塊。塊的最大大小為128KB。
? 測試編輯模式，允許您輕松測試對正在運行的程序的修改。? 字內位引用
? 電池供電的日歷時鐘。
? 通過Winloader通過CPU的RS-232或RS-485串行端口升級CPU和模塊固件。

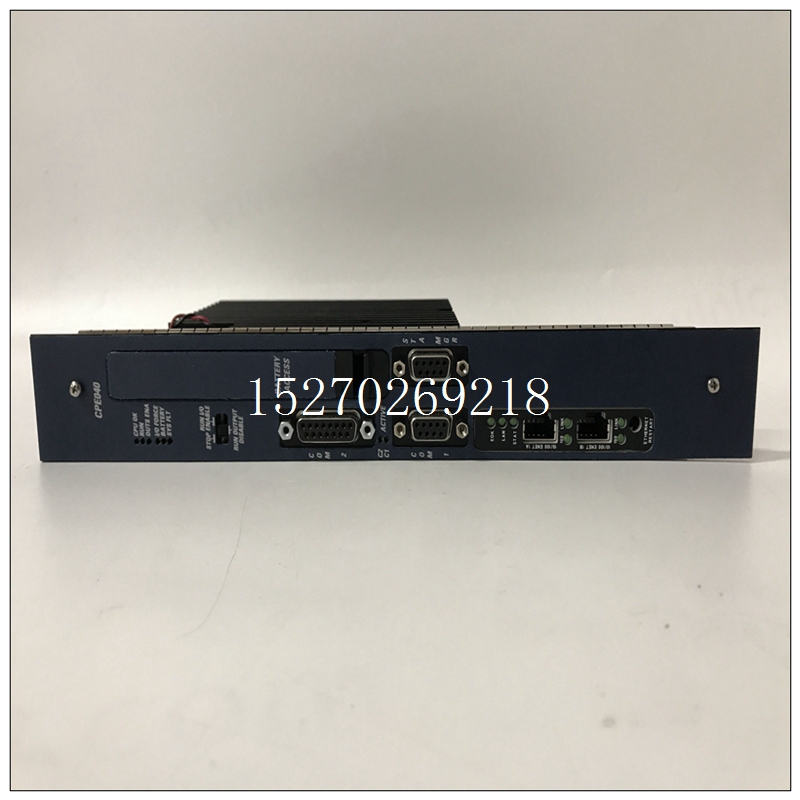

? 三個隔離的串行端口：一個RS-485串行端口、一個RS-232串行端口和一個RS-232以太網station manager串行端口。
? 嵌入式以太網接口，具有：
? 使用以太網全局?jǐn)?shù)據（EGD）進行數據交換
? 使用SRTP的TCP/IP通信服務
The RX7i CPUs are programmed and configured by the programming software to perform real time
control of machines, processes, and material handling systems. The CPU communicates with I/O and
smart option modules over a rack-mounted backplane using the VME64 Standard format. It
communicates with the programmer and HMI devices via the embedded Ethernet ports or a serial port
using SNP Slave protocol.
CPE030: 600MHz Pentium-M microprocessor with 64 MB of user memory and 64 MB of user flash
CPE040: 1800MHz Pentium-M microprocessor with 64 MB of user memory and 64 MB of user flash
Features
? Contains 64 Mbytes each of battery-backed user memory and non-volatile flash user memory for
user data (program, configuration, register data, and symbolic variable) storage.
? Access to bulk memory via reference table %W.
? Configurable data and program memory.
? Programming in Ladder Diagram, C, Structured Text, and Function Block Diagram.
? Auto-located Symbolic Variables that can use any amount of user memory.
? Support for Series 90-70 discrete and analog I/O, communications, and other modules. For a list
of modules supported, refer to the PACSystems RX7i Installation Manual, GFK-2223.
? Support for all VME modules supported by Series 90-70.
? Rx7i data monitoring over the web. Allows a combined total of up to 16 web server and FTP
connections.
? Up to 512 program blocks. Maximum size for a block is 128KB.
? Test Edit mode that allows you to easily test modifications to a running program.
? Bit-in-word referencing
? Battery-backed calendar clock.
? CPU and module firmware upgrades via Winloader through CPU’s RS-232 or RS-485 serial port.
? Three isolated serial ports: an RS-485 serial port, an RS-232 serial port, and an RS-232 Ethernet
station manager serial port.
? An embedded Ethernet interface with:
? Data exchange using Ethernet Global Data (EGD)
? TCP/IP communication services using SRTP
