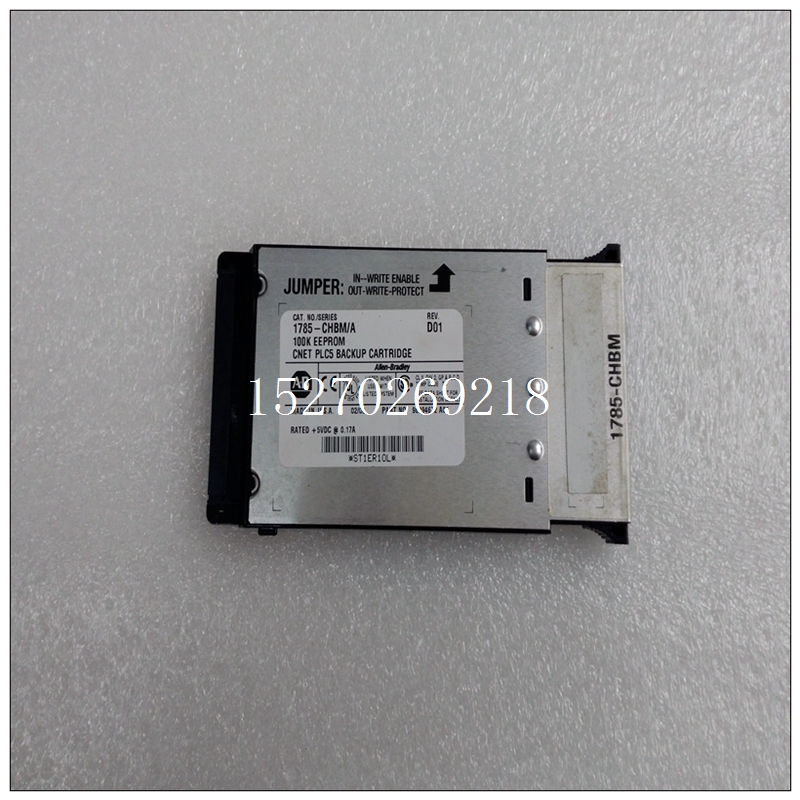

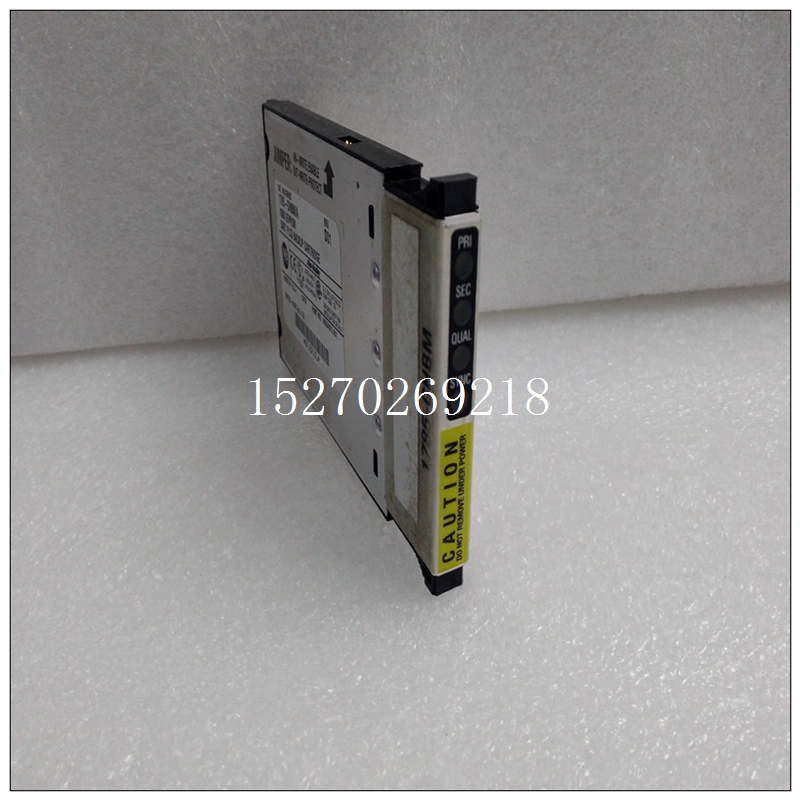

1785-CHBM模塊,1785-CHBM產品顏色現場總線技術 NA-PLC采用現場總線網絡，除具有通信速率快、抗干擾能力強、成本低、結構簡單、實時性好等特點，還具有很好的擴展性，易于實現模塊的靈活配置，大大提高了對現場環境及安裝要求的適應性。? 全智能I/O設計和一系列安全性、可靠性設計為系統的安全可靠運行提供了保障① 數字量輸入模塊的通道全部采用光電隔離，同時具有軟件濾波功能，每一通道可以設置相應的濾波時間，可以有效地避免因現場信號抖動而產生的誤動作信號；
1785-CHBM模塊② 數字量輸出模塊采用輸出回路密碼鎖設計，通過模塊的反讀、校核及執行的聯合控制保證在任何情況下不會發生誤動。由于模塊本身具有CPU可以實現精確的脈沖型輸出脈寬的控制，和其它通用PLC不同，NA- PLC的脈沖寬度控制是由模塊來控制的，CPU模塊將動作信息和動作時間發送到輸出模塊，輸出模塊完成輸出動作及動作時間的控制；③ 模擬量采集采用了飛度電容的設計方法，保證了內部電路和外界干擾的絕對隔離，大大提高了采集精度，最大限度地降低了模擬量漂移；④ 溫度量模塊設計突破了常規溫度量模塊所有通道共用一路恒流源的設計，采用了先進的每路獨立恒流源設計，因此有效地避免了因一路信號干擾過大而使其它各路產生串?dāng)_的問題，從而大大提高了采集速度和抗干擾性。系統功能設計① 上位機利用組態軟件編制相應的程序，實現對工藝流程圖和測量數據的顯示，通過上位機由人工選定其操作的方式即自動手動、自動集控、手動操作。② 自動手動就是利用鼠標起動\停止單個的可控設備； ③ 手動操場利用現場操作臺上的按鈕起動\停止單個的可控設備；④ 自動集控就是整個控制系統從起動、運行、停止及運行過程中的故障報警、保護停機等整個過程的自動運行及在線監視。3.1 NA400PLC軟件設計 程序控制系統的軟件設計采用梯形圖，并采取了模塊化的設計方式，把整個控制系統所需要完成的功能分成若干模塊，然后分別進行設計，這樣做的優點是設計方便，便于修改程序，使得程序條理清晰。① 自動集控功能模塊設計② 自動手動功能模塊設計③ 模擬量處理模塊設計④ 與組態王通訊模塊設計⑤ 報警模塊設計3.2 組態王軟件設計 組態王軟件包由TOUCHEXPLORER、TOUCHVIEW、DDE服務程序等主要部分組成，分別負責系統工程的建立、操作畫面的制作，操作畫面的運行，以及系統中NAPLC和組態王之間的數據通訊。
principle
1: Open the positive and negative pressure laminating machine, and then put in the door plate with film.
2: After pressing the automatic button, the upper cover of the machine is closed, and then the safety pin is locked. In this closed space, it starts to heat, start to inhale under positive pressure, and start to deflate under negative pressure.
3: At this time, the silica gel mold began to squeeze the door panel to achieve the effect of coating.
4: After baking for a period of time, the positive pressure and negative pressure begin to deflate. After a period of time or when the air pressure is the same as the external air pressure, the safety is opened and the upper cover of the machine is opened.
3、 Program introduction
1. Operation screen: This screen mainly displays PLC IO status and start / stop of automatic screen. Automatic start, click start, the box starts to close, and then the safety cylinder is closed. After a period of time, the suction of positive pressure and negative pressure starts. After a period of time, the suction of positive pressure and negative pressure stops, and the positive
