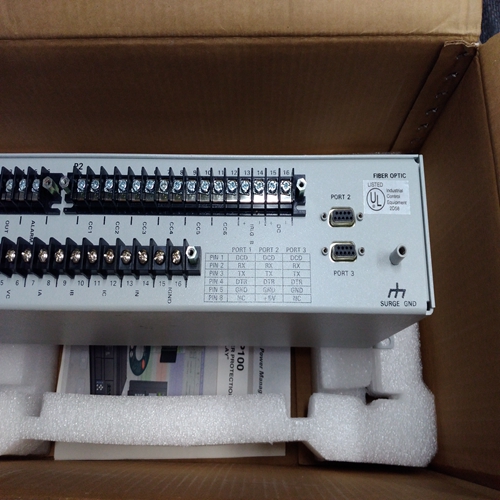

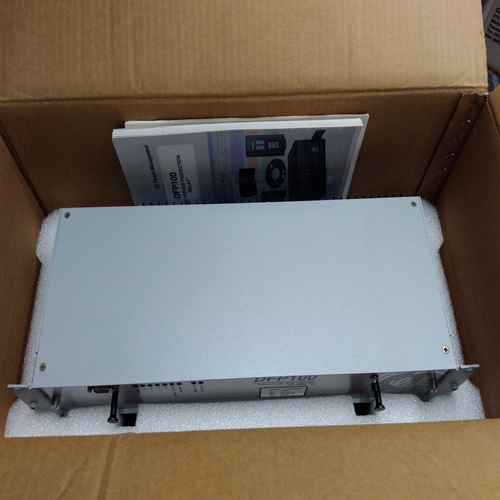

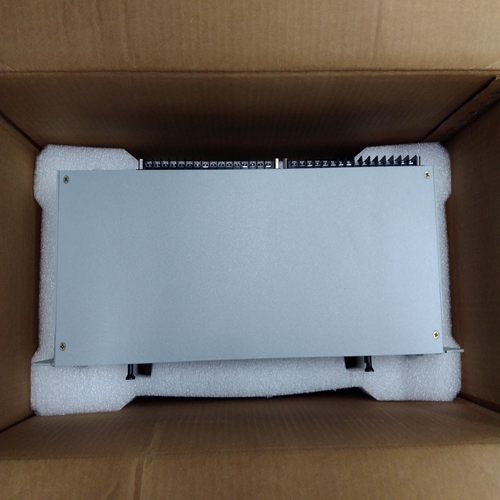

GE DFP100控制器
負載增益調整對于該程序，發電機必須同步運行，而不是平行。將直流電壓表連接到端子11（–）和13（+）之間進行測量負載信號電壓。
啟動原動機并施加全負荷。測量負載信號電壓和將負載增益電位計調整為6.0 V.*如果無法獲得全負載，與負載成比例地減小負載增益。例如，在50%負載下將負載增益調整為3 V。
當在同步模式下或在隔離母線上并聯時，發電機速度必須相同。如果它們不相等，則不會保持負載共享與負載變化成比例。機組之間的任何負載差異可能是：通過調整負載增益電位計進行校正。增加負載增益（順時針轉動電位計）將使發電機承載更少的負載。
如果在特定負載信號電壓下并聯時出現穩定性問題，通過降低負載增益來降低電壓（轉動電位計逆時針），并降低所有其他的負載信號電壓設置系統中的發電機電壓相同。當負載信號電壓系統中的所有發電機減少、負載分配增益減小，并且這可能導致負載分擔靈敏度的一些損失。從端子8和9上拆下A相CT導線，然后連接該相連接到產生最高正負載信號的一對端子的導線電壓和產生最高正負載信號的極性電壓19.解開并斷開B相CT導線。連接B相CT將導線連接到負載上剩余兩對CT輸入端子中的一對傳感器20.施加全負荷并測量負荷信號。
啟動新列表并記錄電壓21.卸載系統，并反轉系統上的B相CT導線終端*
22.施加全負載，測量負載信號，并記錄該電壓。
3.卸載系統，拆下B相CT導線，并將其連接到另一對端子*
24.施加全負載，測量負載信號，并記錄該電壓。
25.卸載系統并反轉系統上的B相CT導線終端*
26.施加全負載并測量負載信號。記錄該電壓，以及比較列表中的四個電壓。
27.卸載系統。拆下B相CT導線并將其連接到產生最高正負載信號的一對CT輸入端子電壓和產生最高正負載信號的極性電壓解開并斷開C相CT導線。將這兩條導線連接到其余一對CT輸入端子。
29.施加全負載，測量負載信號，并記錄該電壓。
30.卸載系統并反轉系統上的C相CT導線終端*
31.施加全負載，測量負載信號，并記錄該電壓。
32.卸載并關閉系統。比較兩個電壓*
33.將C相CT導線連接到同一對CT輸入端子，但在產生最高正負載信號電壓的極性。
34.用當前端子的相位名稱重新標記每條導線連接到。
35.拆下負載電阻器和接線盒。*-如果臨時負載電阻不使用。
Load Gain Adjustment
For this procedure, the generator must be running isochronously and not
paralleled. Connect a dc voltmeter across terminals 11 (–) and 13 (+) to measure
the load-signal voltage.
Start the prime mover and apply full load. Measure the load signal voltage and
adjust the LOAD GAIN potentiometer for 6.0 V. * If full load is not obtainable,
decrease the LOAD GAIN proportionally to the load. For example, at 50% load
adjust the LOAD GAIN to 3 V.
When paralleled in the isochronous mode or on an isolated bus, generator
speeds must be the same. If they are not equal, load sharing will not remain
proportional as the load varies. Any difference in loads between the units can be
corrected by adjusting the Load Gain Potentiometer. Increasing the LOAD GAIN
(turning the potentiometer clockwise) will cause that generator to carry less load.
If stability problems occur when paralleled at a particular load-signal voltage,
reduce the voltage by reducing the LOAD GAIN (turn the potentiometer
counterclockwise), and reduce the load-signal voltage setting of all other
generators in the system to the same voltage. When the load-signal voltages of
all generators in a system are reduced, the load-sharing gain will be reduced,
and this may result in some loss of load-sharing sensitivity. Remove the phase A CT wires from terminal 8 and 9 and connect the phase
A wires to the pair of terminals that produced the highest positive load-signal
voltage and in the polarity that produced the highest positive load-signal
voltage.
19. Untape and disconnect the phase B CT wires. Connect the phase B CT
wires to one pair of the two remaining pair of CT input terminals on the load
sensor.
20. Apply full load and measure the load signal. Start a new list and record this
voltage.
21. Unload the system, and reverse the phase B CT wires on the same
terminals. *
22. Apply full load, measure the load signal, and record this voltage.
23. Unload the system, remove the phase B CT wires, and connect them to the
other pair of terminals. *
24. Apply full load, measure the load signal, and record this voltage.
25. Unload the system and reverse the phase B CT wires on the same
terminals. *
26. Apply full load and measure the load signal. Record this voltage, and
compare the four voltages on the list.
27. Unload the system. Remove the phase B CT wires and connect them to the
pair of CT input terminals that produced the highest positive load signal
voltage and with the polarity that produced the highest positive load signal
voltage. Untape and disconnect the phase C CT wires. Connect these two wires to
the remaining pair of CT input terminals.
29. Apply full load, measure the load signal, and record this voltage.
30. Unload the system and reverse the phase C CT wires on the same
terminals. *
31. Apply full load, measure the load signal, and record this voltage.
32. Unload and shut down the system. Compare the two voltages. *
33. Connect the phase C CT wires to the same pair of CT input terminals, but in
the polarity that produced the highest positive load-signal voltage.
34. Re-label each wire with the phase designation of the terminal that it is now
connected to.
35. Remove the burden resistors and terminal block.
*—Be sure to shut down the prime mover if the temporary burden resistors
are not used.
