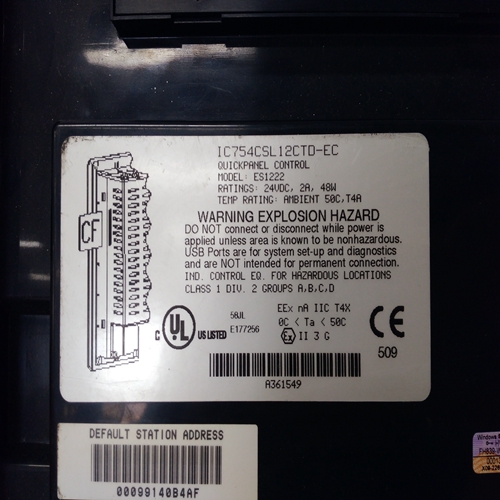

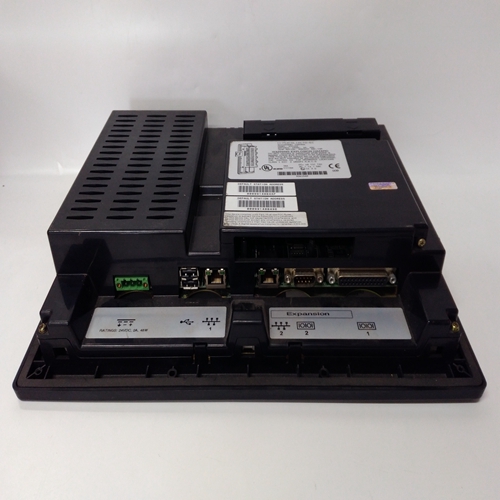

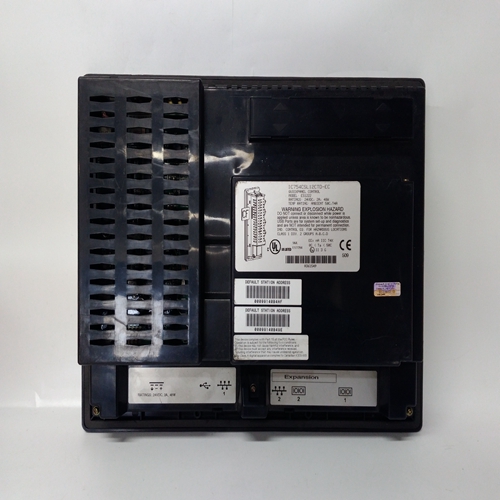

IC754CSL12CTD工控顯示屏
這些操作說明適用于一般用途的設施無工程鑰匙的系統操作和詢問適合。
可能影響系統運行方式的設施包括在工程師操作說明第7章，涉及設施
安裝工程鑰匙時可用。用戶操作例程
根據所操作的鍵盤功能按鈕，可以執行以下用戶操作例程：信道復位。
頻道選擇。查看報警級別。
催化傳感器電流檢查。傳感器信號監控。
接受更新警報。查看時鐘/日歷。
啟動維護記錄打印輸出。
通道復位和選擇由通道卡復位執行/在執行其余功能時選擇按鈕，
使用工程卡選擇通道控制卡時按鈕控制。
在任何時間和同時只能選擇一個通道卡選擇其微處理器監控工程卡按鈕功能，以確定應采取的行動?？刂瓶?.1重置
要重置通道控制卡，請短按并釋放其前面板復位/選擇按鈕。
這將：a、 重置與控制相關的所有鎖定和非激活報警卡片
b、 取消所有鎖定和非活動警告消息。
c、 重置峰值讀數顯示。
d、 如果存在更新條件，則確認更新條件。
3.2重置TWA計算和最大/最小值
最大/最小信號值、STEL和LTEL值以及時間按下并按住可將計算重置為零
所需的通道卡復位/選擇按鈕大約五秒鐘。在此期間，所選圖標將開始閃爍
當閃爍停止時，復位完成。
3.3選擇
為工程控制的操作選擇通道卡卡，按住所需的通道卡復位/選擇按鈕約1.5秒，直到圖標顯示改變
從正常顯示到所選顯示，如下所示：選擇正常操作
3.4取消選擇要取消選擇選定的通道卡，請短按其前面板復位/選擇按鈕。
通道卡將被取消選擇，并且中的任何用戶操作
尚未確認的進度將被取消。應該是請注意，除非重置，否則不會重置通道卡/再次瞬時按下選擇按鈕。
GENERAL
These operating instructions refer to the facilities available for general
operation and interrogation of the system without the Engineering Key
fitted.
Facilities that may effect the way the system operates are covered in
the Engineer's Operating Instructions Chapter 7 which refers to facilities
available when the Engineering Key is fitted.USER OPERATING ROUTINES
Depending upon which keypad function push-buttons are operated,
the following user operating routines may be performed:
Channel reset.
Channel select.
View alarm levels.
Catalytic sensor current check.
Sensor signal monitoring.
Accept an update alarm.
View clock/calendar.
Initiate a maintenance record printout.
Channel reset and select are performed by the channel card RESET/
SELECT push-button while the remaining functions are performed,
when a channel control card is selected using the Engineering Card
push-button controls.
Only one channel card can be selected at any one time and while
selected its microprocessor monitors the Engineering Card pushbutton functions to determine what action should take place.CONTROL CARD
3.1 Reset
To reset a channel control card, briefly push and release its front panel
RESET/SELECT push-button.
This will:
a. Reset all latched and non-active alarms associated with the control
card.
b. Cancel all latched and non-active warning messages.
c. Reset the peak reading display.
d. Acknowledge an update condition should one be present.
3.2 Reset TWA Calculations and Max/Min Values
The max/min signal values, STEL and LTEL values, and time
calculations may be reset to zero by pushing and holding down the
required channel card RESET/SELECT push-button for approximately
five seconds. During this period the selected icon will start to flash on
and off, and when the flashing stops the reset is complete.
3.3 Select
To select a channel card for operations controlled from the Engineering
Card, push and hold the required channel card RESET/SELECT pushbutton for approximately 1.5 seconds until the icon display changes
from the normal display to the selected display as shown below:
Normal Operation Selected
3.4 Deselect
To deselect a selected channel card, briefly push its front panel
RESET/SELECT push-button.
The channel card will be deselected and any user operations in
progress which have not been confirmed will be cancelled. It should be
noted that the channel card will not be reset unless the RESET/
SELECT push-button is again momentarily pushed.
