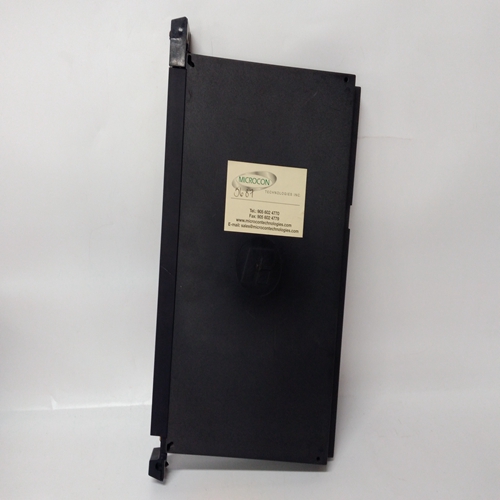

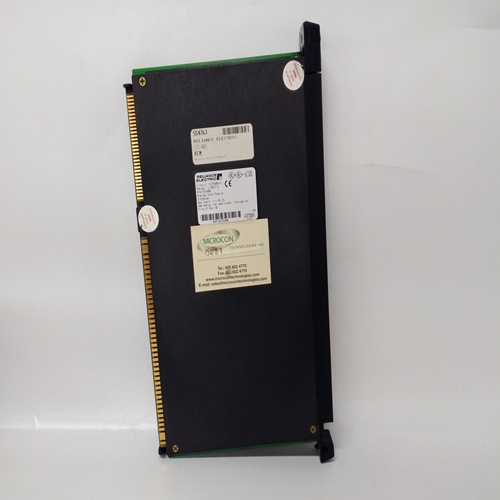

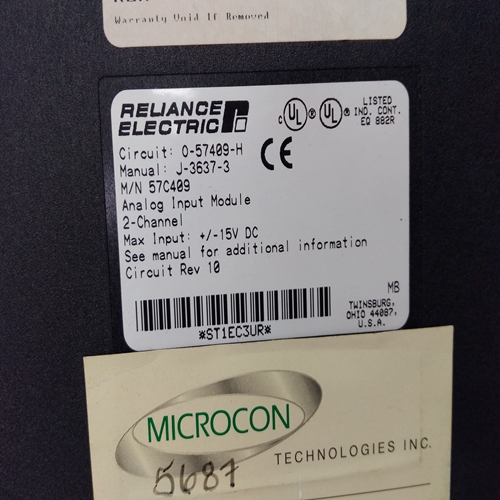

Reliance 57C409工業模塊
解鎖工程卡
要解鎖工程卡，請將工程鑰匙插入
工程卡前面板插座。工程卡解鎖
LED（）將點亮以指示其已解鎖。
外部工程
工程鍵港口城市
注意：插入然后移除工程鍵將重置
工程卡通信故障警告指示。
選定的卡操作
在所選控制卡上執行的操作由以下步驟選擇：
按下以下工程卡控制按鈕之一：
選擇操作后，有四個控制按鈕
可用于根據需要操縱操作。
這些是：
a、 向上按鈕，可用于提升選定的控制卡指示值。如果保持在操作位置，則顯示將每0.5秒增加一個單位。
b、 向下按鈕，可用于降低選定的
控制卡指示值。如果保持在操作位置，則顯示將每0.5秒減少一個單位。
c、 接受按鈕，可用于接受所選
控制卡顯示的值，并將其作為一部分永久存儲
配置的。將控制卡返回到選定的模式
d、 拒絕按鈕，可用于拒絕所選
控制卡顯示的值并返回到以前的設置值。
將控制卡返回到所選模式。
通道抑制
按下“工程卡禁止”按鈕可切換選定的控制卡禁止模式在on和off之間。
當抑制模式設置為on時，無論是本地還是工程卡或遠程通過遠程禁止輸入，所選控制卡：
a、 禁用繼電器（如安裝）啟動。
b、 禁止LED點亮。
c、 其余繼電器鎖定在其非活動狀態。
d、 A1、A2和A3報警LED繼續正常工作并反射通道的當前狀態。
e、 如果頻道是主/分區或投票報警的參與者功能，控制卡報警也將從主設備中排除，區域或投票報警功能。
要選擇抑制功能，請按以下步驟進行：
（1） 將工程鑰匙插入工程卡前面板插座并檢查解鎖的LED（）是否點亮。
（2） 按住所需的控制卡復位/選擇按鈕約1.5秒，并檢查所選控制卡通過顯示select（選擇）來表示已選擇偶像
（3） 按下抑制按鈕以切換抑制模式開/關。
UNLOCKING THE ENGINEERING CARD
To unlock the Engineering Card, plug the Engineering Key into the
Engineering Card front panel socket. The Engineering Card Unlocked
LED ( ) will illuminate to indicate that it is unlocked.
External Engineering
Engineering Key
Port
Note: Inserting and then removing the Engineering Key resets the
Engineering Card communications failure warning indication.
SELECTED CARD OPERATIONS
The operation to be carried out on the selected control card is chosen by
pushing one of the following Engineering Card control push-buttons:
Once an operation has been selected, there are four control push-buttons
which may be used to manipulate the operation as required. These are:
a. The up push-button, which may be used to raise the selected
control card indicted value. If held in the operated position, the
display will be increased by one unit every 0.5 seconds.
b. The down push-button, which may be used to lower the selected
control card indicated value. If held in the operated position, the
display will be decreased by one unit every 0.5 seconds.
c. The accept push-button, which may be used to accept the selected
control card displayed value and store this permanently as part
of the configuration. Returns the control card to the selected
mode.
d. The reject push-button, which may be used to reject the selected
control card displayed value and return to the previous set value.
Returns the control card to the selected mode.
CHANNEL INHIBIT
Pushing the Engineering Card INHIBIT push-button toggles the selected
control card inhibit mode between on and off.
When the inhibit mode is set to on, either locally from the Engineering
Card or remotely by the Remote Inhibit input, the selected control card:
a. inhibit relay, if fitted, is actuated.
b. INHIBIT LED is illuminated.
c. remaining relays are locked in their non-active state.
d. A1, A2 and A3 alarm LEDs continue to operate as normal and reflect
the current status of the channel.
e. If the channel is a participant in a master/zoned or voted alarm
function, the control card alarm will also be excluded from the master,
zone or voted alarm function.
To select the inhibit function, proceed as follows:
(1) Plug the Engineering Key into the Engineering Card front panel
socket and check that the Unlocked LED ( ) is illuminated.
(2) Push and hold the required control card RESET/SELECT pushbutton for approximately 1.5 seconds and check that the selected
control card indicates it has been selected by displaying the select
icon.
(3) Push the INHIBIT push-button to toggle the inhibit mode on/off.
