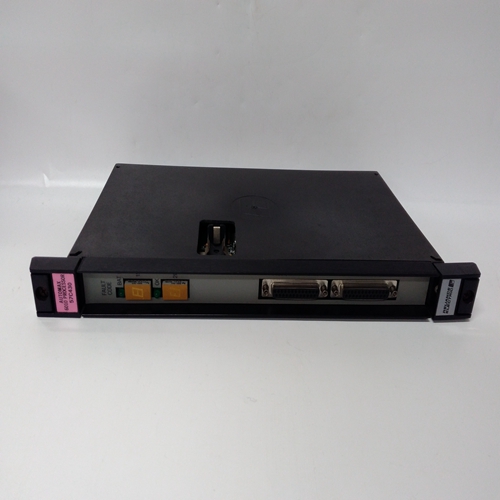

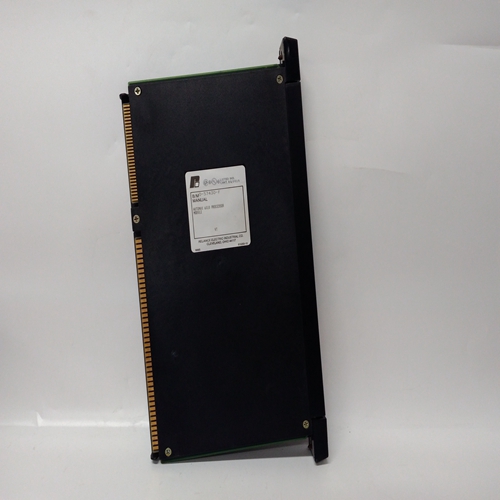

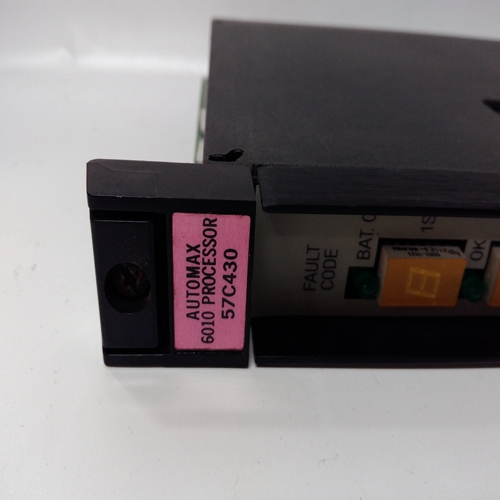

RELIANCE 57C430工控模塊
報警狀態字如下所示。報警激活時，A_=1未確認報警時，N_=1
報警啟用時E_=1（報警禁用時，E、N和A位設置為0）
OS=1表示所有報警均被標識為“停止服務”，這意味著所有報警功能正常，但
OS標志向更高級別的設備指示可以忽略它們。無法在本地設置操作系統。
CC=1表示發生了配置更改。它可以通過寫命令復位。
AE=1表示循環內存在活動事件。當所有循環事件清除時，它將清除。
當事件發生且循環中至少有一個尚未確認時，NA將設置為1。可能是重置為0，這將確認循環中的所有事件，或者當0時，將指示所有活動事件已發生確認3.2.14 AOE_模擬輸出-以太網（V2.4）
AOE_功能塊在以下情況下可用：
安裝了以太網通信板。最多32個AOE塊可用，并按順序分配給每個塊使用，全站性。
范圍指針參數（輸入R）使塊能夠：
將范圍縮放傳遞給其他中的AIE功能塊
通過以太網連接的Moore和Procidia控制器網絡
3.2.15 AOL_-模擬輸出-LIL AOL_功能塊在可選LIL已安裝通信板。他們啟用了該站提供LIL全局輸出，作為來自另一個功能塊的互連。AOL區塊編號按每次使用、站的順序分配
寬的配置需要輸入LIL要分配數據的信道號。這個范圍指針參數（輸入R）使塊能夠：按標準$80-$F80縮放LIL全局輸出（GO）范圍，用于輸入S的范圍。如果指針不是配置后，該值將縮放為0.00到100.00。
AOP_功能塊轉換功能塊互連信號，輸入S，輸出為綁定到上的節點中的網絡變量具有SNVT（標準）的LonWorks網絡lev_percent的網絡變量類型。最大值可以使用25個AOP塊中的一個，最多可使用節點
在Lon網絡上允許，或內存限制為控制器。塊的每次使用將分配一個唯一的全站ID（如AOP13）。這些街區
當LonWorks選項板為安裝在352P、353或354N控制器中。
范圍指針參數（輸入R）告訴
獲取信號范圍的功能塊
縮放信息。未配置的范圍指針將使用0.00到100.00的默認范圍
以SNVT_ lev_。NV NUM參數
啟用查看輸出變量編號。當使用遠程PC網絡管理器進行綁定時，可能需要此功能
此輸出帶有遠程節點中的網絡變量。
塊輸出QS指示Lon輸出的質量狀態，當輸出為壞時將變高
質量質量差通常表示LonWorks網絡內的通信丟失。
An alarm status word is shown below.
A_=1 when the alarm is active
N_=1 when the alarm is Not acknowledged
E_=1 when the alarm is enabled (when the alarm is disabled the E, N, and A bits are set to 0)
OS=1 indicates that all alarms are identified as Out of Service which means that all alarms function normally but the
OS flag indicates to a higher level device that they can be ignored. OS cannot be set locally.
CC=1 indicates a configuration change has occurred. It can be reset by a write command.
AE=1 indicates an Active Event is present within the loop. It will clear when all the loop events clear.
NA will be set to 1 when events occur and at least one within the loop has not yet been acknowledged. It can be
reset to 0 which will acknowledge all events within the loop or when 0 will indicate all active events have been
acknowledged 3.2.14 AOE_ - Analog Output- Ethernet (V2.4)
AOE_ function blocks are available when the optional
Ethernet communication board is installed. Up to 32 AOE
blocks are available and are assigned in sequence with each
use, station wide.
The range pointer parameter (Input R) enables the block to
pass the range scaling to AIE function blocks in other
Moore and Procidia controllers connected over the Ethernet
network.
3.2.15 AOL_ - Analog Output - LIL
AOL_ function blocks are available when the optional LIL
communication board is installed. They enable the station
to provide a LIL global output, received as an
interconnection from another function block. AOL block
numbers are assigned in sequence with each use, station
wide. The configuration requires the entry of a LIL
Channel number to which the data is to be assigned. The
range pointer parameter (input R) enables the block to
scale the LIL global output (GO), in the standard $80-$F80
range, for the range of input S. If the pointer is not
configured the value will be scaled as 0.00 to 100.00.
AOP_ function blocks convert a function block
interconnection signal, input S, to a output which is
bound to a network variable in a node on the
LonWorks network having a SNVT (Standard
Network Variable Type of lev_percent. A maximum
of 25 AOP blocks can be used, up to the limit of nodes
allowed on the Lon network or the memory limit of
the controller. Each use of the block will be assigned a
unique station wide ID (e.g. AOP13). These blocks
will be available when the LonWorks option board is
installed in a 352P, 353, or 354N controller.
The range pointer parameter (input R) tells the
function block where to obtain the signal’s range
scaling information. An unconfigured range pointer will use a default range of 0.00 to 100.00. The signal will be
scaled and transmitted on the network as a SNVT_lev_percent (SNVT #81) data type. The NV NUM parameter
enables viewing the output variable number. This may be needed when using a remote PC network manager to bind
this output with the network variable in a remote node.
The block output QS indicates the quality status of the Lon output and will go high when the output is of bad
quality. Bad quality usually indicates a loss of communications within the LonWorks network.
